Typical Performance Characteristics (continued)
All curves taken at V
IN
= 5V, V
BOOST
- V
SW
= 5V, L1 = 4.7 µH ("X"), L1 = 10 µH ("Y"), and T
A
= 25°C, unless specified
otherwise.

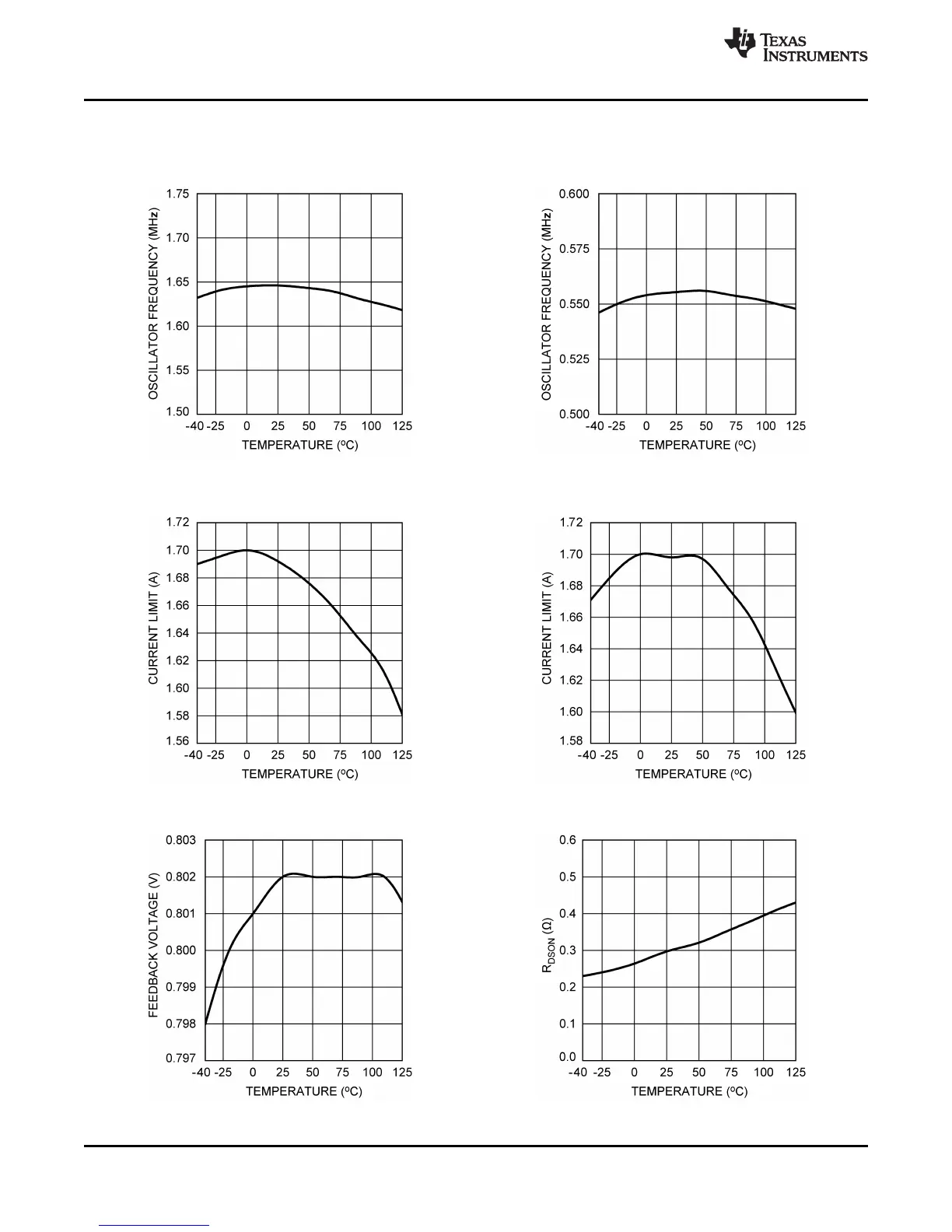

Oscillator Frequency vs Temperature - "X" Oscillator Frequency vs Temperature - "Y"
Figure 11. Figure 12.
Current Limit vs Temperature Current Limit vs Temperature
V
IN
= 5V V
IN
= 20V
Figure 13. Figure 14.
V
FB
vs Temperature R
DSON
vs Temperature
Figure 15. Figure 16.
