Texas Instruments LM2734 - Typical Performance Characteristics

LM2734
www.ti.com SNVS288I –SEPTEMBER 2004–REVISED APRIIL 2013
Typical Performance Characteristics
All curves taken at V
IN
= 5V, V
BOOST
- V
SW
= 5V, L1 = 4.7 µH ("X"), L1 = 10 µH ("Y"), and T
A
= 25°C, unless specified
otherwise.

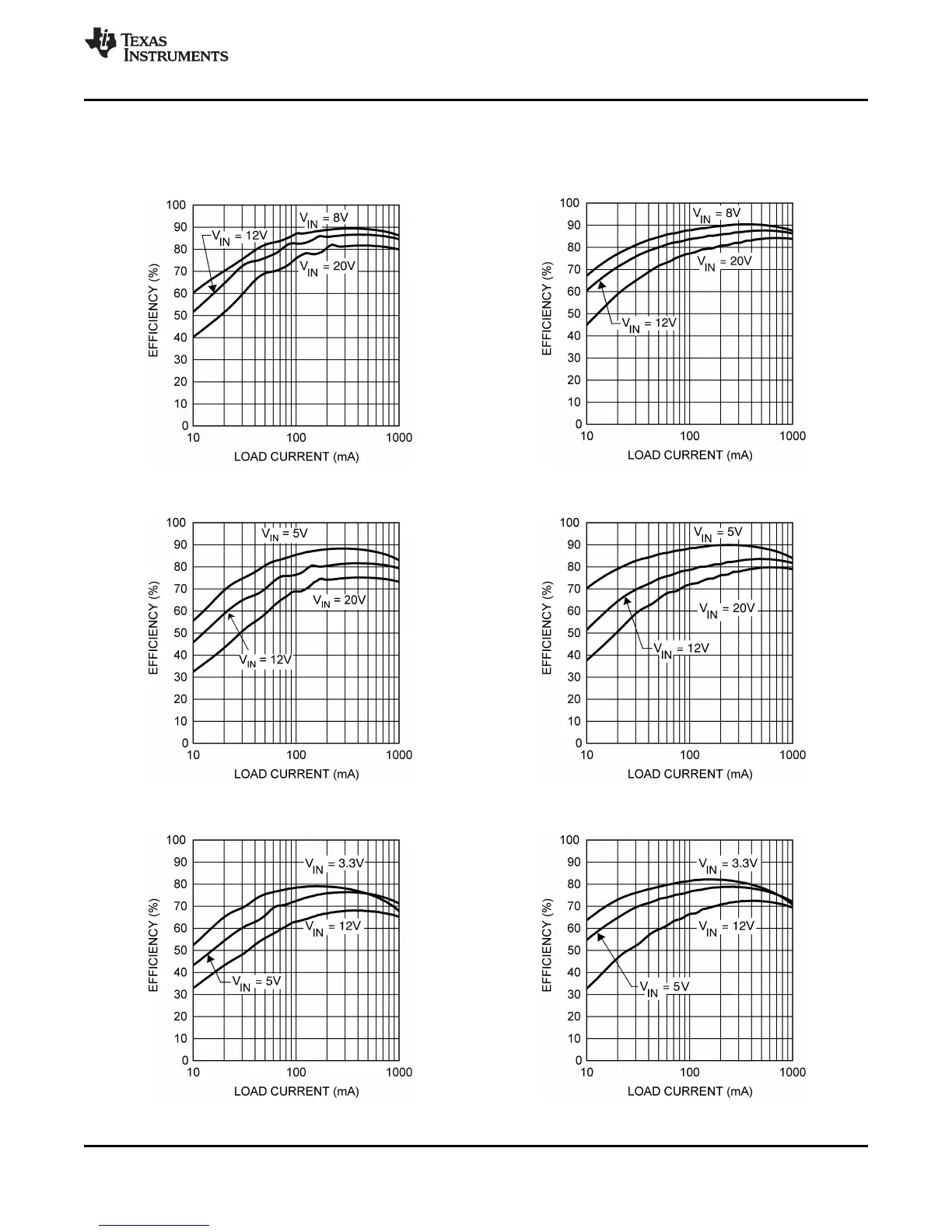

Efficiency vs Load Current - "X" V
OUT
= 5V Efficiency vs Load Current - "Y" V
OUT
= 5V
Figure 5. Figure 6.
Efficiency vs Load Current - "X" V
OUT
= 3.3V Efficiency vs Load Current - "Y" V
OUT
= 3.3V
Figure 7. Figure 8.
Efficiency vs Load Current - "X" V
OUT
= 1.5V Efficiency vs Load Current - "Y" V
OUT
= 1.5V
Figure 9. Figure 10.
