TPA3116D2 , TPA3118D2 , TPA3130D2
SLOS708G –APRIL 2012–REVISED DECEMBER 2017 www.ti.com
Product Folder Links: TPA3116D2 TPA3118D2 TPA3130D2
Submit Documentation Feedback Copyright © 2012–2017, Texas Instruments Incorporated
Layout Example (continued)

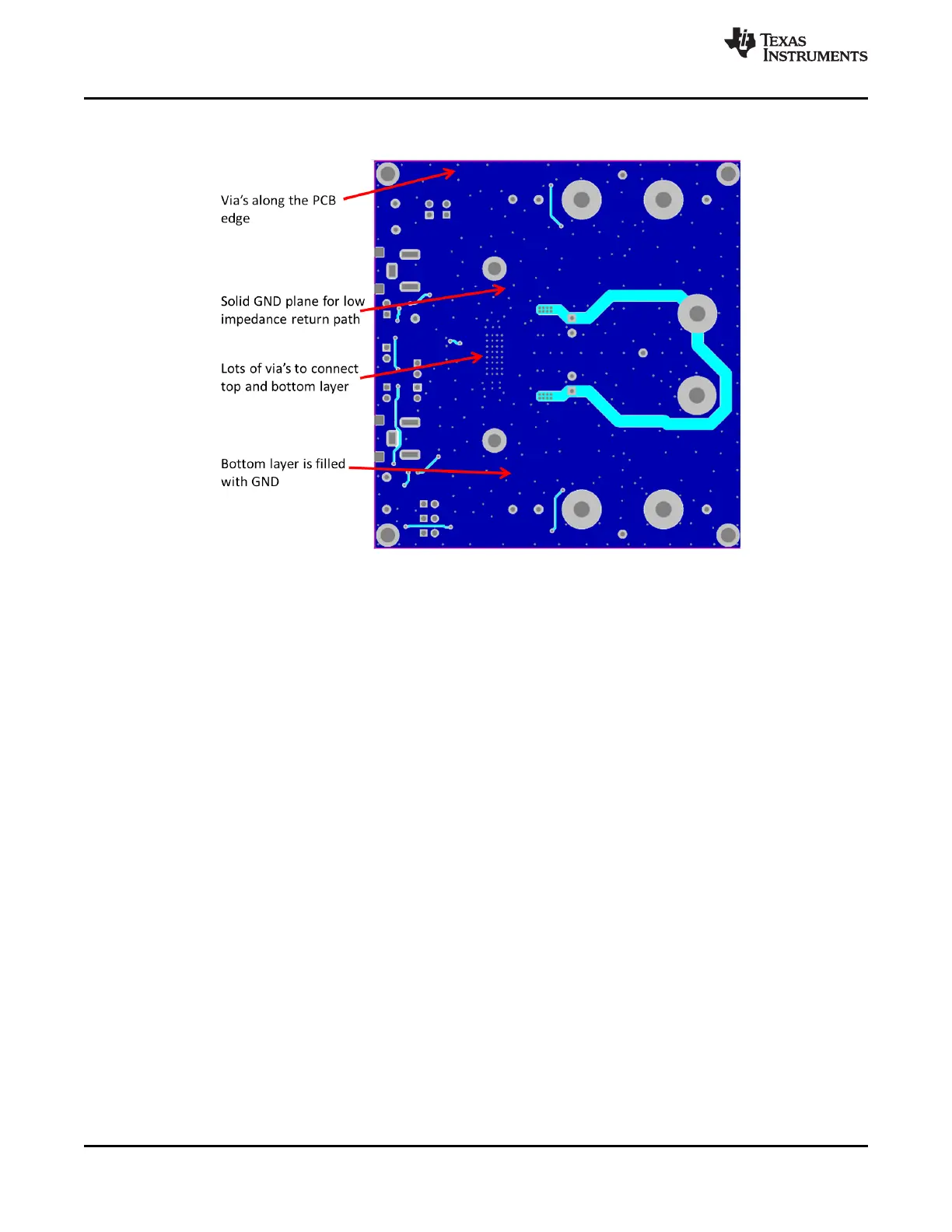

Figure 41. Layout Example Bottom
