Digital PFC Description www.ti.com
12.1.2 2-Phase PFC Block Diagram

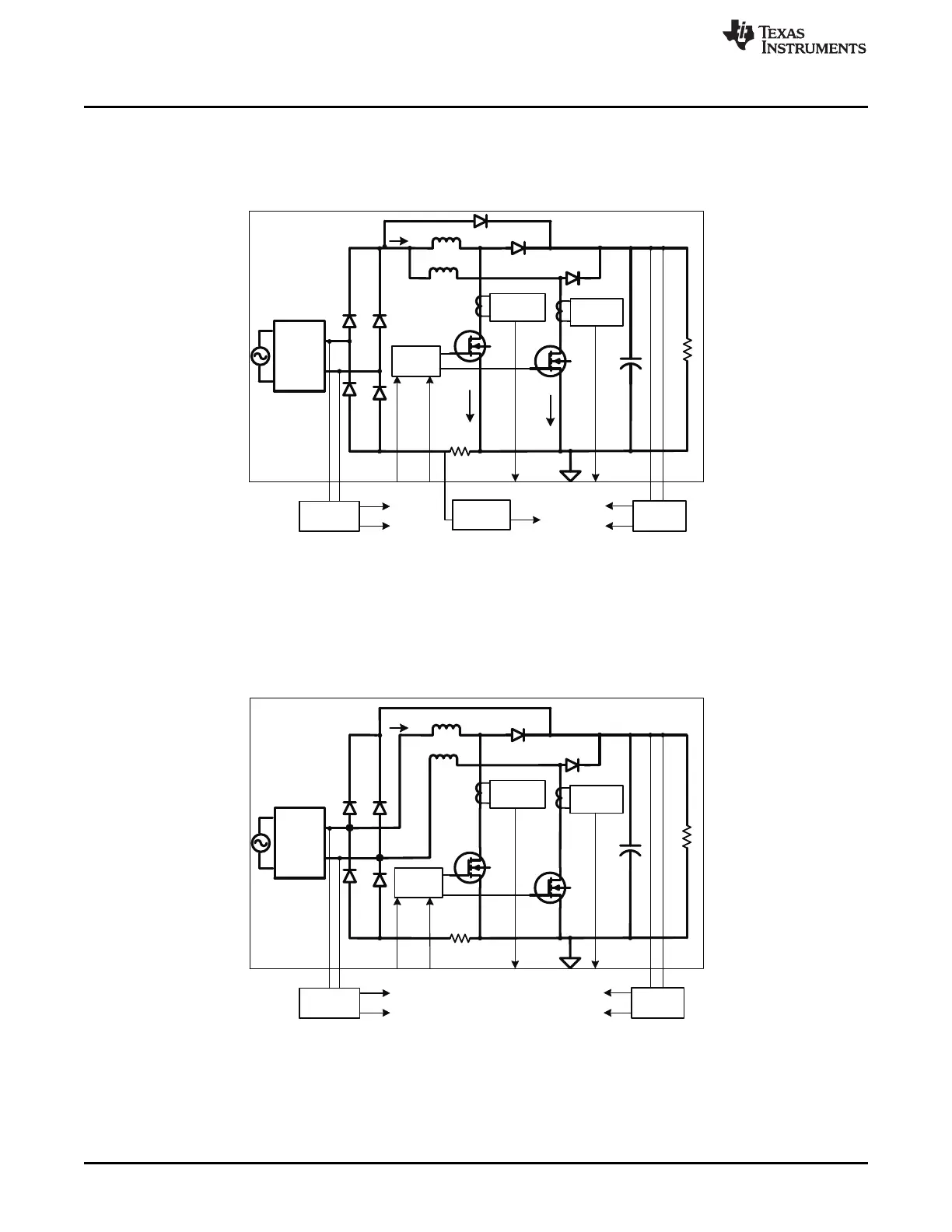

A functional block diagram of a 2-phase interleaved PFC is shown in Figure 26. The digital controlled 2-
phase interleaved PFC has the same power stage seen in other analog controlled devices. All signals
interact with UCD3138 and are explained in section 12.2.
Figure 26. Digitally Controlled 2-Phase PFC System Block Diagram
12.1.3 Bridgeless PFC Block Diagram
A function block diagram of a bridgeless PFC is shown in Figure 27. The digital controlled bridgeless PFC
has a same power stage as those seen in analog controlled. All signals interacted with UCD3138 are
explained in the section Section 12.2.
Figure 27. Digitally Controlled Bridgeless PFC System Block Diagram
26
Digitally Controlled Single-Phase PFC Pre-Regulator SLUU885B–March 2012–Revised July 2012
Submit Documentation Feedback
Copyright © 2012, Texas Instruments Incorporated
