Digital PFC Description
www.ti.com
12.3.5 Interface Connector of Control Card
The interface connector between the PFC board and the UCD3138 controller board is shown in Figure 35.

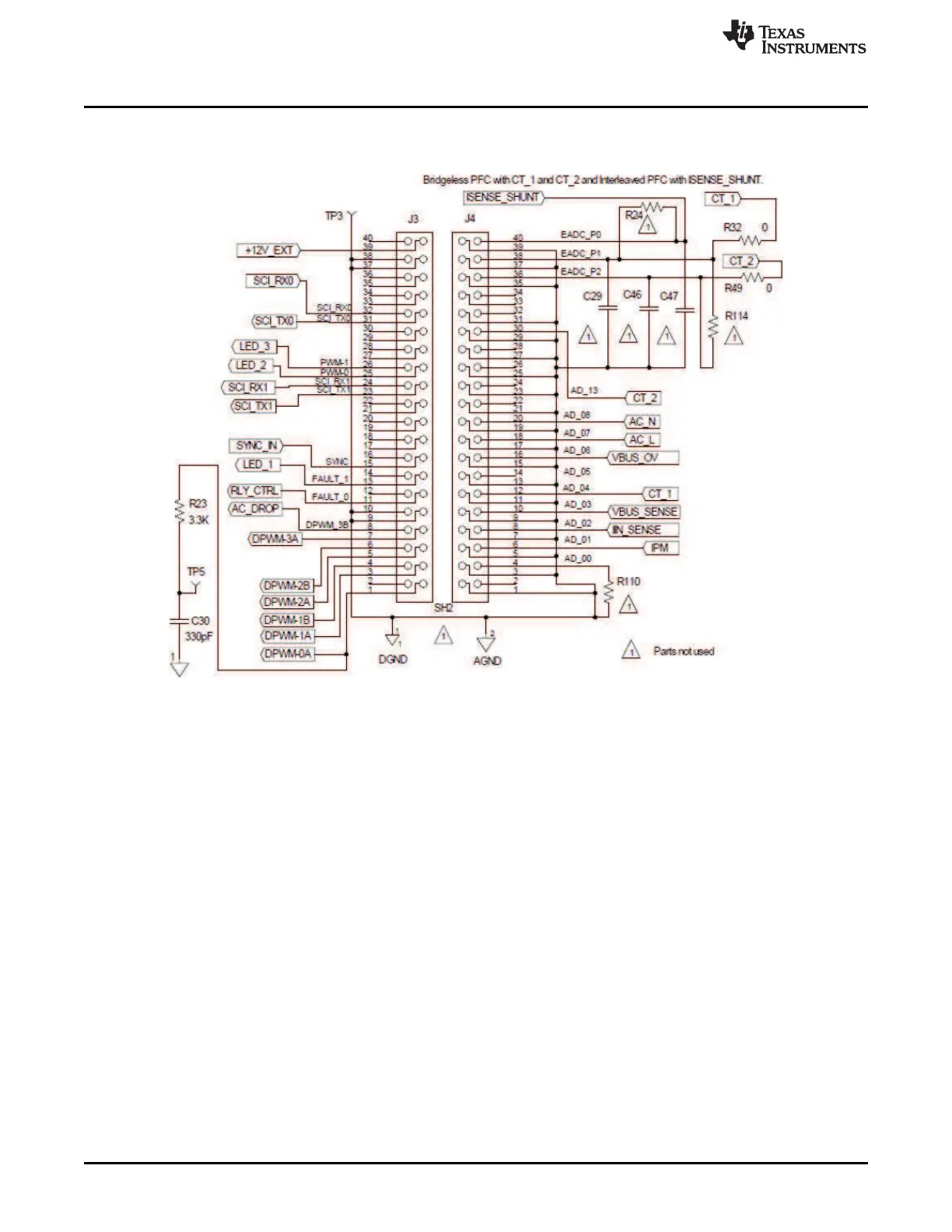

Figure 35. UCD3138 Controller Board and PFC Board Signal Interface Connector Diagram
34
Digitally Controlled Single-Phase PFC Pre-Regulator SLUU885B–March 2012–Revised July 2012
Submit Documentation Feedback
Copyright © 2012, Texas Instruments Incorporated
