from the panel.
To use the RLED feature put switch 1 in the up position which will disable the LED.
When an output is triggered 0V is applied to the RLED terminal which will enable
the LED. On a Texecom control panel the output can be programmed as either
Engineer Logon or Walktest.
1.4 Mode selection

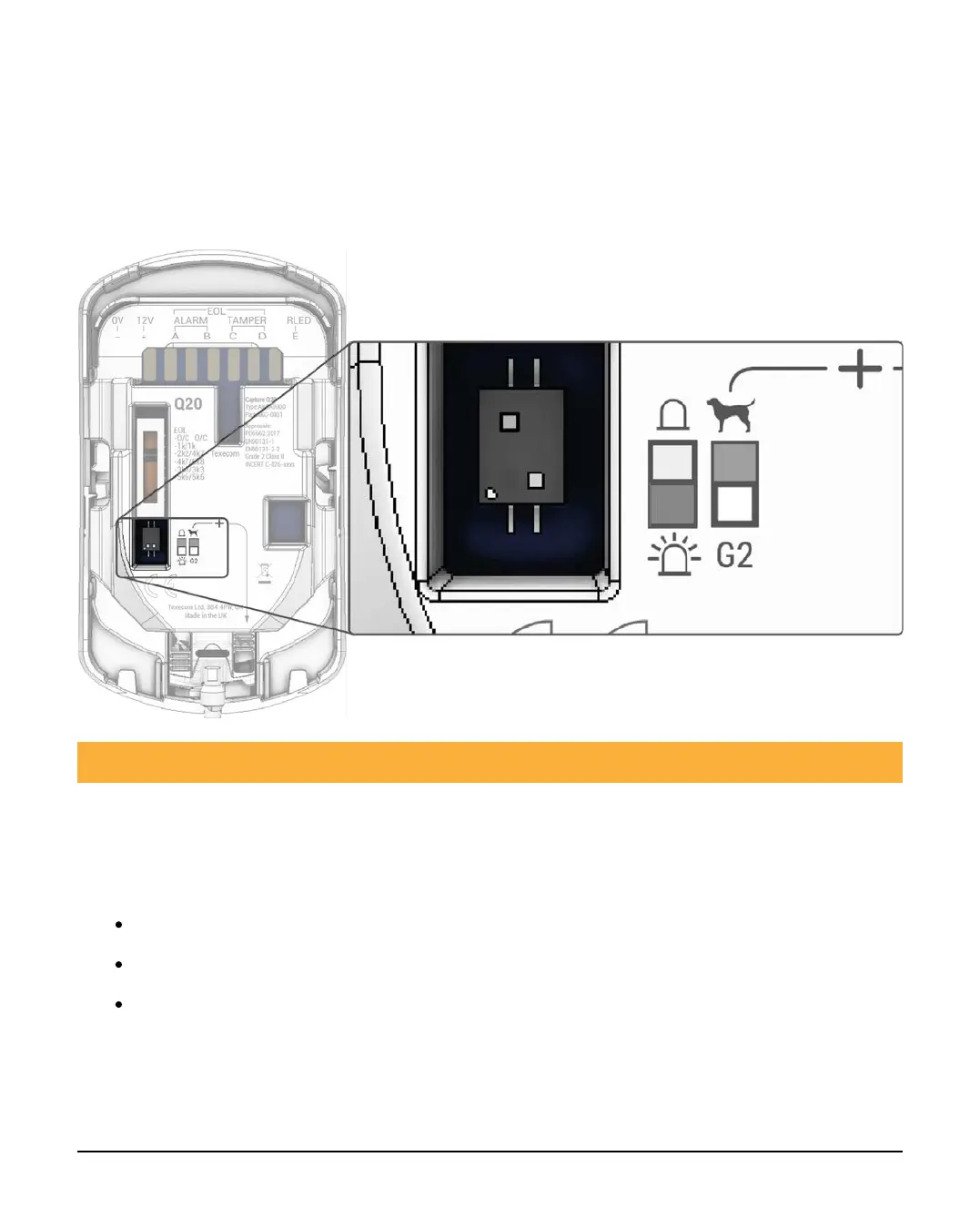

G2 (Q20 shown) (LR50 N/A)
This is the default state for optimum catch performance and false activation
immunity. Switch 2 and the lens obscuration slider should be in the down position.
P15 15m @ 90° compliant to EN50131-2-2, INCERT and PD6662
Q20 20m @ 90° compliant to EN50131-2-2, INCERT and PD6662
D20 20m @ 85° compliant to EN50131-2-4, INCERT and PD6662
