Texecom Premier External TD User Manual

JP4: LED
JP5: MODE

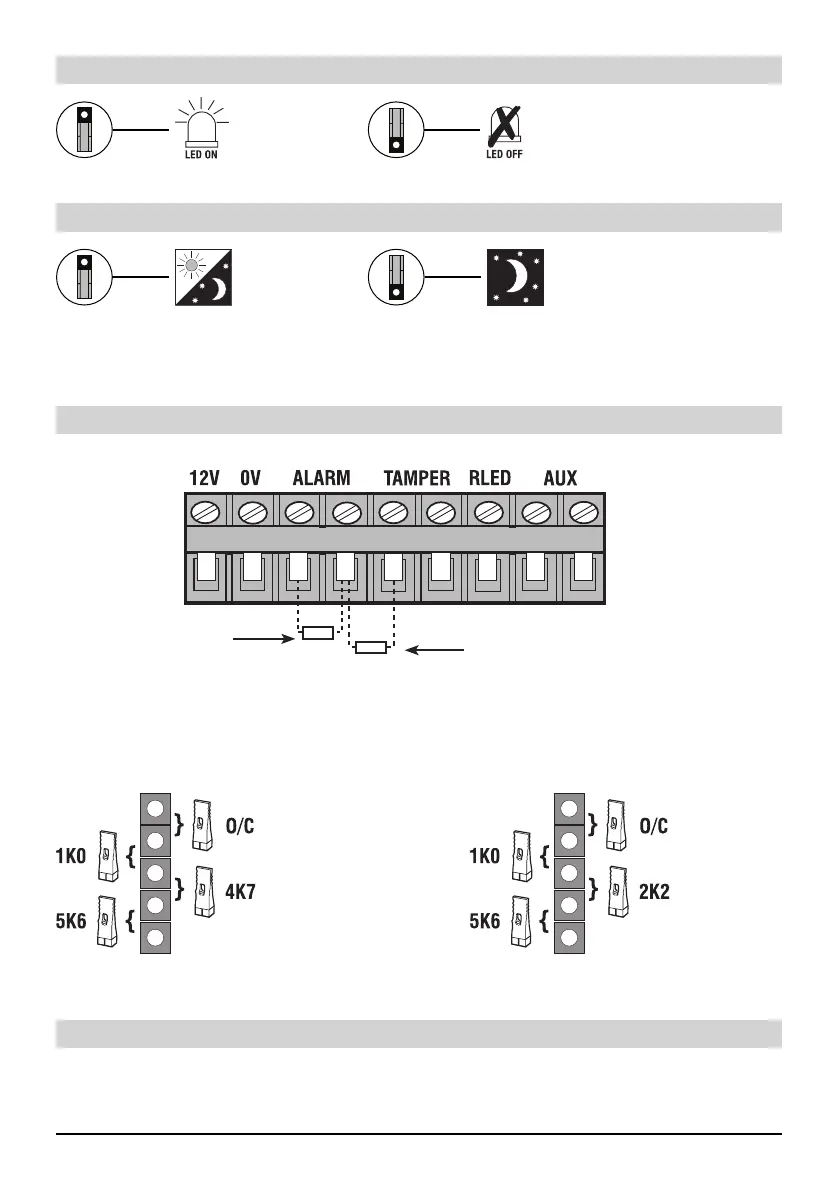

JP6 & JP7: END OF LINE JUMPERS
JP7
Selects the End-of-Line
resistance. Equivalent
to wiring a resistor of
the selected value as
shown.
JP6
Selects the resistance across the alarm
relay. Equivalent to wiring a resistor of the
selected value as shown.
TAMPER - JP6ALARM - JP7
Night Mode
Detector only operates at night.
Day/Night Mode
Detector is always operating.
JP8 & JP9: see Auxiliary section (page 9)
INS352-5 6
