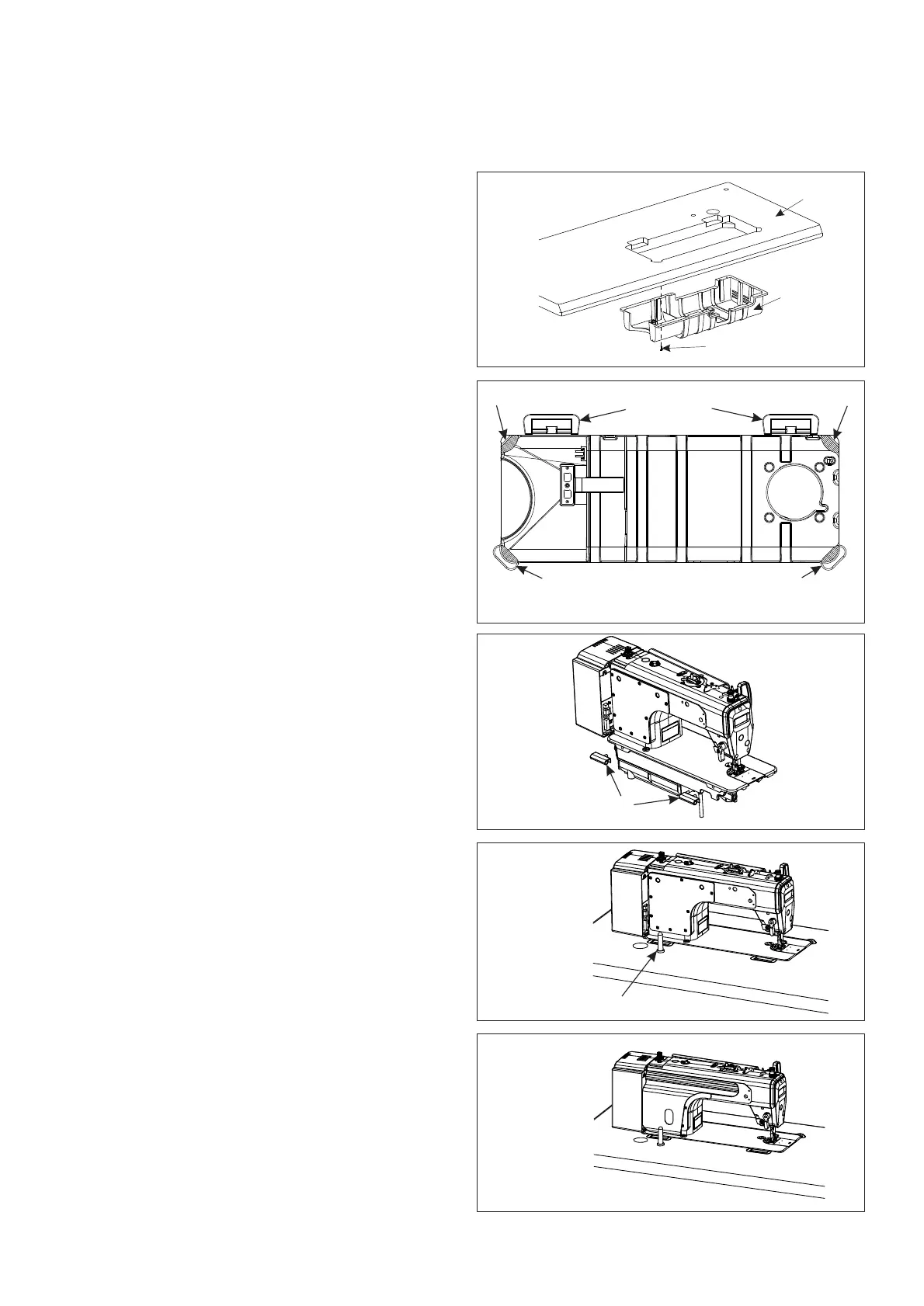

Mounting the Machine (Fig.1, Fig. 2, Fig.3, Fig.4 and Fig. 5)
4
1.Installation of oil pan and machine
Fix the oil pan ② under the table ①with 6
screws ③ as shown in the Fig.1.
As shown in the Fig,2 ,fix two cushions
⑤ and two support seats ⑥ in four corner of the
machine table ⑤ respectively , then fix
connecting hook seat ④ on the machine table ①
with 6 screws.
Insert machine head coupling hook⑦ into the
pin holes in the bottom plate such that it is
embedded into the coupling hook seat ④, and
put the machine head onto the seating washer
on four corners of the oil tray.
As shown in the picture,insert head support ⑧
into the machine table firmly.
1.Installation of plastic rear cover
Plug in the connecting wires on the electronic
control.
Fix the plastic rear cover on the sewing
machine as the Fig.5 shown.
①
③
②
Fig.1
Fig.2
④
④
⑤
⑤
⑥
⑥
Fig.3
⑦
Fig.4
⑧
Fig.5
