Lubrication of machine(Fig.6 )
5
6

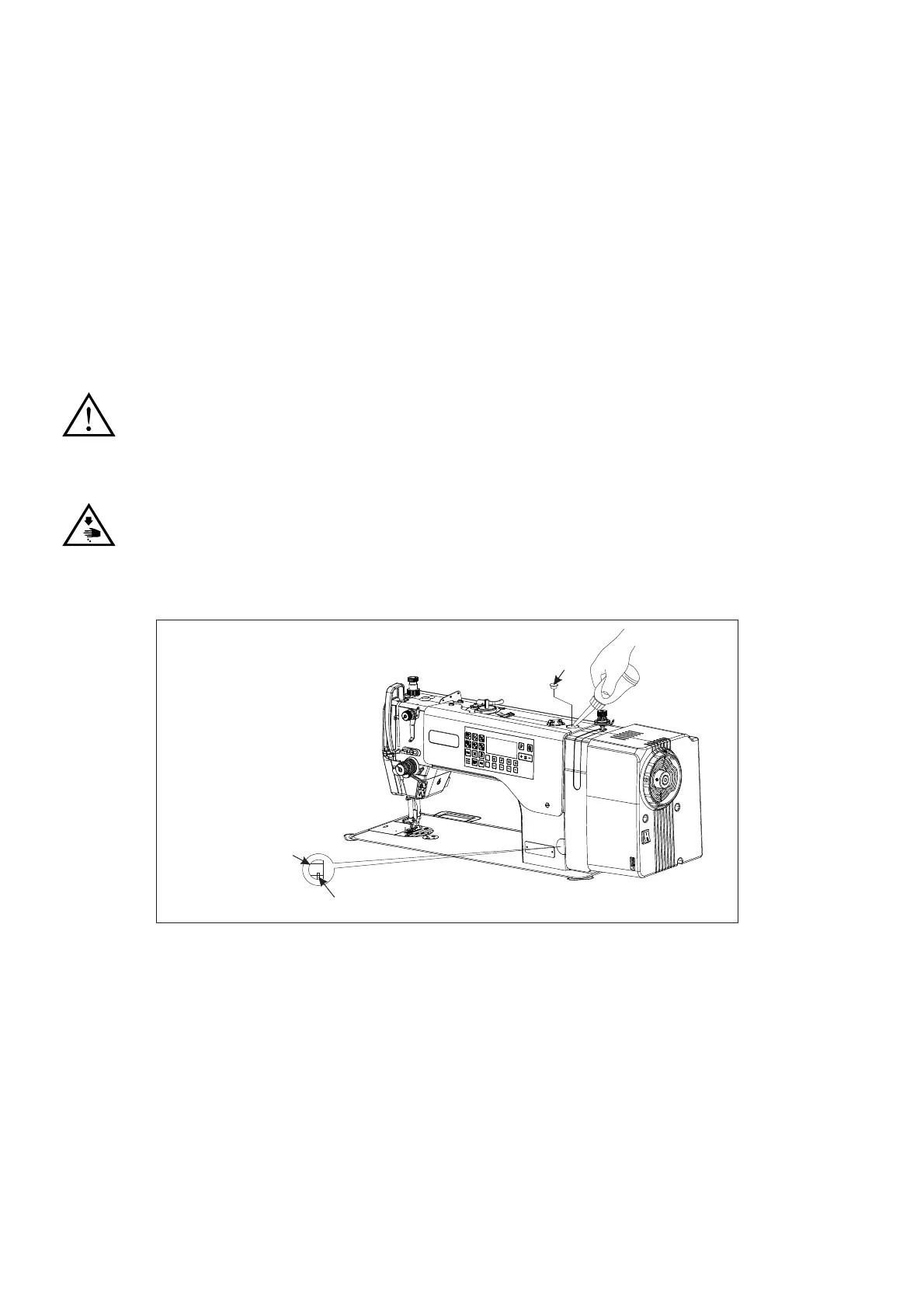

Mounting the Thread Stand (Fig.7)
1.As shown in right-hand figure, mount the thread stand component onto the mounting h- ole for
thread stand on the sewing machine table.
2.Screw down retaining nut
① for lower segment of thread stand lever to fix the thread stand.
Caution:
1.Lubrication of gearbox
Fill gearbox if the oil pointer ② below the lower tick mark in the oil window ③ when using the
sewing machine.
The steps of lubrication are as fellow:
1) Remove the rubber plu g ① of oil filler, fill with oil using the oil bottle in accessory box.
(No.10 white oil)
2) Fill oil until the oil point e r ② reaches the upper tick mark in the oil window ③.Do not fill
too much oil otherwise the oil will flow into head when turnover machine.
1.To prevent the unexpected startup of sewing machine, trim off the power supply before
the operation is conducted.
2.When using the new sewing machine for the first time, open the rubber plug ① of oil
filler and fill with 500ml oil.(No.10 white oil)
①
Fig.6
②
③
To Next Page
