Textron EZGO RXV ELiTE FLEET - Front Suspension and Steering

660325 Service Parts Manual
Page H-1

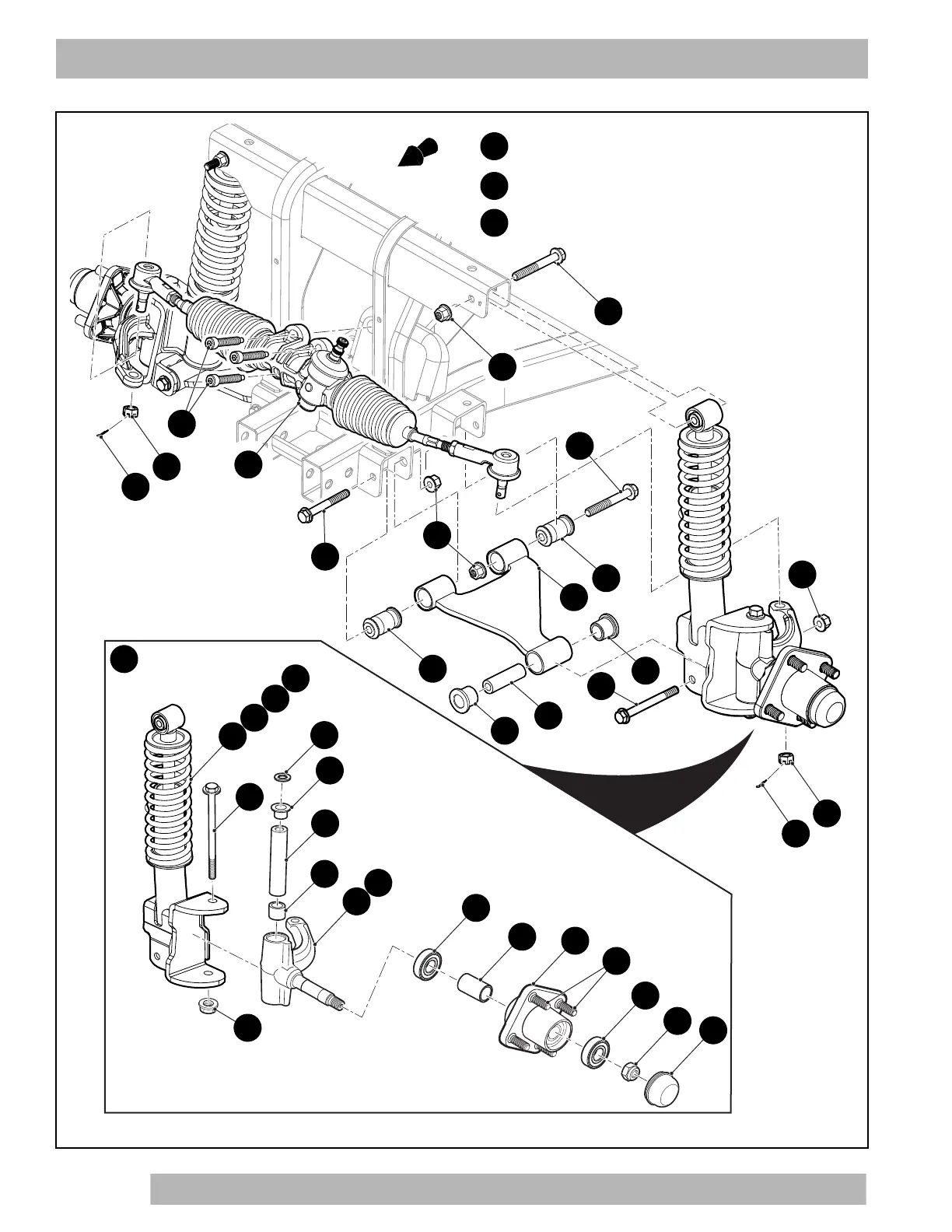

FRONT SUSPENSION AND STEERING
2
SHOCK ABSORBER (DRIVER SIDE)
includes items 6, 9, 11 - 26
32 CONTROL ARM ASSEMBLY
includes items 33 - 34
11
HUB ASSEMBLY
includes items 12 - 15
1
SHOCK ABSORBER (PASSENGER SIDE)
includes items 5, 8, 11 - 26
Front of Vehicle
