Textron EZGO RXV ELiTE FLEET User Manual

660325 Service Parts Manual
Page M-1

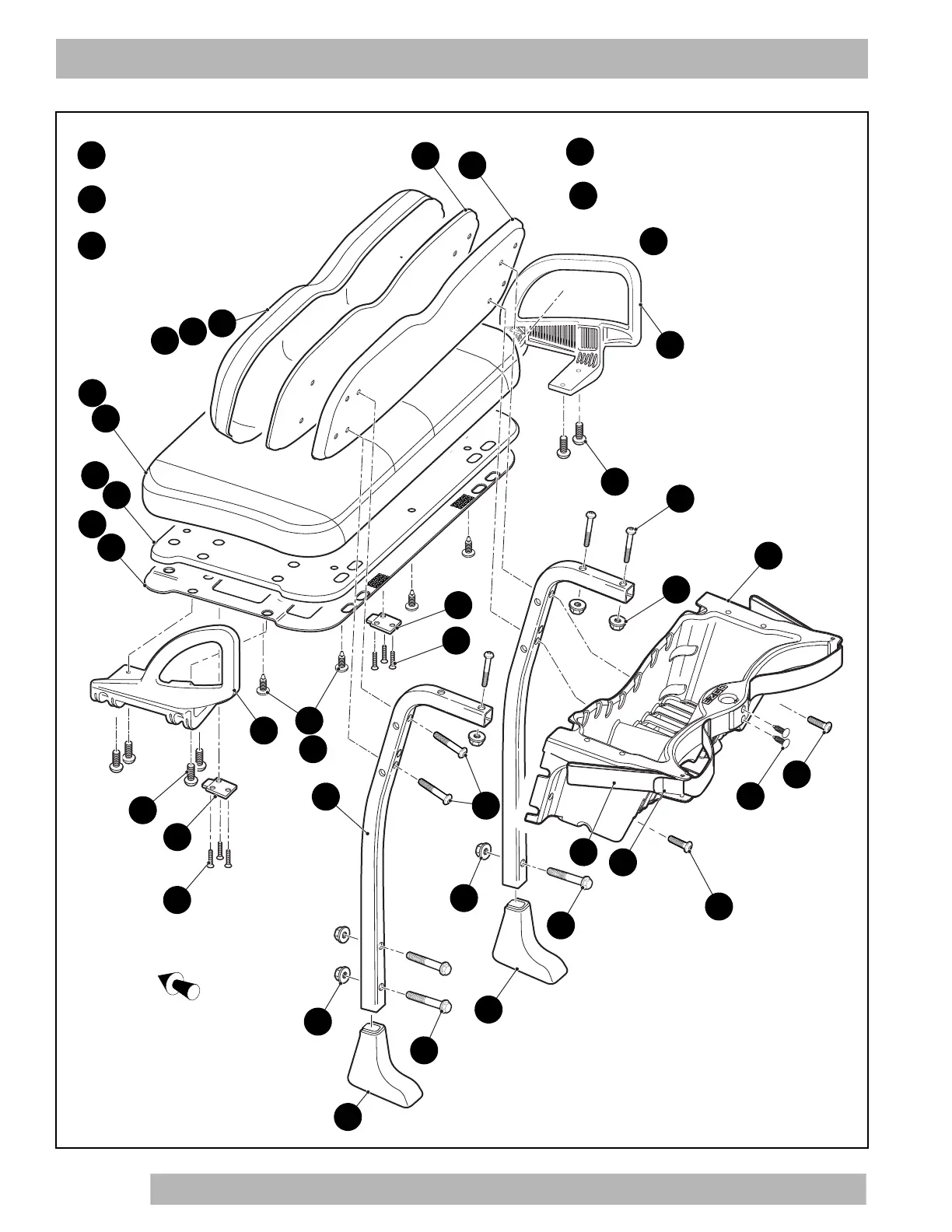

SEATING
11
25
31
32
36
36
34
33
26
12
1
SEAT BOTTOM ASSEMBLY
includes items 2 - 12
30
SWEATER BASKET ASSEMBLY
includes items 31 - 34
14
SEAT BACK ASSEMBLY
includes items 15 - 17
2
15
7
19
43
20
7
8
10
6
12
8
23
22
23
22
28
28
3
41
45
42
4
Front of Vehicle
17
37
38
39
40
PREMIUM SEAT BOTTOM ASSEMBLY
includes items 7 - 12, 40
44
PREMIUM SEAT BOTTOM ASSEMBLY
includes items 7 - 12, 45
PREMIUM SEAT BOTTOM
includes items 41 - 43
16
