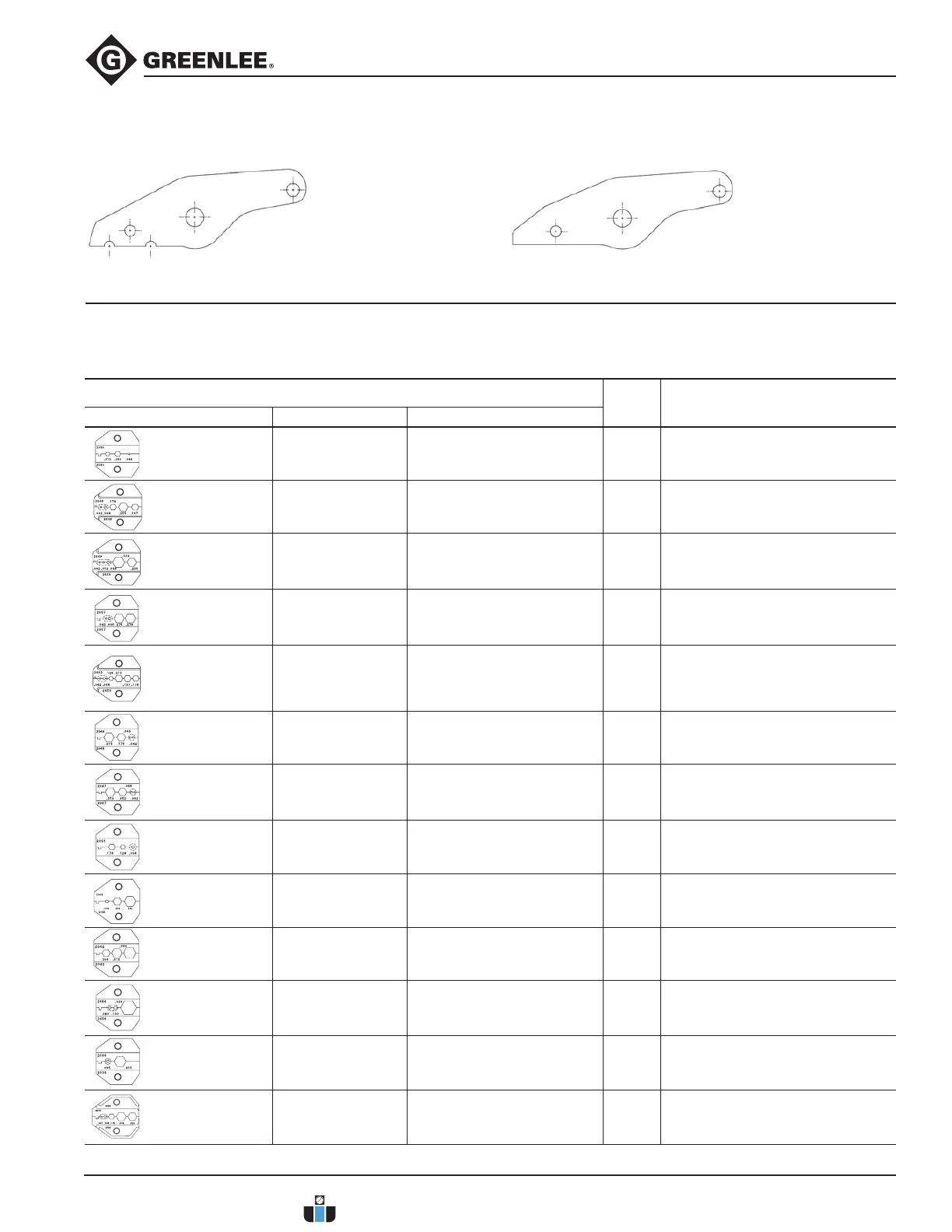

EK50ML Battery-powered Crimping Tool
Greenlee / A Textron Company
11
CrimpALL
®
Interchangeable Die Sets
DESCRIPTION
DIE
CAT. NO.
REMARKS
CABLE TYPE CONNECTION CRIMP SIZES
RG58, RG59, RG62AU BNC/TNC and 3 Piece 0.256" (6.5 mm, 0.213" (5.4 mm),
0.068" (1.7 mm) HEX
PA2034 Common 2-piece and 3-piece BNC/TNC
RG174, RG59/62,
mini-coaxial 75 Ω
HDTV SMA, True 75 Ω
BNC/TNC, Mini-UHF
0.255" (6.5 mm), 0.197" (5.0 mm),
0.178" (4.5 mm), 0.068" (1.7 mm)
HEX & 0.042" (1.0 mm) SQ
PA2648 Common 2-piece and 3-piece BNC/TNC
(Kings, ADC, Amphenol, etc.)
RG59, RG6, Belden
8281, Belden 1694A
HDTV BNC/TNC/CATV
"F" True 75 Ω
0.324" (8.2 mm), 0.255" (6.5 mm),
0.068" (1.7 mm) HEX & 0.052"
(1.3 mm), 0.042" (1.0 mm) SQ
PA2649 Common 2-piece and 3-piece BNC/TNC
(Kings, ADC, Amphenol, etc.)
RG6, Belden 1694,
Belden 1694A
HDTV BNC/TNC True
75 Ω
0.278" (7.0 mm), 0.275" (6.9 mm),
0.068" (1.7 mm) HEX & 0.042"
(1.0 mm) SQ
PA2657 Common 3-piece BNC/TNC
(Kings & ADC HDTV)
RG58, Mini-59, RG-174,
small coaxial
SMA, SMB, Mini-59
BNC/TNC,
Mini-UHF
0.128" (3.2 mm), 0.213" (5.4 mm),
0.197" (5.0 mm), 0.178" (4.5 mm),
0.068" (1.7 mm) HEX & 0.042"
(1.0 mm) SQ
PA2653 Common 2-piece and 3-piece SMA/SMB/
BNC/TNC & Mini-UHF
RG58, RG174, AT&T
735, 50 and 75 Ω
Thinnet, BNC/TNC,
Mini-UHF
0.213" (5.4 mm), 0.178" (4.5 mm)
0.068" (1.7 mm) HEX & 0.042"
(1.0 mm) SQ
PA2046 50/75 ohm small 2-piece & 3-piece BNC/TNC
(Kings, ADC, etc.)
RG59, RG62, Belden
8281, 50 and 75 Ω
BNC/TNC and Mini-UHF 0.315" (8.0 mm), 0.252" (6.4 mm),
0.068" (1.7 mm), HEX 0.042"
(1.0 mm) SQ
PA2047 75 ohm 2-piece & 3-piece BNC/TNC
(Kings, ADC, Amphenol, etc.)
RG174, RG179 and
Small Cable Connection
BNC/TNC 0.178" (4.5 mm), 0.128" (3.2 mm),
0.068" (1.7 mm) HEX
PA2051 Common 2-piece and 3-piece
BNC/TNC/SMA/SMB
RG6 and RG6 Quad,
Belden 1694A
BNC and CATV "F" Type
& HDTV
0.360" (9.1 mm), 0.324" (8.2 mm),
0.068" (1.7 mm) HEX
PA2045 Common 2-piece and 3-piece BNC/TNC and
CATV "F" 2-piece
RG59, RG6 Video Cable CATV "F" Type 0.346" (8.8 mm), 0.319" (8.2 mm),
0.256" (6.5 mm) HEX
PA2042 Crimps Ferrules or Sleeves Only
RG8, RG11, RG213 N-Type 0.429" (10.9 mm), 0.100" (2.54 mm),
0.080" (2.03 mm) HEX
PA2656 Common 2-piece and 3-piece "N"-Type
(Kings, ADC, Amphenol, etc.)
RG8, RG11, RG213,
RG216
N-Type, MS39012 Type 0.415" (10.5 mm), 0.095" (2.4 mm)
HEX
PA2039 Crimps Pins and Ferrules
Belden 1855A, 1865A,
1505A, 1505F, 1694A,
1694F, 179DT
HDYV BNC/TNC True
75 Ω
0.178" (4.5 mm), 0.255" (6.5 mm),
0.278" (7.0 mm), 0.068" (1.7 mm),
0.041" (1.0) HEX
PA2699 Kings, ADC, B&L, Trompeter, Amphenol,
Switchcraft
For Coaxial Connectors
Die Holders
For EK50ML120GL For EK50ML138GL
For Panduit and
T&B die sets
For Greenlee
CrimpALL
®
and
Kwik Cycle
®
dies;
some competitor
dies (Ideal)
