3.0 GENERAL INFORMATION
The Task Force Tips Max-Force and Max-Matic nozzles are automatic pressure control nozzles. Automatic nozzles operate by
sensing the pressure at the nozzle’s inlet and adjusting the discharge opening to maintain a constant pressure throughout the ow
range of the nozzle. While owing, the stream pattern can be varied from wide fog to straight stream. Trapped debris can be removed
while owing.
All Max Series nozzles are constructed of hardcoat anodized aluminum and UV resistant rubber. This rugged construction is
compatible with the use of fresh water as well as reghting foam solutions. The Max-Force and Mid-Matic are intended for use on
xed or portable monitors. The coupling on the nozzle does not rotate, but can be removed for service.
The Max-Force operates at either a standard or low pressure as selected by the nozzle operator. The Max-Matic operates at a single
pressure for a given ow range. The Max-Flow is rated at a xed gallonage nozzle. Available pressures are as follows:
NOZZLE FLOW RANGE STANDARD PRESSURE LOW PRESSURE
MAX-FORCE
Dual Pressure Model
100-500 GPM
400-2000 LPM
100 PSI
7 BAR
55 PSI
4 BAR
MAX-MATIC, 100 psi
Single Pressure Model
100-500 GPM
400-2000 LPM
100 PSI
7 BAR
N/A
MAX-MATIC, 80 psi
Single Pressure Model
100-500 GPM
400-2000 LPM
80 PSI
5.5 BAR
N/A
MAX-FLOW, 100 psi
Fixed Gallonage
500 GPM
2000 LPM
100 PSI
7 BAR
N/A
Table 3.0
3.1 USE WITH SALT WATER
Use with salt water is permissible provided nozzle is thoroughly cleaned with fresh water after each use. The service life of the nozzle
may be shortened due to the e󰀨ects of corrosion and is not covered under warranty.
3.2 VARIOUS MODELS AND TERMS
Coupling
Stream Shaper
Standard / Low
Pressure Knob
(Max-Force Only)
Coupling
Stream Shaper
Manual Override
Knob
Standard / Low
Pressure Knob
(Max-Force ER Only)
ER Motor Assembly
Manual Version ER Version

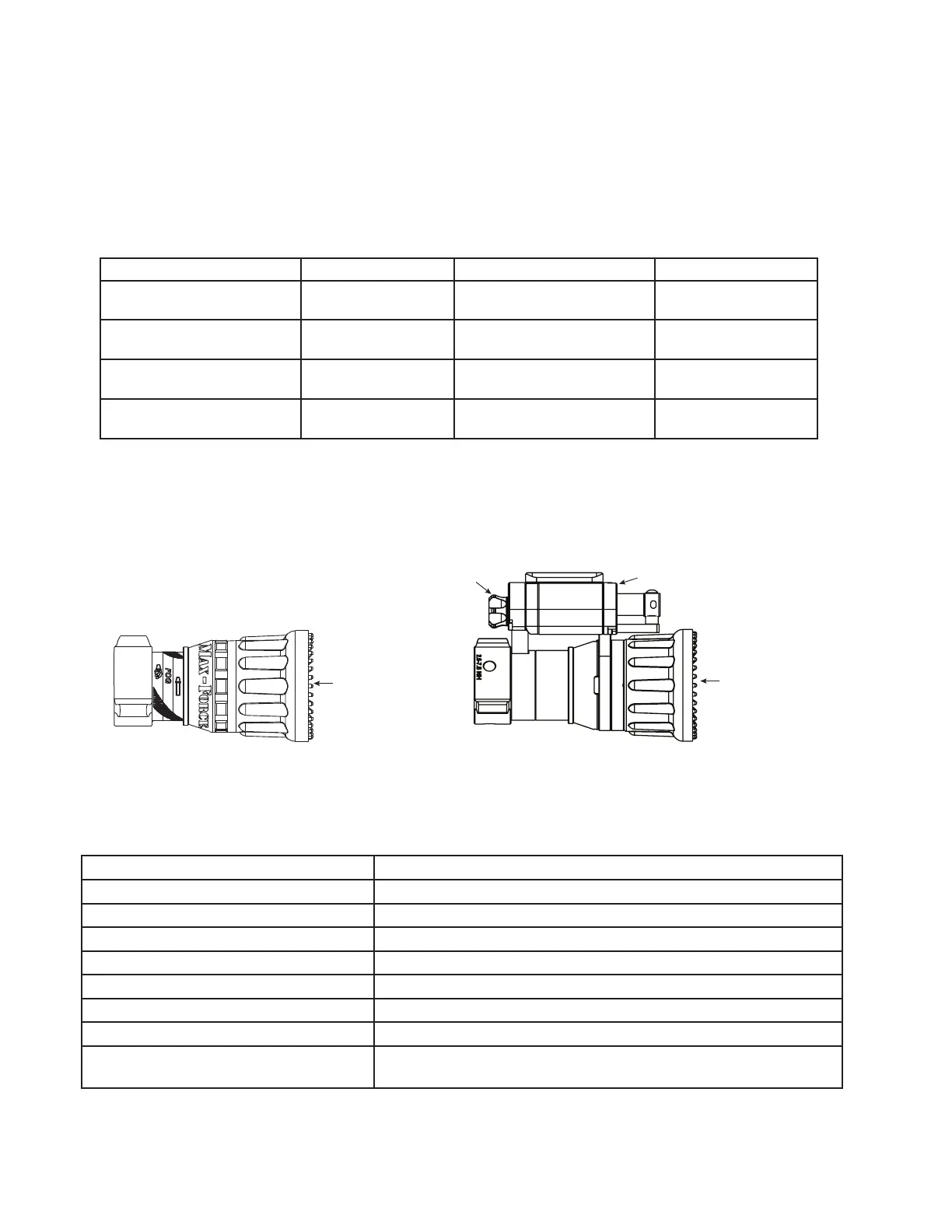

Figure 3.2
3.2.1 MECHANICAL SPECIFICATIONS
Weight (Max-Force) 6.7 lb (3.0 kg)
(Max-Matic & Max-Flow) 6.5 lb (2.9 kg)
(Max-Force ER) 10.2 lb (4.6 kg)
(Max-Matic ER & Max-Flow ER) 10.0 lb (4.5 kg)
Standard Operating Pressure Varies by Model (see Table 3.0)
Maximum Fog Angle 100°
Operating temperature range of uid 33 to 120°F (1 to 50°C)
Storage temperature range -40 to 150°F (-40 to 65°C)
Materials used Aluminum 6000 series hard anodized MIL8625 class 3 type 2,
stainless steel 300 series, nylon 6-6, nitrile rubber
Table 3.2.1

TFT Max Series Specifications

General

Brand	TFT
Model	Max Series
Category	Laboratory Equipment
Language	English
