TGB 5. ENGINE REMOVAL
5-5
Caution
Engine suspension nut:
Torque Value: 4.5~5.5kgf-m
Rear shock absorber bolt:
Torque Value: Top: 3.5~4.5kgf-m
lower: 2.4~3.0kgf-m
Rear wheel axle nut:
Torque Value: 11.0~13.0kgf-m
y Notice both feet and hands safety for
squeezing as engine installation.
y Do not bent or squeeze each wires or
hose.
y Route all cables and wires in accordance
with the routine layout.

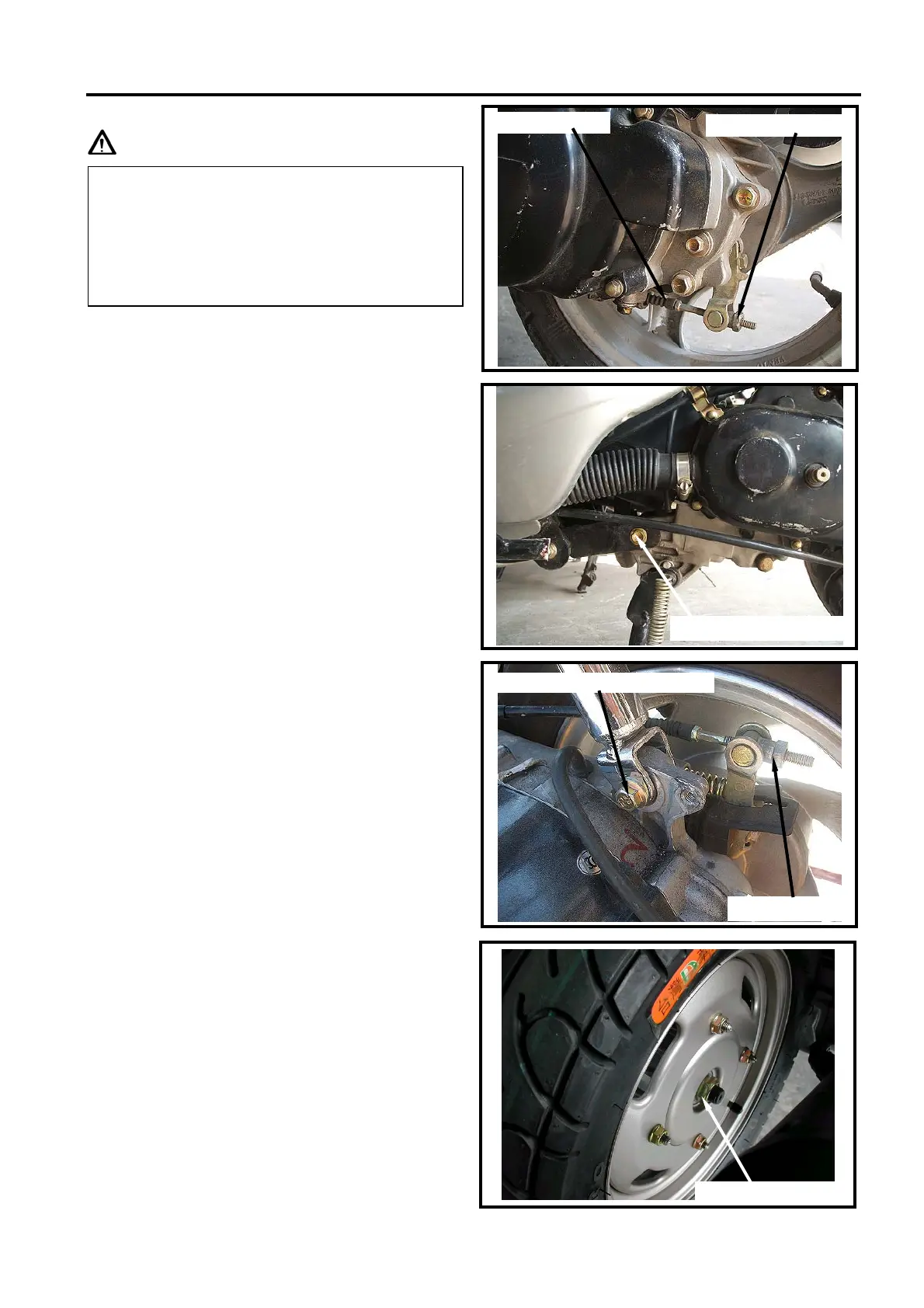

Rear wheel axle nut×1
Brake cable nut
Rear shock absorber lower bolt
RR. Brake cable nut
RR. Brake cable
Engine suspension nut
To Next Page
