continuous operation.
OPTIC FIBRE (Pin
It consists of a fibre-optic light cable provided of suitable connectors at its extremities for the
insertion into the THD EVOLUTION and Dearterializer THD, respectively.

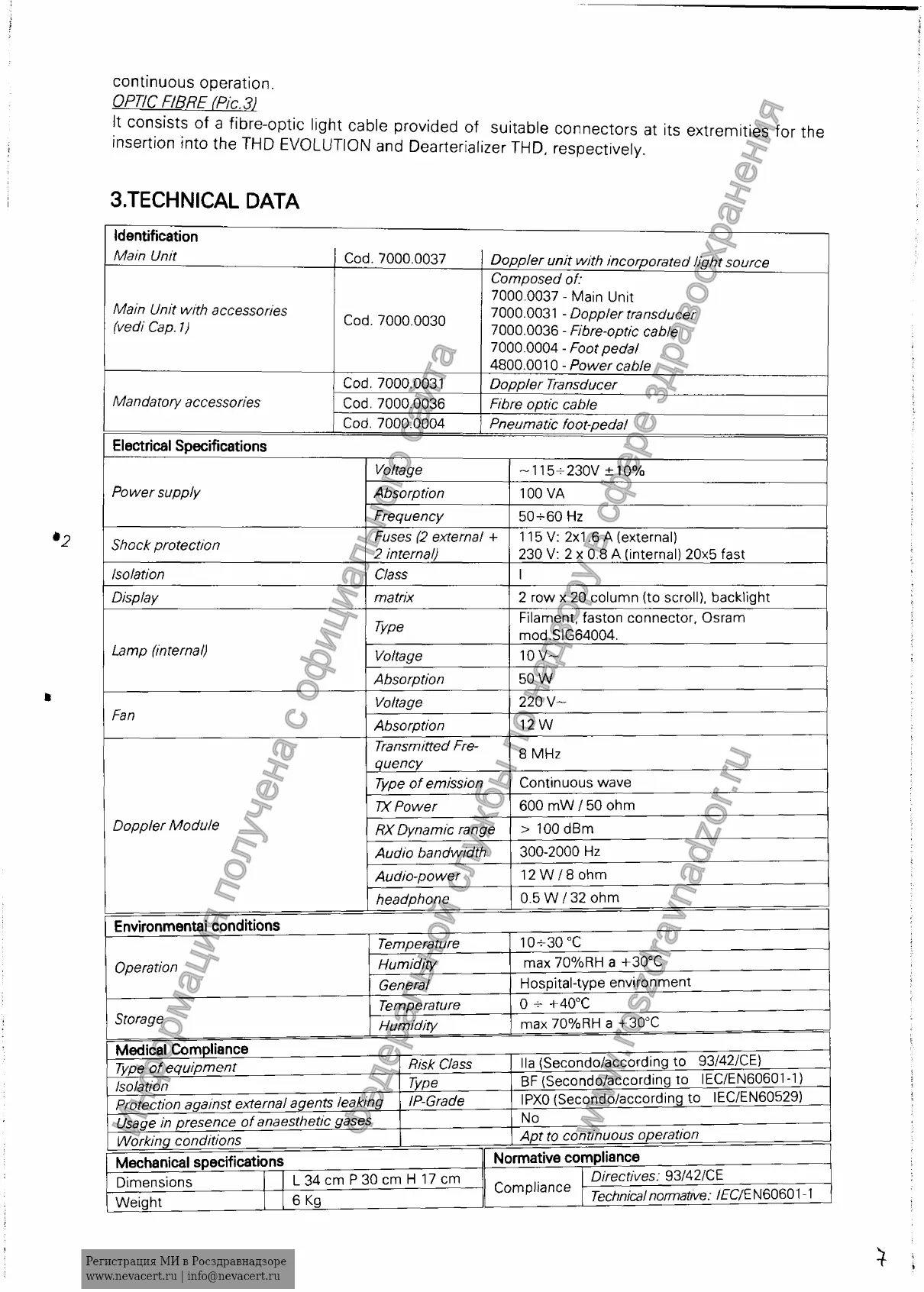

3.TECHNICAL DATA
identification
Main Unit
Cod. 7000.0037
Doppler unit with incorporated light source
Main Unit with accessories
(vedi Cap. 1)
Cod. 7000,0030
Composed of:
7000 .0037-M a in Unit
7000.0031 - Doppler transducer
7000.0036 - Fibre-optic cable
7000.0004 - Foot pedal
4800.0010 - Power cable
Mandatory accessories
Cod. 7000.0031
Doppler Transducer
Cod, 7000.0036
Fibre optic cable
Cod, 7000.0004
Pneumatic foot-pedal
Electrical Specifications
Power supply
Voltage
- 1 1 5 - 230V ±10%
Absorption
100 VA
Frequency
5 0 -6 0 Hz
Shock protection
Fuses (2 externa! +
2 internal)
115 V; 2x1,6 A (external)
230 V: 2 X 0.8 A (internal) 20x5 fast
Isolation Class
1
Display
matrix 2 row X 20 column (to scroll), backlight
Lamp (internal)
Type
Filament, faston connector, Osram
mod.SIG64004,
Voltage
10 V~
Absorption
50 W
Fan
Voltage
220 V -
Absorption
12 W
Doppler Module
Transmitted Fre
quency
8 MHz
Type of emission
Continuous wave
TX Power
600 m W / 50 ohm
RX Dynamic range
> 100 dBm
Audio bandwidth
300-2000 Hz
Audio-power
12 W / 8 ohm
headphone
0.5 W / 32 ohm
Environmentai conditions
Operation
Temperature
1 0 -3 0 “C
Flumidity
max 70%RH a +30“C
General
Hospital-type environment
Storage
Temperature
0 - + 4 0 X
Flumidity
max 70% RH a + 3 0 X
Medical Comoliance ________________________ —
--------
--------
— — — —
Tvoe of eauipment
Risk Class
lla (Secondo/according to 93/42/CE)
Isolation
Type
BF (Secondo/accordinq to IEC/EN60601-1)
Protection against external agents leaking
IP-Grade
IPXO (Secondo/according to IEC/EN60529)
Usage in presence of anaesthetic gases
No
Workina conditions
Apt to continuous operation
Mechanical soecifications
Normative compliance
Dim ensions
L 34 cm P 30 cm H 17 cm
Directives: 93/42/CE
1 ia n О
----------------------
---------
-
--------------------------------------
Weight
6 Kg
L u M .M ii.iio d jQc^^icalnormative: /EC/EN60601-1
^ i
