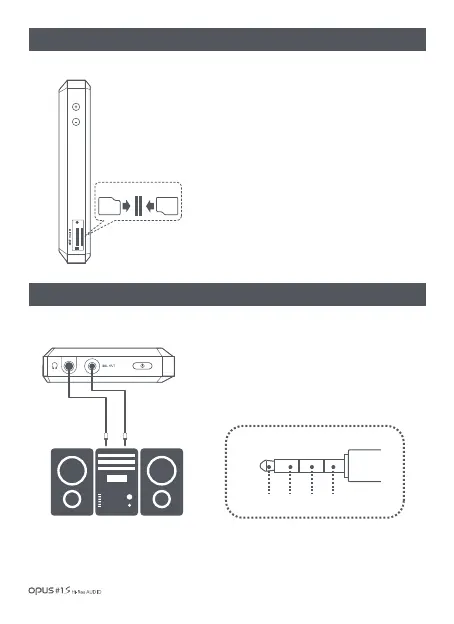

| Micro SDcard insertion/removal
1. Insert and remove Micro SD card only when the power is
turned off.
2.
Gently insert Micro SD card according to direction depicted.
Gently press the Micro SD card to release it from the slot.
3. The directions of Micro SD card slots for lower(2) and
upper(1) are opposite. Please note that damage to
Micro SD card or device can occur when inserting both
slots in the same direction or trying to insert them in the
opposite direction.
| Earphones / Optical Out / Balanced Out(1)
1. Connect the device to a balanced audio input device
through earphones port (Ø3.5mm) (ground) and balanced
output port in conjunction.
Earphone (Ground) Balanced output(L/R)
Connection to balanced audio input device
R- R+ L+ L-
Getting Started / 08
