Thecus 8900 series User Manual

16
N7700PRO V2/N7710 series:

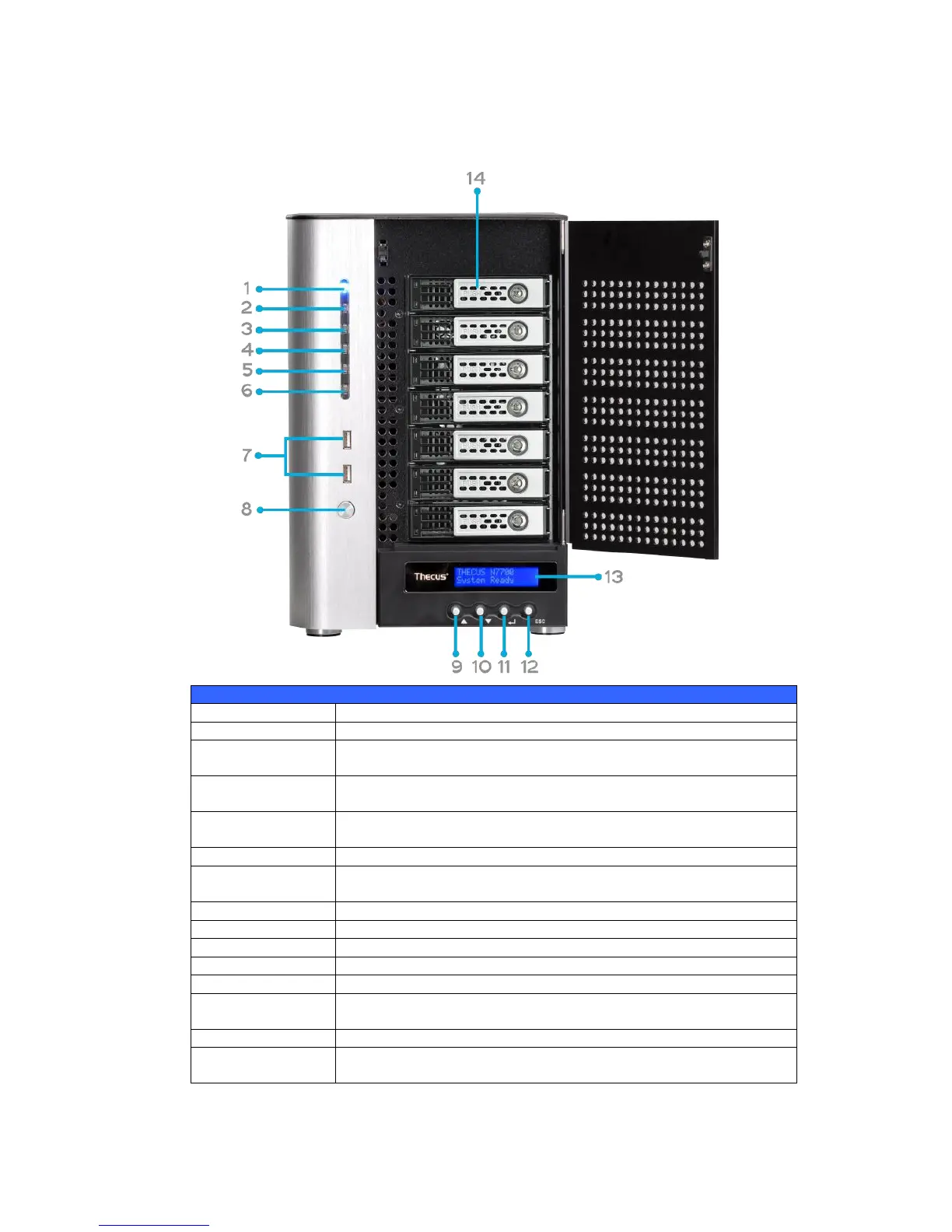

The Thecus N7700PRO V2/N7710 series front panel has the device’s controls,
indicators, and hard disk trays:
Front Panel
Item
Description
1.Power LED
 Solid blue: System is power on.
2.System LED
 Solid orange: system is being upgraded or system startup; data
currently inaccessible
3.WAN/LAN1 LED
 Solid green: network link
 Blinking green: network activity
4.LAN2 LED
 Solid green: network link
 Blinking green: network activity
5.USB Copy LED
 Solid blue: files are being copied from a USB storage device
6.eSATA link LED
(N7700PROv2)
 Solid blue: external eSATA device has connected
7.USB Port
 USB 2.0 port for compatible USB devices, such as USB disks.
8.Power Button
 Power on/off N7700PRO V2/N7710 series
9.Up Button ▲
 Push to scroll up when using the LCD display
10.Down Button ▼
 Push to enter USB copy operation screen
11.Enter Button 
 Push to enter LCD operate password for basic system setting
12.Escape Button
ESC
 Push to leave the current LCD menu
13.LCD Display
 Displays current system status and warning messages
14.HDD Trays
 Seven 3.5” SATA HDD trays
 Locks are provided for added security
