Thecus 8900 series User Manual

20
N4510U:

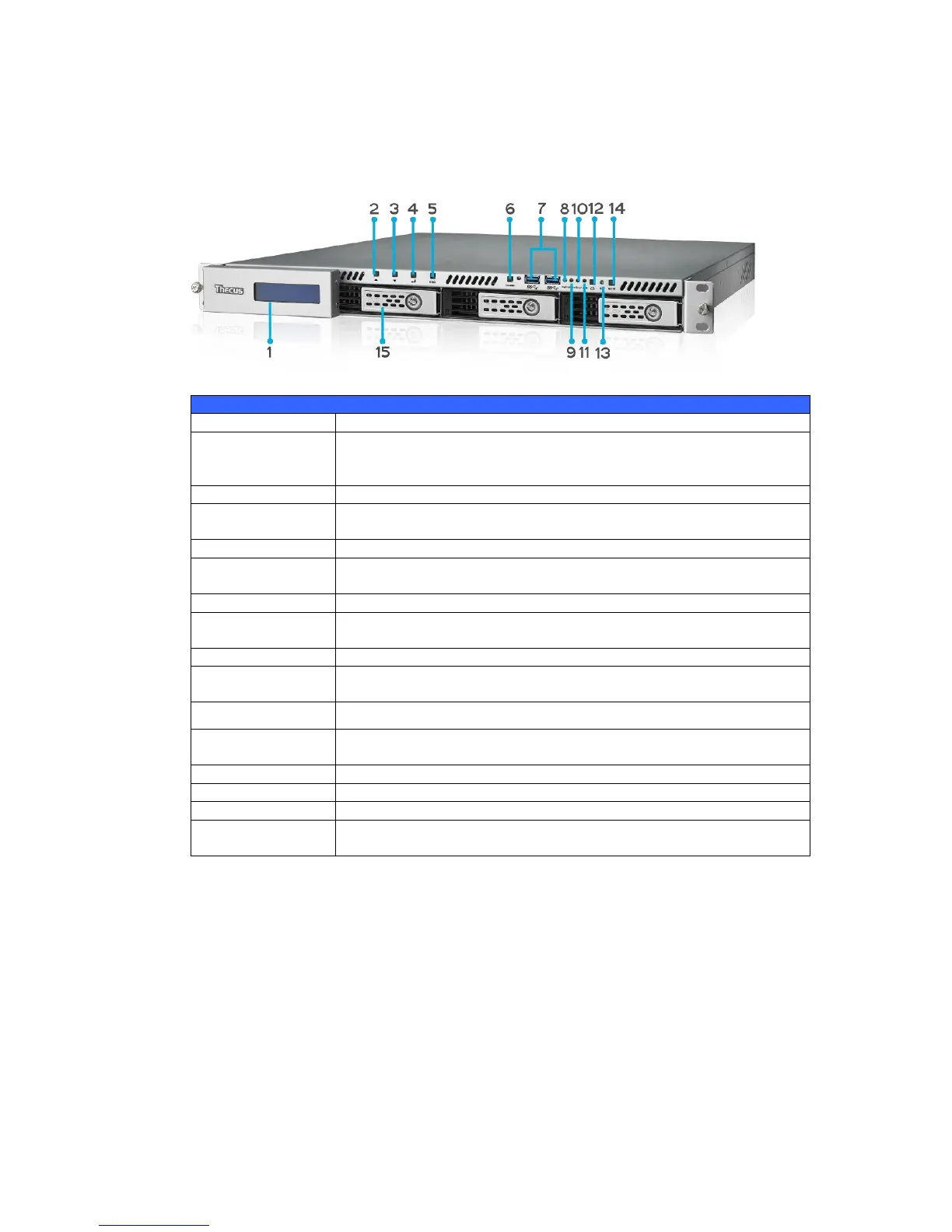

The Thecus N4510U front panel has the device’s controls, indicators, and
hard disk trays:
Front Panel
Item
Description
1. LCD Display
 Displays the current system status and warning messages.
 Displays hostname, WAN/LAN1/LAN2 IP addresses, RAID status,
and current time.
2. Up Button ▲
 Push to scroll up when using the LCD display.
3. Down Button
▼
 Push to scroll down when using the LCD display.
4. Enter Button 
 Push to confirm information entered into the LCD display.
5. Escape Button
ESC
 Push to leave the current LCD menu.
6. Locator Button
 Turns on the LED backlight.
7. USB Port
 USB 3.0 port for compatible USB devices, such as digital cameras,
USB disks, and USB printers.
8. PWR LED
 Solid Blue: System is powered on.
9. Busy LED
 Blinking orange: system startup or system maintenance; data
currently inaccessible
10. Error LED
Solid Red: System alert: Redundant power or system fan failure
11. LAN LED
 Solid green: network link
 Blinking green: network activity
12. Power Button
 Power the N4510U on/off.
13. Reset Button
 Resets the N4510U.
14. Mute Button
 Mutes the system fan alarm (Can also be managed through the UI)
15. HDD Trays
 Four 3.5” SATA HDD trays.
 Locks are provided for added security.
