Thecus N3200XXX Series User Manual

17
1U4200XXX:

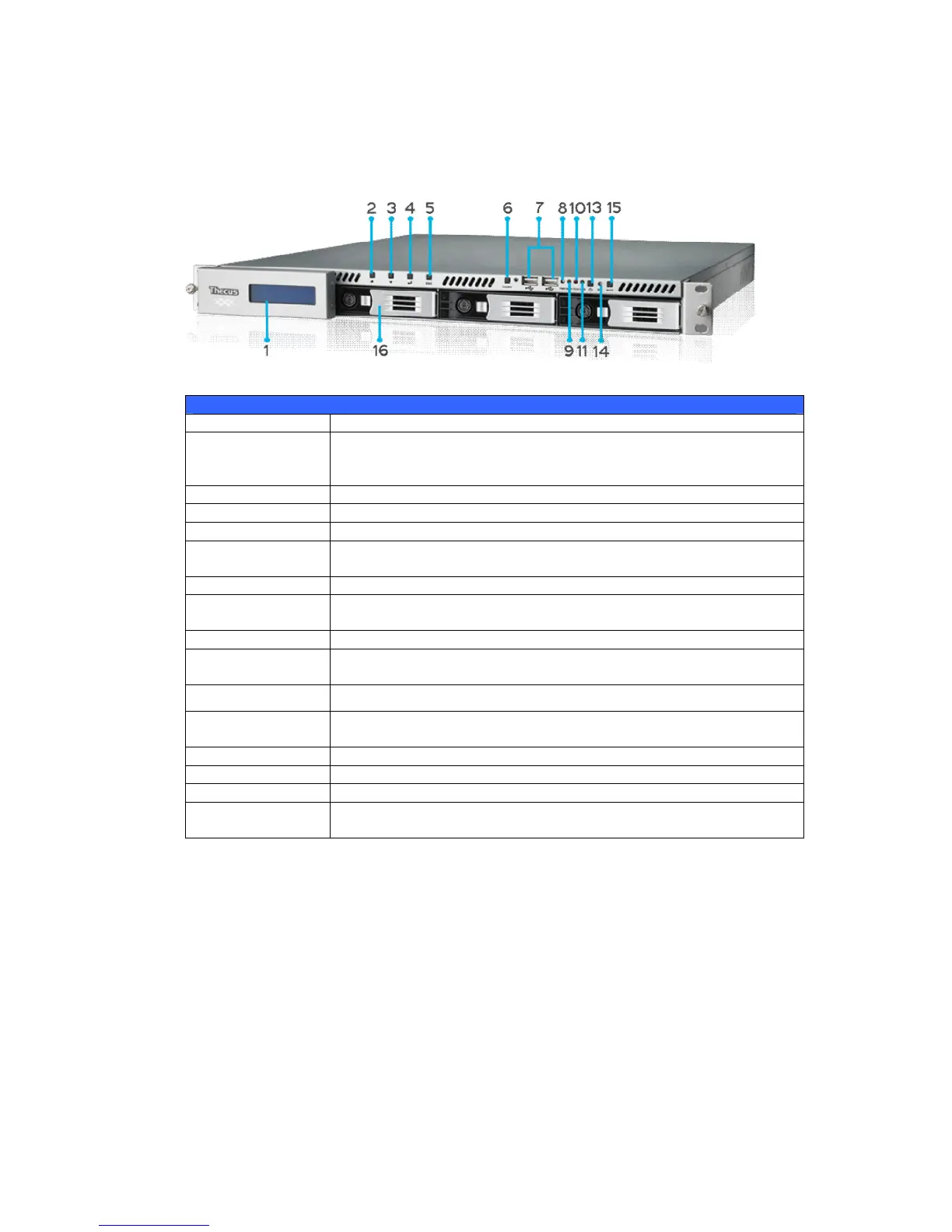

The Thecus 1U4200XXX front panel has the device’s controls, indicators, and
hard disk trays:
Front Panel
Item Description
1. LCD Display  Displays the current system status and warning messages.
 Displays hostname, WAN/LAN1/LAN2 IP addresses, RAID status,
and current time.
2. Up Button ▲  Push to scroll up when using the LCD display.
3. Down Button ▼
 Push to scroll down when using the LCD display.
4. Enter Button   Push to confirm information entered into the LCD display.
5. Escape Button
ESC
 Push to leave the current LCD menu.
6. Locator Button  Turns on the LED backlight.
7. USB Port  USB 2.0 port for compatible USB devices, such as digital cameras,
USB disks, and USB printers.
8. PWR LED  Solid Blue: System is powered on.
9. Busy LED  Blinking orange: system startup or system maintenance; data
currently inaccessible
10. Error LED
Solid Red: System alert: Redundant power or system fan failure
11. LAN LED  Solid green: network link
 Blinking green: network activity
12. Power Button
 Power the 1U4200XXX on/off.
13. Reset Button  Resets the 1U4200XXX.
14. Mute Button  Mutes the system fan alarm (Can also be managed through the UI)
15. HDD Trays  Four 3.5” SATA HDD trays.
 Locks are provided for added security.
