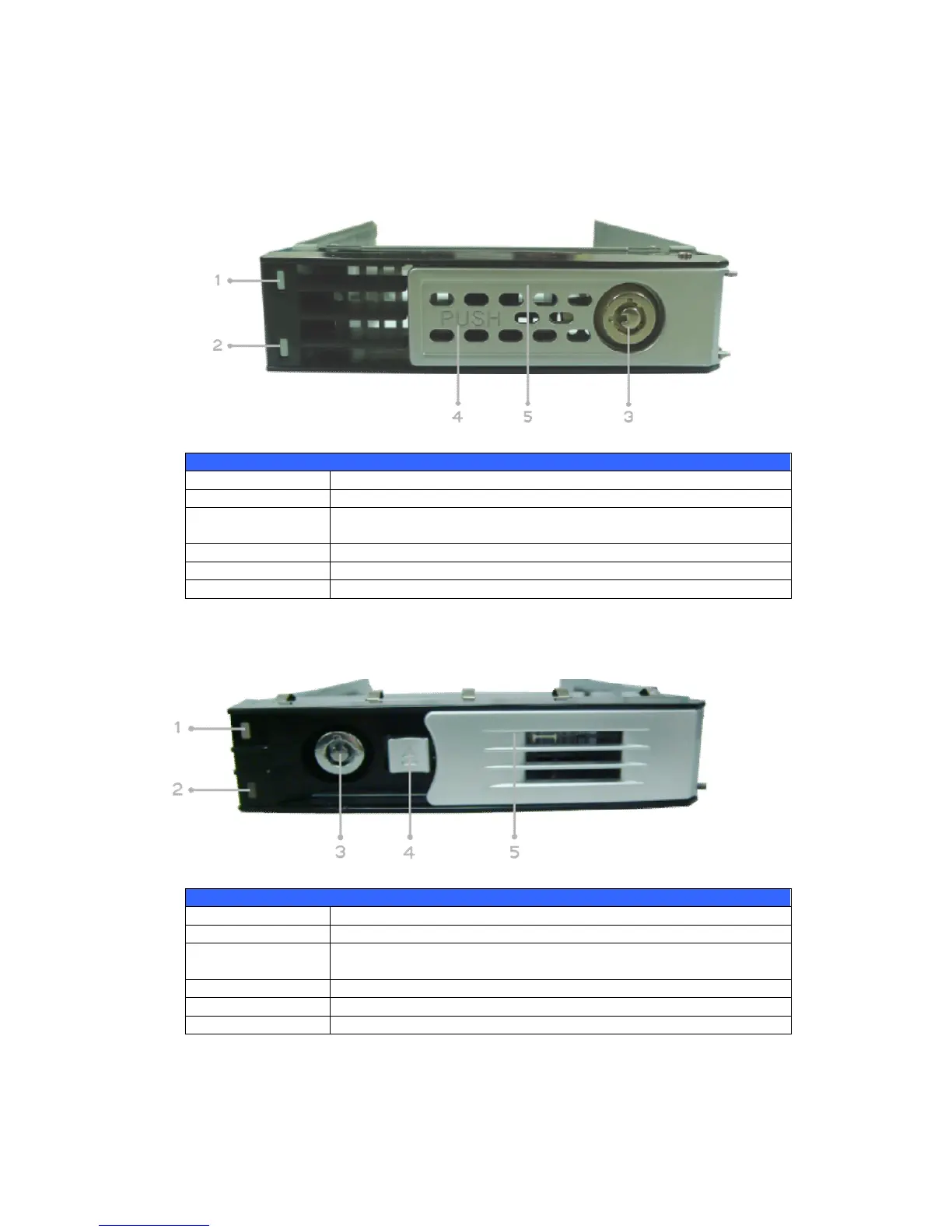

Hard Disk Trays
1U4200XXX/N2200XXX/N8200XXX/N8900:
Each of above mentioned models’ hard disk trays has a lock, a latch, and two LED
indicators:
Hard Disk Trays
Item Description
1.HDD Power LED  Solid blue: Hard disk is powered on
2.HDD
Access/Error LED
 Blinking green: System is accessing data on the hard disk
 Solid red: HDD fail
3.Lock  Use the lock to physically secure the hard disk to the unit.
4.Latch  Use to open and remove or close and secure the tray.
5.Handle  Pull to remove the HDD tray.
1U4600/N7700 series/N8800series:
Each of mentioned above models hard disk trays has a lock, a latch, and two LED
indicators:
Hard Disk Trays
Item Description
1.HDD Power LED  Solid blue: Hard disk is powered on
2.HDD
Access/Error LED
 Blinking green: System is accessing data on the hard disk
 Solid red: HDD fail
3.Lock  Use the lock to physically secure the hard disk to the unit.
4.Latch  Use to open and remove or close and secure the tray.
5.Handle  Pull to remove the HDD tray.
