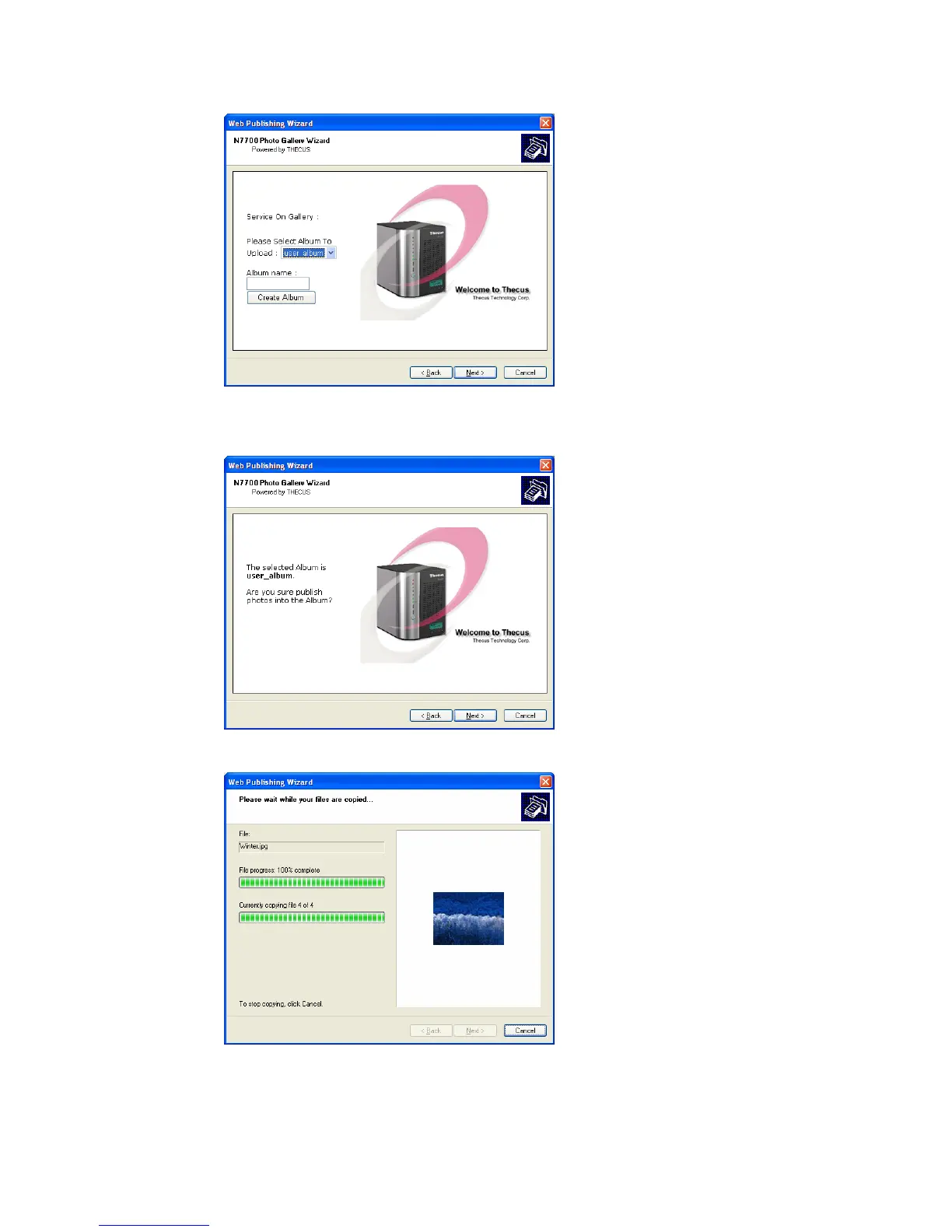

11. Select the album you want to upload your pictures to.

12. Confirm the target album.

13. Windows will show you that the picture upload is in progress.

105
