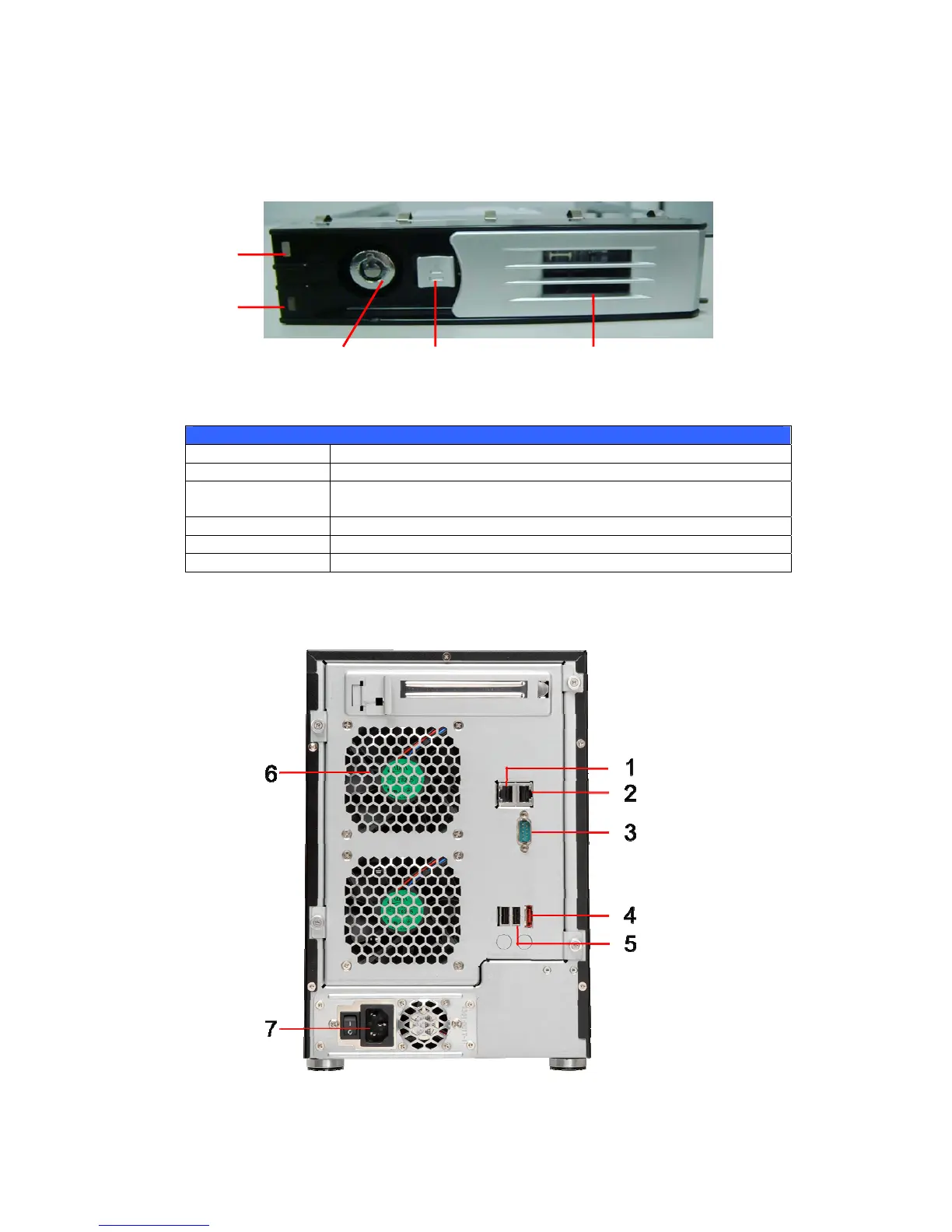

Hard Disk Trays
Each of the N7700’s hard disk trays has
a lock, a latch, and two LED indicators:
3 4 5
1
2
Hard Disk Trays
Item Description
1.HDD Power LED • Solid blue: hard disk is powered on
2.HDD
Access/Error LED
• Blinking green: system is accessing data on the hard disk
3.Lock • Use the lock to physically secure the hard disk to the unit
4.Latch • Use to open and remove or close and secure the tray
5.Handle • Pull out HDD tray
Rear Panel
The N7700 rear panel features ports and connectors.
