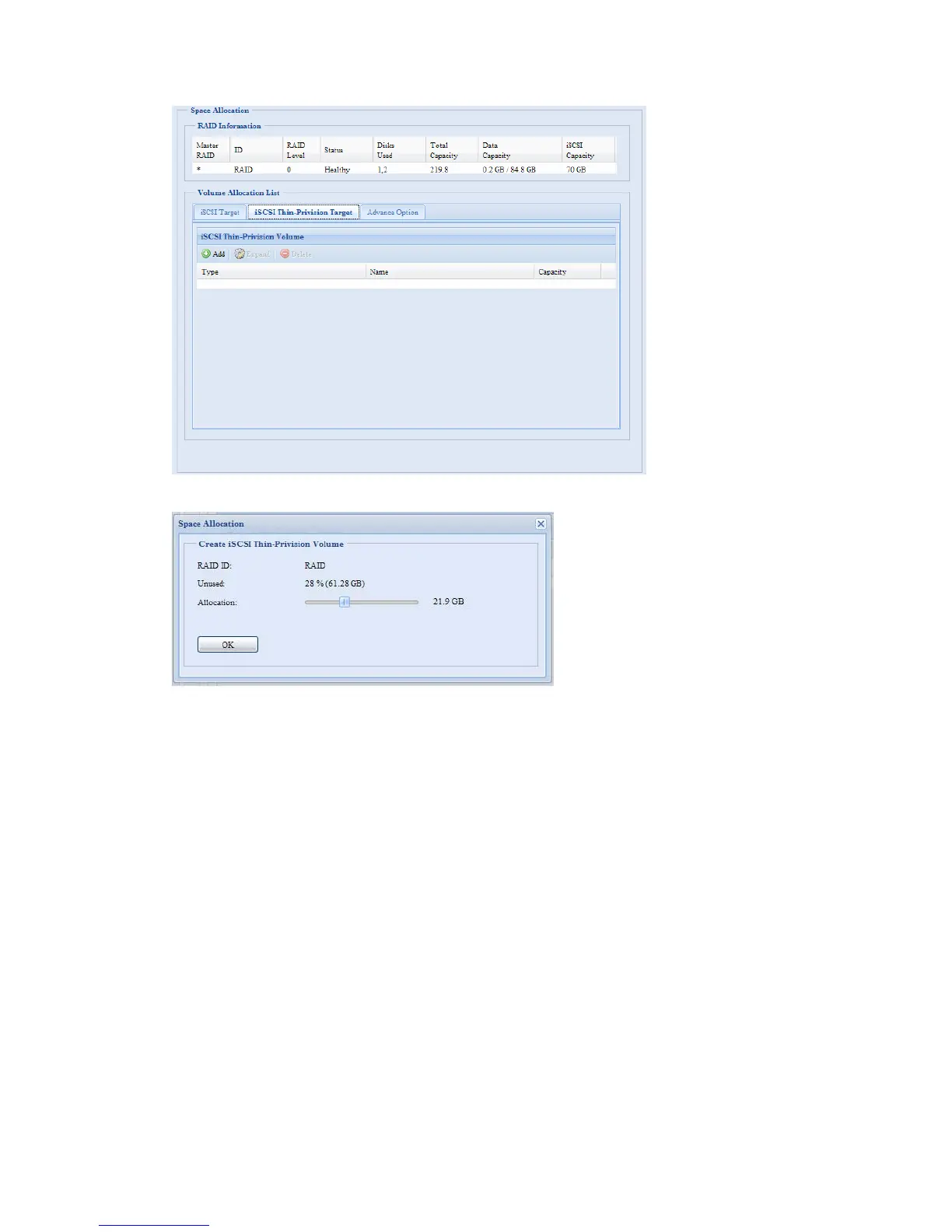

Next, setup the physical capacity for iSCSI thin-provision volume by dragging the

Allocation bar to the desired size.

After the size has been determined, click OK to confirm. Now you will see the iSCSI

thin-provisioning volume is available from the list. Please refer to the screenshot

below.
