11
Check Gas Type
Be sure your gas supply is right for your heater. Otherwise,
call dealer where you bought the heater from for proper type
heater.
Clearances to Combustibles
Carefully follow the instructions below. This heater is a
freestanding unit designed to be mounted on a wall.
WARNING: Maintain the minimum clearances shown
in Figure 4. If you can, provide greater clearances from floor,
ceiling, and joining wall.

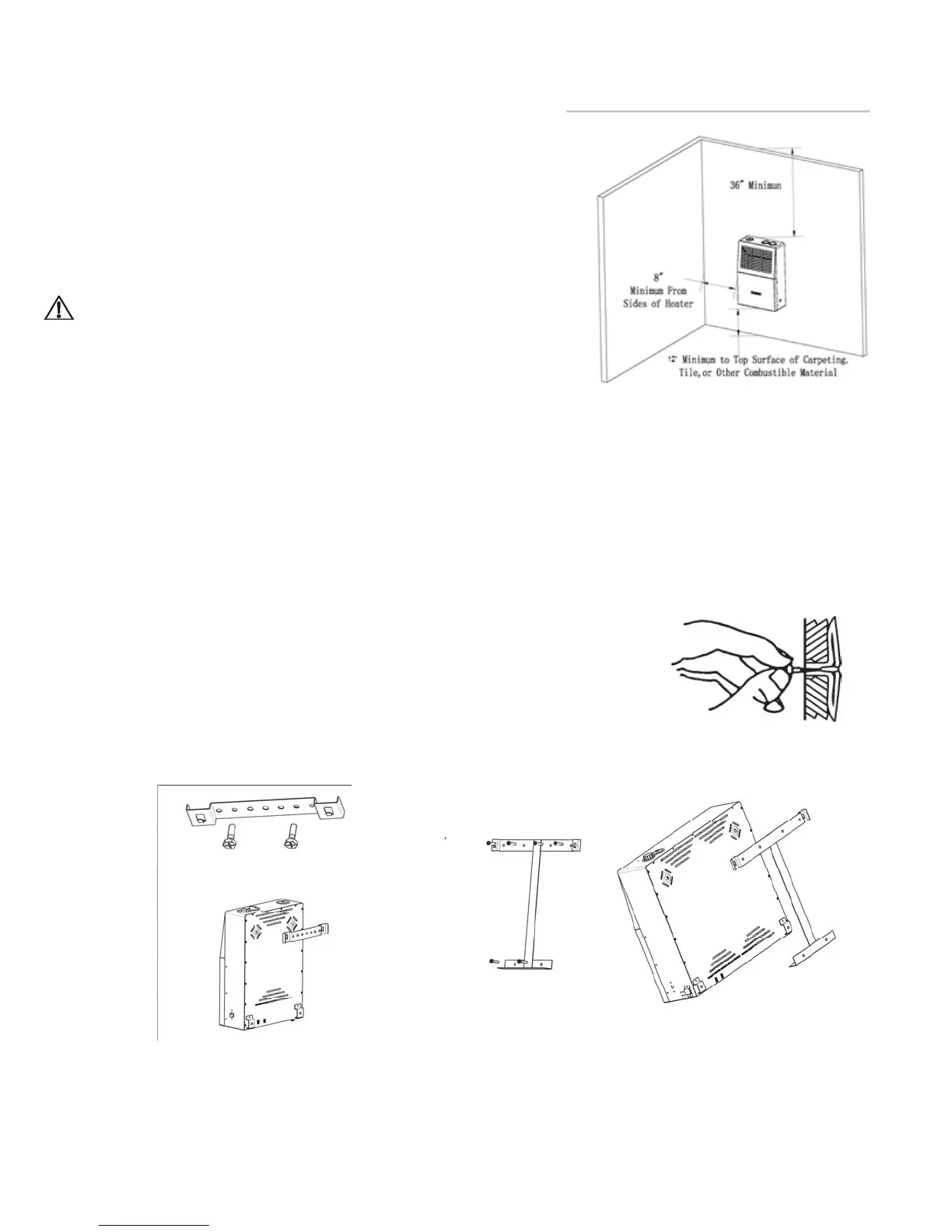

Figure 4 -
Mounting clearances from combustibles as viewed from front of heater (inches)
LOCATING HEATER
This heater is designed to be mounted on a wall. For convenience and efficiency, install heater:
1) where there is easy access for operation,
inspection, and service.
2) In the coldest part of room.
MOUNTING HEATER TO WALL
1. Mounting the Bracket
Mounting the attached bracket with folding anchor on desired location
2. Hanging the heater on the bracket, simply finished.
Figure 5 - Mounting holes Location
Figure 6 Mounting on wall 060/100-VF Figure 7 Mounting on wall 320-VF
