Page 7

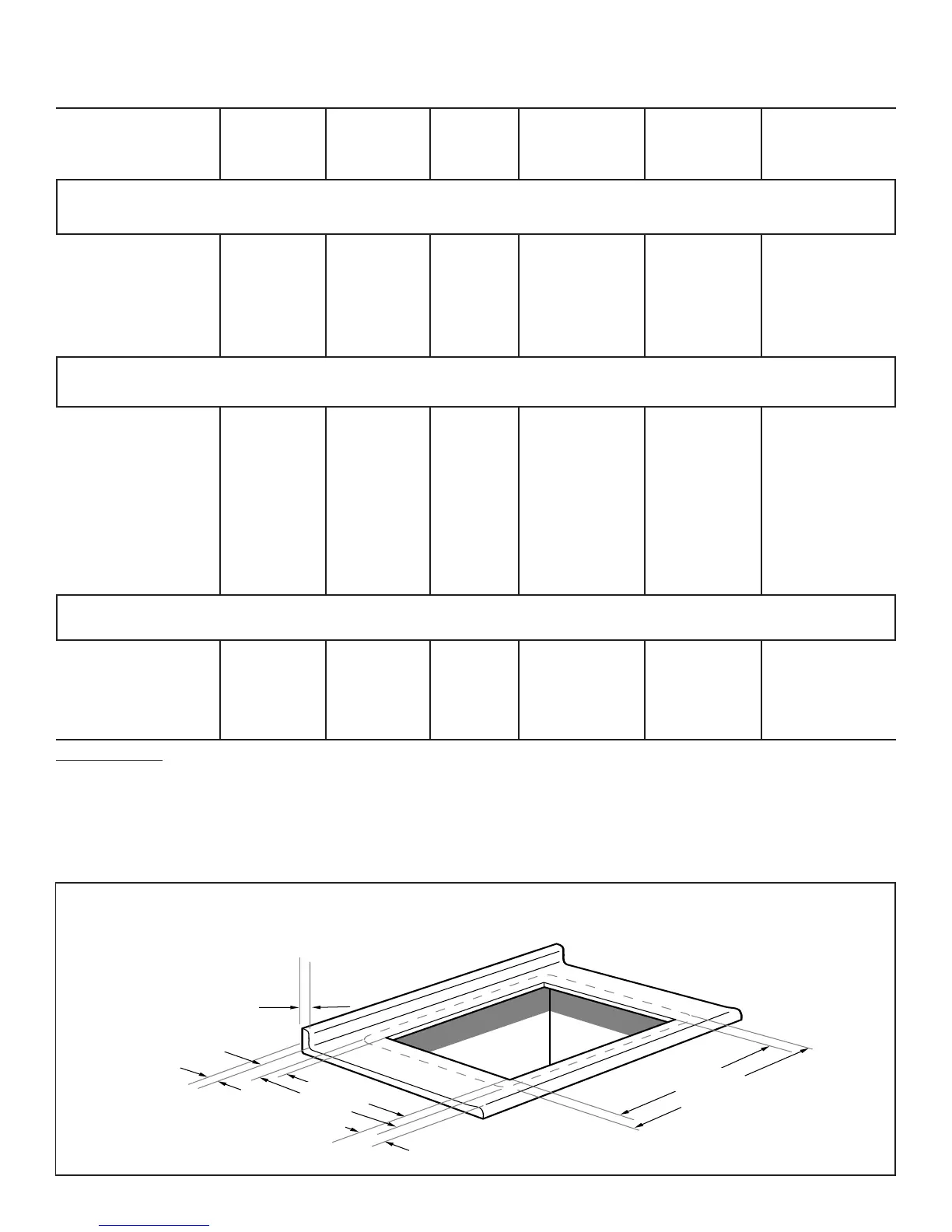

TABLE 3 (in inches)
CVS30R/ 36R/ 45R INSTALLATION DIMENSIONS WITH THERMADOR COOKTOPS
Table 3 Notes
* Dimension "SB" is the minimum distance from the leading edge
of the counter to the leading edge of the cutout.
++ Dimension "BT" is the thickness of back-splash that provides
1
/8" clearance between vent and backsplash. Any backsplash with
a curved radius where it meets the counter will require additional
clearance. Thicker backsplashes may be used by increasing the
counter and cabinet depths.
Cooktop CW CD OW OD SB BT, Max++
Model No. Cutout Cutout Overall Overall Minimum Backsplash
Width Depth Width Depth Set Back Thickness
30” Cooktops: Installed with CVS30R
SGC304* 28-5/8 21-15/16 30 23 2 21/32
SGCS304* 28-5/8 21-15/16 30 23 2 21/32
SGN30, SGS30 28-5/8 21-3/4 30 23-3/4 2-3/4 1/8
GGN30, GGS30 28-5/8 21-3/4 30 23-3/4 2-3/4 1/8
CER30, CEH30 28-5/8 22-9/16 30 23-1/4 1-3/4 9/32
TMH30 28-5/8 21-13/16 30 23-7/8 2-3/4 0
36”Cooktops: installed with CVS36R
SGC365R** 34-5/8 21-15/16 36 23 2 5/8
SGCS365R** 34-5/8 21-15/16 36 23 2 5/8
GGN36/365 34-5/8 21-3/4 36 23-3/4 2-3/4 1/8
GGS36/365 34-5/8 21-3/4 36 23-3/4 2-3/4 1/8
SGN36G 34-5/8 21-3/4 36 23-3/4 2-3/4 1/8
SGS36G 34-5/8 21-3/4 36 23-3/4 2-3/4 1/8
CER36Q 34-5/8 22-9/16 36 23-1/4 1-3/4 1/4
CEH365Q 34-5/8 22-9/16 36 23-1/4 1-3/4 1/4
TMH36G✝ 34-5/8 21-3/4 36 23-7/8 2-7/8 0
45” Cooktops: installed with CVS45R
SGC456R 43-5/8 21-15/16 45 23 2 5/8
SGCS456R 43-5/8 21-15/16 45 23 2 5/8
CEH456Q 43-5/8 22-9/16 45 23-1/4 1-3/4 1/4
TMH45P✝ 43-5/8 22-9/16 45 24 2-1/8 0
INSTALLATION WITH THERMADOR COOKTOPS OR WITH OTHER
COOKTOPS WHEN SPECIFIED (SEE PART B)
Figure 7
OW
BT
CW
CD
OD
SB
1/8"
BT
All dimensions are in inches and are based upon a standard
24" deep base cabinet with 25" countertop.
* * SGC and SGCS cooktops are 1" wider at center of cooktop than
shown in chart above.
Refer to cooktop Installation Instructions for complete informa-
tion prior to making any cutouts.
✝ Clearance is provided to allow raising of the hinged main top.
