INSTALLATION WITH OTHER COOKTOPS WHERE SPECIFIED
(SEE PART B)
Figure 8
The installer will need to have the cooktop installation
instructions available to complete the installation. All
cooktop dimensions should be verified through measure-
ment prior to cutting the countertop:
CCW = Cooktop Cutout Width
CCD = Cooktop Cutout Depth
COW = Cooktop Overall Width
COD = Cooktop Overall Depth
with the above dimensions confirmed, determine the cut-
out size as follows:
1. Find the cutout width, (CW):
If CCW is smaller than the CVS cutout width then:
Installation CW
CVS30 28
5
/8
CVS36 34
5
/8
CVVS45 43
5
/8
If CCW is larger than the CVS cutout width then:
CW = CCW
See Figure 8 for CVS cutout widths and dimension
definitions.
2. Calculate the cutout depth, CD:
Determine the cooktop overhang (CO)
CO = (COD-CCD)/2 (Assumes front and rear cooktop
overhangs are equal) Calculate the cutout depth,
(CD):
CD = COD - CO+1
7
/8"
3. Determine setback (SB) distance from front of
countertop to front of cutout. SB is specified in the
installation instructions shipped with the cooktop.
4. Backsplash thickness must not exceed BT as calcu-
lated below:
BT = 24
7
/8" - OD-SB+CO
(Provides
1
/8" clearance between vent and backsplash.)
A negative value for BT means countertop is too small
for the installation.
5. Verify that the available flat countertop has a width
greater than OW and a depth greater than OD.
OW depends on the installation:
CVS30: OW equals the greater of COW or 30".
CVS36: OW equals the grewtaer of COW or 36".
CVS45: OW equals the grewtaer of COW or 45".
OD is determined by: OD=COD+2
1
/8".
6. Cut countertop using dims: CD, CW and SB as
defined in Figure 8.

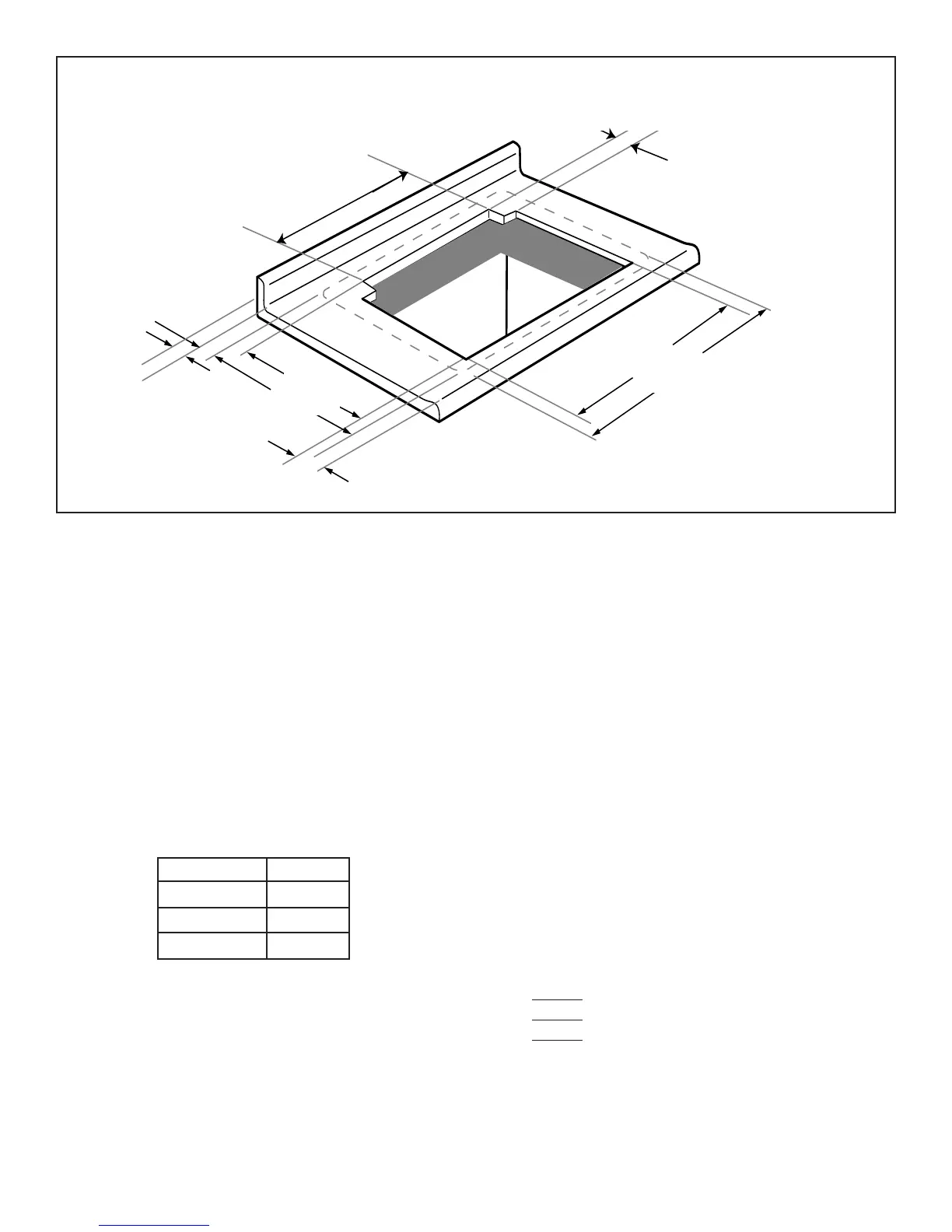

B. INSTALLATION WITH ANOTHER BRAND OF COOKTOP (Figure 8)
34-5/8" - CVS36
OW
CW
28-5/8" - CVS30
1/8"
OD
CD
SB
2-1/16"
BT
43-5/8" - CVS45
