INSTALLATION OPTIONS
INSTALLATION ABOVE A WALL OVEN OR
WARMING DRAWER
Thermador Masterpiece
®
Gas Cooktops may be
installed above a Thermador Single Built-in Oven
as long as there is no contact between the bottom
of the cooktop and the top of the oven.
Thermador Masterpiece Gas Cooktops may also
be installed above a Thermador Warming Drawer
to create a convenient cooking center. Refer to the
warming drawer section for additional specications.
IMPORTANT
We strongly recommend the installation of a
Thermador Ventilation System with this gas cooktop.
Seal the surfaces of the cutout to make them heat
resistant. This prevents the surfaces from expanding
as a result of humidity.
Solid surface countertops require a special cutout size
and special installation. For example, heat reective
tape or rounded corners may be necessary. Contact
the countertop manufacturer for instructions specic
to your countertop.
NATURAL GAS OR LP
Thermador Masterpiece Gas Cooktops are shipped by
the factory to operate on natural gas. They must be
converted for use with propane. Verify the type of gas
being used at the installation site matches the type
of gas used by the appliance. If the location/job site
requires conversion from natural gas to propane (LP),
order SNLPKITF. Field conversion must be done by
qualied service personnel only. Please refer to the
LP Conversion Instructions for further information.

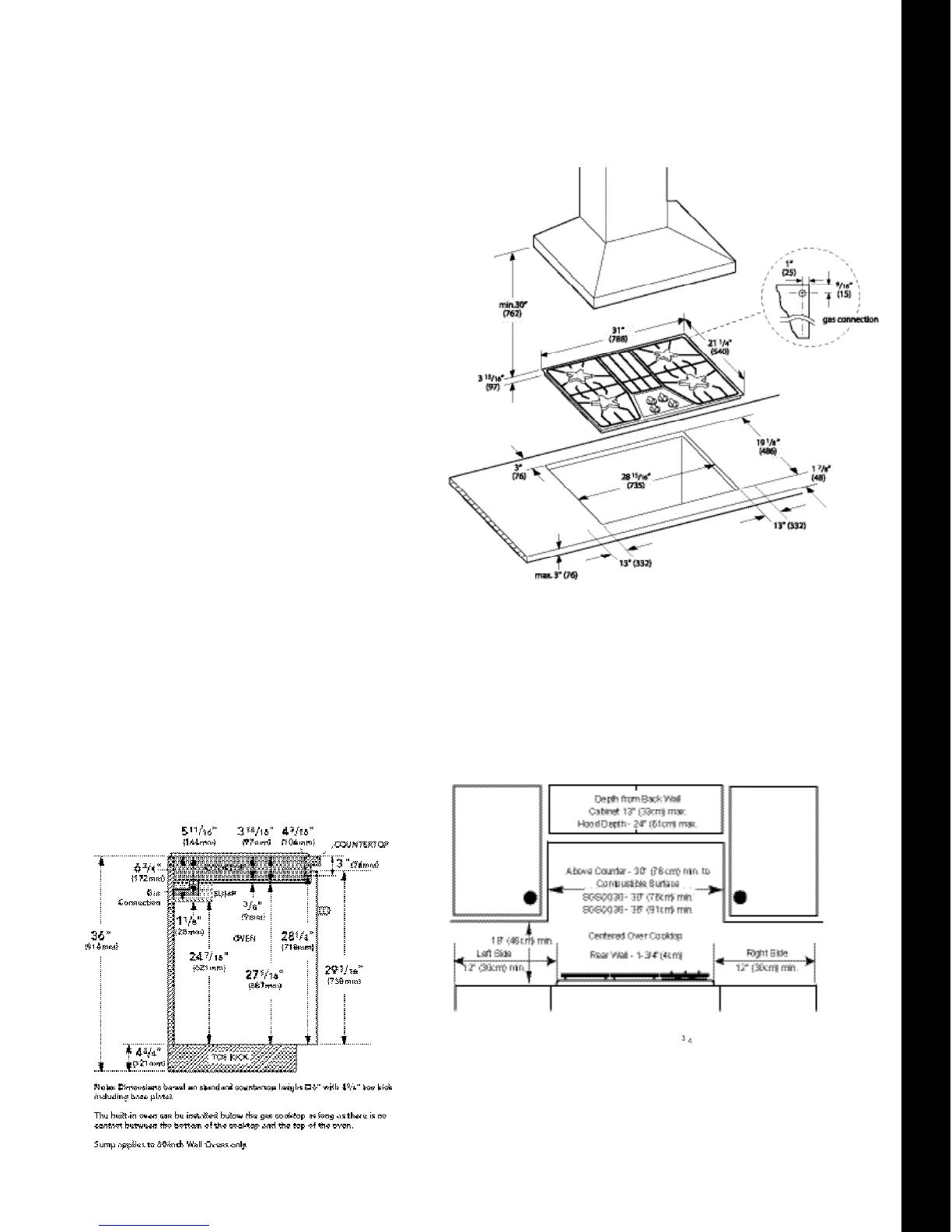

30-INCH COOKTOP AND CUTOUT DIMENSIONS
GAS COOKTOPS
30-INCH
SGS304FS
INSTALLATION ABOVE A THERMADOR
BUILT-IN OVEN
CABINET REQUIREMENTS
Dimension requirements are for combustible surfaces. When the surface
is protected by a material listed by UL as a Floor Protector and Wall
Shield covered with not less than No. 28 MSG sheet metal 0.015 inch
(0.38 mm) stainless steel, 0.024 inch (0.6 mm) aluminum or copper, it is
considered noncombustible and some dimensions may be reduced. For a
noncombustible surface over the cooktop, the minimum clearance is 24"
(61 cm) rather than 30" (76 cm).
WARNING: To reduce the risk of ignition of nearby combustible materials, install the countertop with
a minimum distance of 12" (30 cm) from side walls and 1
3
/
4
" (4 cm) from back wall.)
NOTE: All measurements given have to be precisely followed. If nonstandard cabinets are used, make
sure they are installed with minimum dimensions shown.
Plan the installation of the unit so that the power cord, gas shut-off valve and gas pressure regulator
are accessible from the front of cabinet.
