Installation Instructions
Blower Motor Installation
Integral blower installation only
1. The blower is attached to the hood using weld studs
provided on the mounting plate. Figure 5 exhibits the
weld stud locations.
2. Guide the motor mounting plate over the studs.
3. Attach four (4) nuts (included with hood) to the weld
studs. Tighten nuts to secure the blower to the hood.
4. Continue to “Wiring the Hood with an Integral Blower”
on page 12.
BLOWER SKU CFM*
VOLTAGE
(AC)
BLOWER
CURRENT
(AMPS)
CIRCUIT
BREAKER
(AMPS)
Integral Blower 600 CFM
VTN630C
600 120 2.7 15
Integral Blower 1000 CFM
VTN1030C
1000 120 5.4 15
Remote Blower 600 CFM
VTR630D
600 120 4.2 15
Remote Blower 1000 CFM
VTR1030D
1000 120 5.7 15
Remote Blower 1300 CFM
VTR1330E
1300 120 8.5 15
Inline Blower 600 CFM
VTI610D
600 120 4.2 15
Inline Blower 1000 CFM
VTI1010D
1000 120 5.7 15
* CFM= Cubic feet per minute
Table 5: Blower & Circuit Breaker Ratings

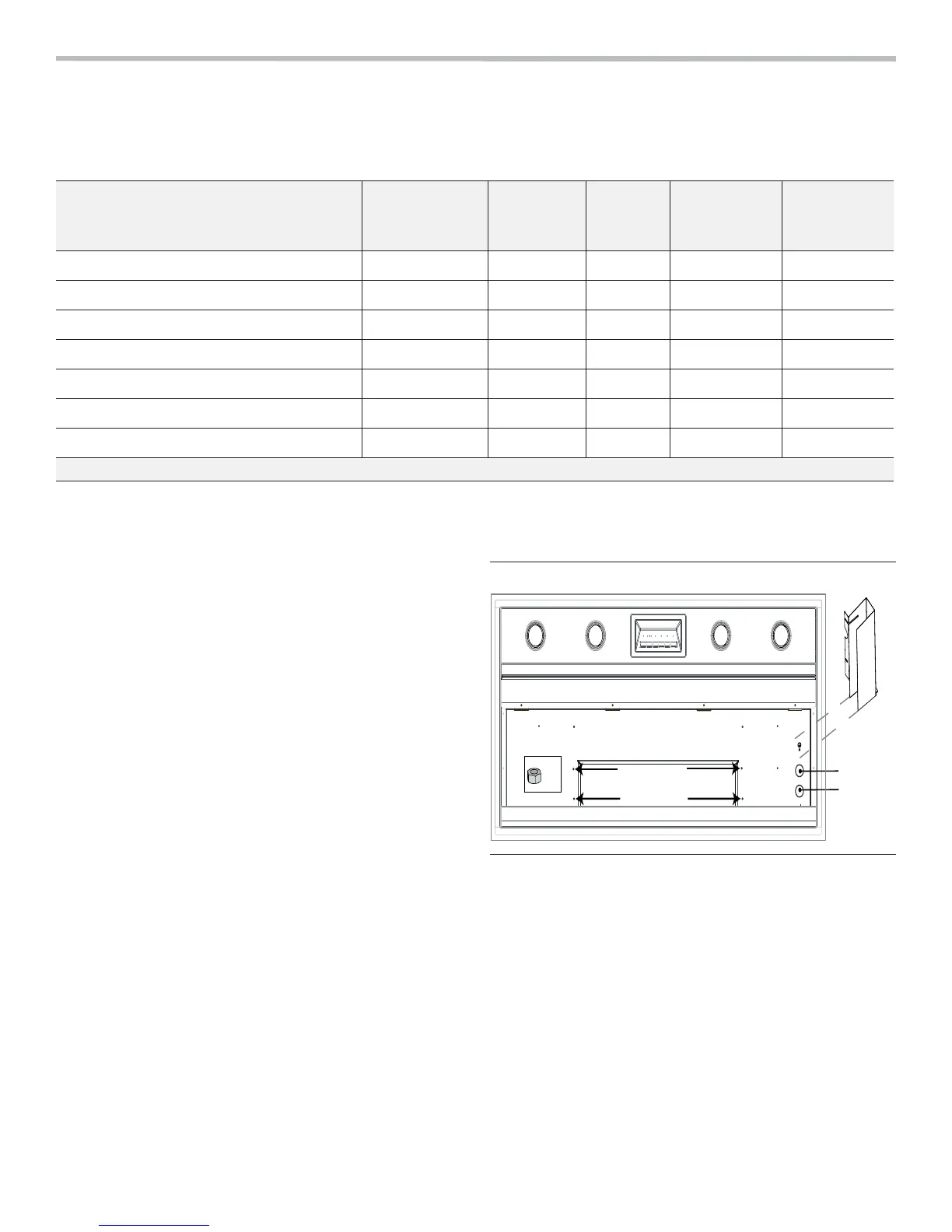

Figure 5: Weld Stud & Junction Box Locations
Knockouts
behind
junction
box
Weld Studs
x4
To Next Page
