TR2 RX
| Cable Management E5 O WW
ATX 12V 2.2 Version

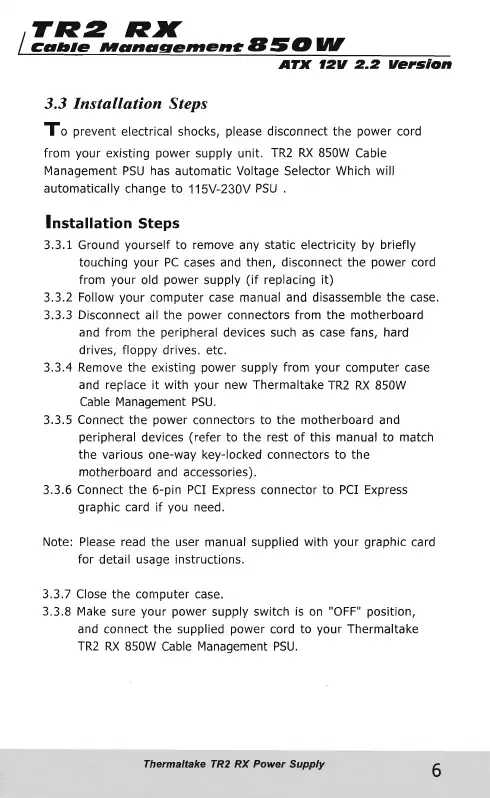

3.3 Installation Steps
To prevent electrical shocks, please disconnect the power cord
from your existing power supply unit. TR2 RX 850W Cable
Management PSU has automatic Voltage Selector Which will
automatically change to 115V-230V PSU .
Installation Steps
3.3.1
Sade
3.3.3
3.3.4
3.3.5
3.3.6
Note:
Ground yourself to remove any static electricity by briefly
touching your PC cases and then, disconnect the power cord
from your old power supply (if replacing it)
Follow your computer case manual and disassemble the case.
Disconnect all the power connectors from the motherboard
and from the peripheral devices such as case fans, hard
drives, floppy drives. etc.
Remove the existing power supply from your computer case
and replace it with your new Thermaltake TR2 RX 850W
Cable Management PSU.
Connect the power connectors to the motherboard and
peripheral devices (refer to the rest of this manual to match
the various one-way key-locked connectors to the
motherboard and accessories).
Connect the 6-pin PCI Express connector to PCI Express
graphic card if you need.
Please read the user manual supplied with your graphic card
for detail usage instructions.
3.3.7 Close the computer case.
3.3.8
Make sure your power supply switch is on "OFF" position,
and connect the supplied power cord to your Thermaltake
TR2 RX 850W Cable Management PSU.
Thermaltake TR2 RX Power Supply 6
