Thermia Calibra Cool User Manual

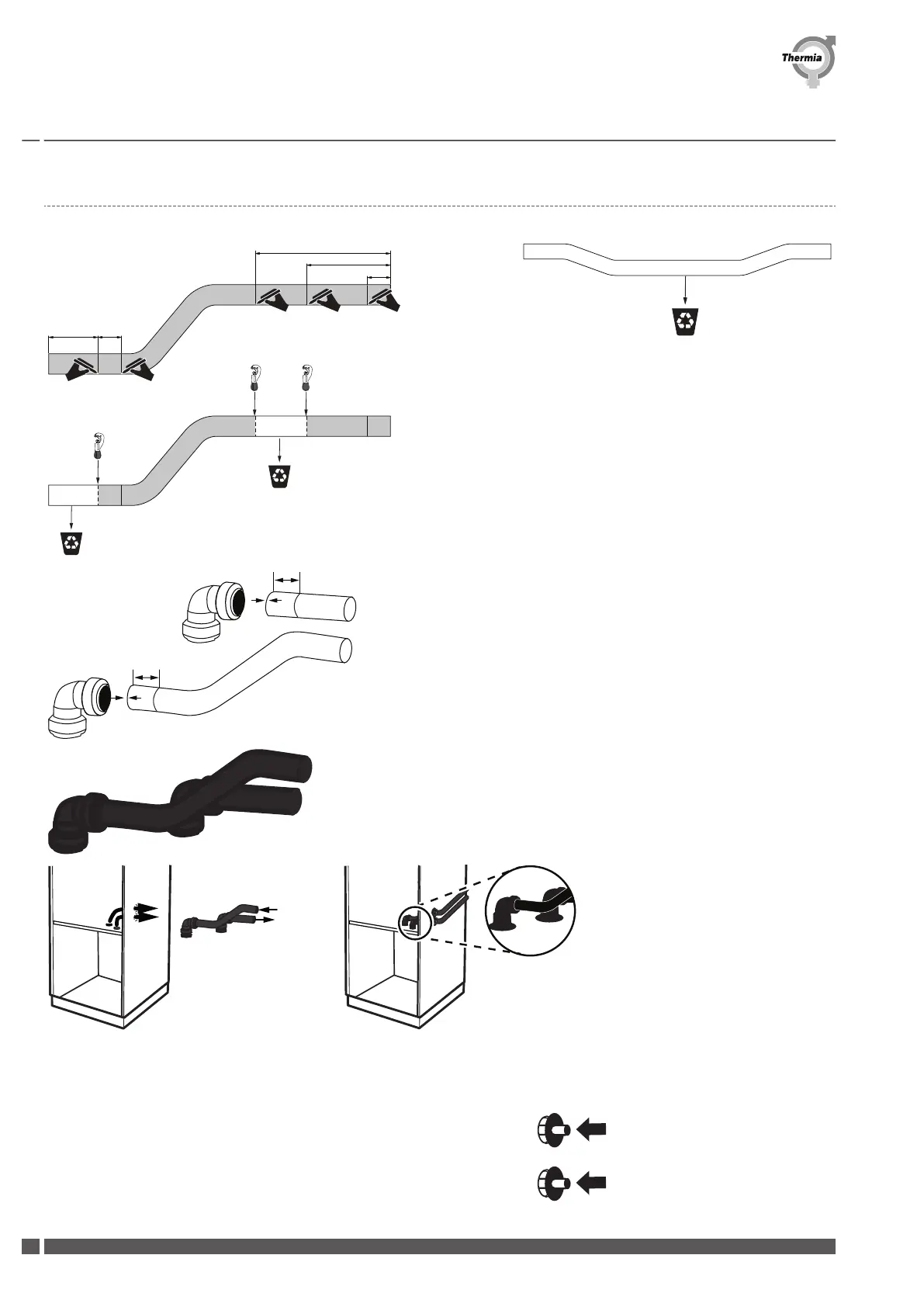

5.4 Alternative 2 (right)
For connection in to the right hand side "knockout holes".
184
67
32
114
32
32 mm
32 mm
1, Press the quick couplings (delivered with the heat pump) on to the pipes . Make sure
the coupling reach the 32 mm mark.
2, Insulate before mounting the pipes.
Brine IN
Brin OUT
3, Press the pipes on to the connections in the heat pump (see picture below). Install the insulated pipes from the inside of the heat
pump and out. Pay attention to which one of the pipes are brine in and brine out (the pipe connections are located behind the electri-
cal cabinet in the heat pump, remove the metal plate). Isolate with insulation tape so that it is partially seated against the plate.
4, Fit the rubber sleeves into the knockout
holes.
Installation Guide Calibra Cool
BWCC01IG0102 Thermia AB
18
