5.1.4 Pipe connections
NOTE: The pipe diameter is G 1/2" in all parts.
- Connect the pressure relief valve to the electric water heater inlet.
- Add the rubber gaskets supplied with the electric water heater at the end of the threads to ensure
there are no leaks from the joints.
1
5
6
2
4
7
8
9
3
4

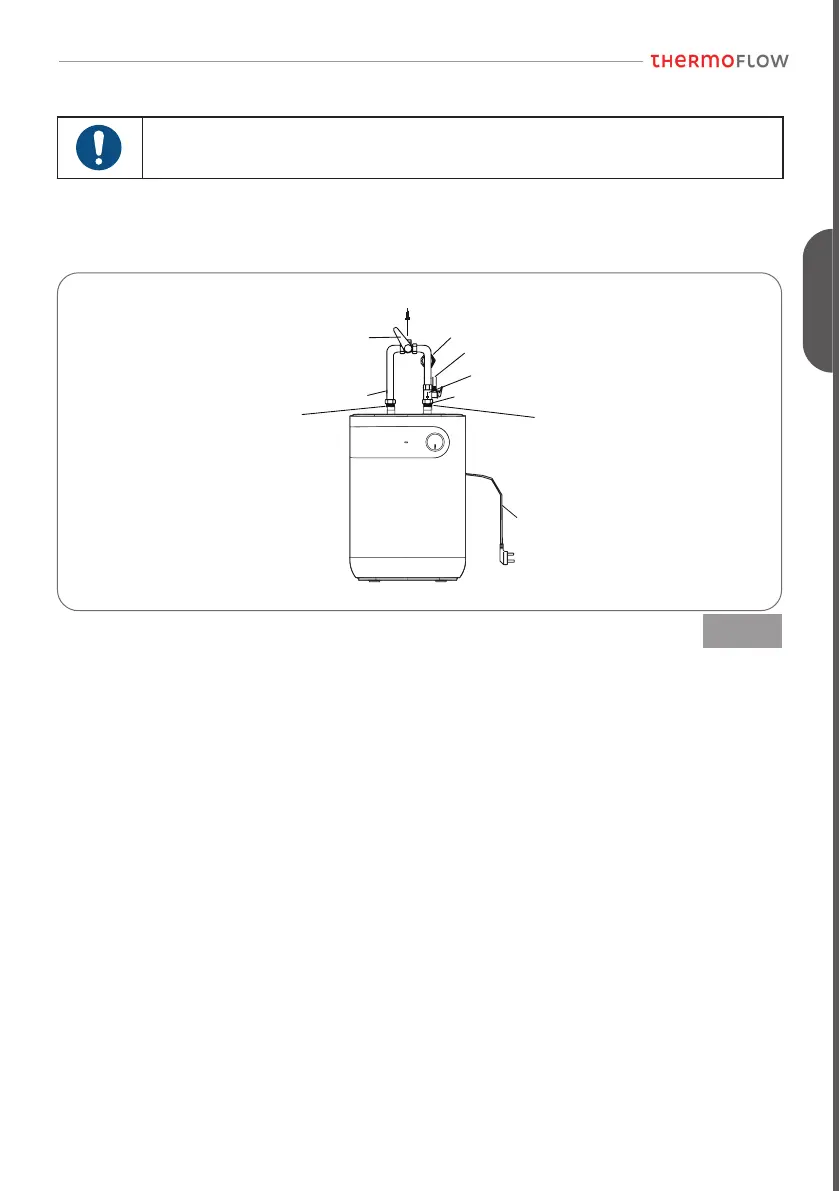

Fig. 5.3
1 - Power cord
2 - Hot water outlet
3 - Cold water inlet
4 - Rubber gaskets
5 - Hot water
6 - Mixing valve adjustment knob
7 - Cold water inlet connection fitting
8 - Pressure release hole
9 - Pressure relief valve
