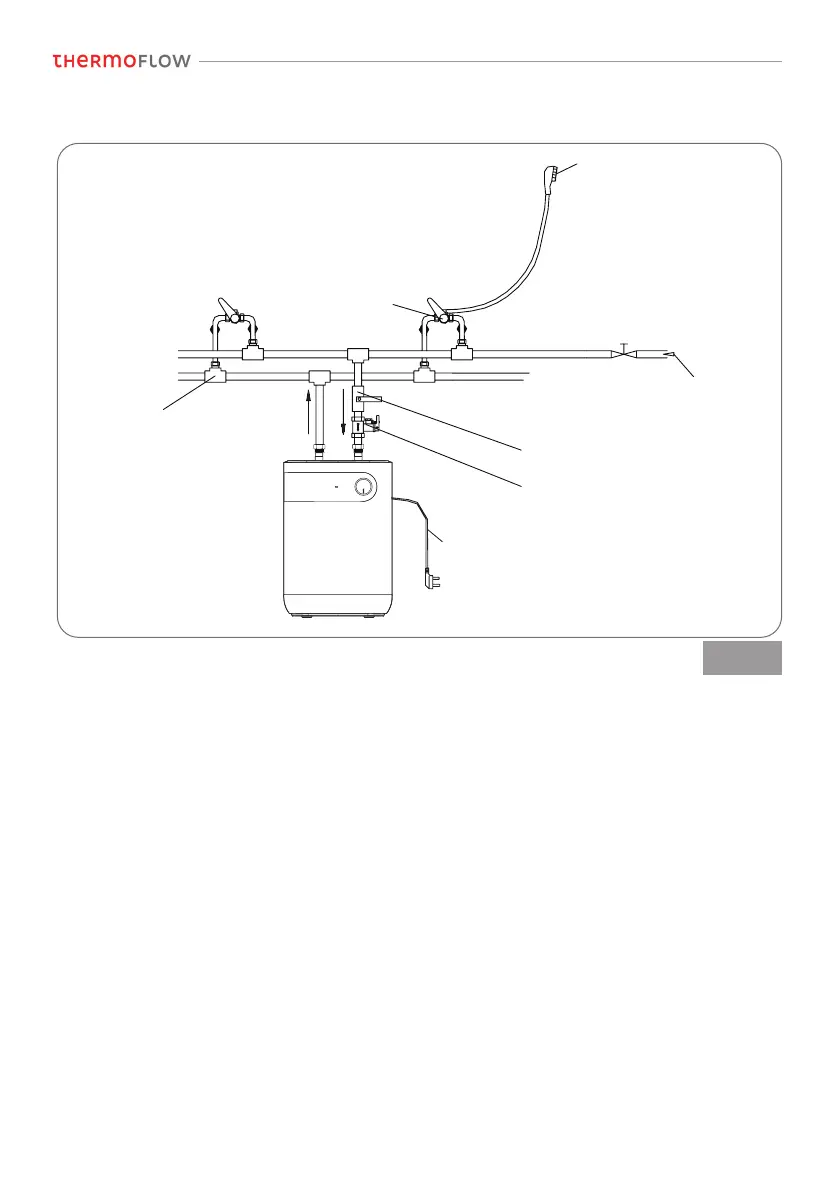

If the user wishes to create a multi-way supply system, refer to the method shown in the following figure
for connection of the pipes.
1
8
5
7
6
3
24
9
7
Fig. 5.4
1 - Power cord
2 - Hot water outlet
3 - Cold water inlet
4 - Triple joint
5 - Mixing valve
6 - Water pipe
7 - Water inlet valve
8 - Shower head
9 - Pressure relief valve
