ThermoFlow Elex 21 - Mounting Diagrams and Templates

8
Electric Tankless Instant Water Heater - Installation Manual and User Guide
EN
Mounting Instructions
Elex 6/8/8.5/9.6/10/12 (P)PEB and Elex 15PPEB
A3.

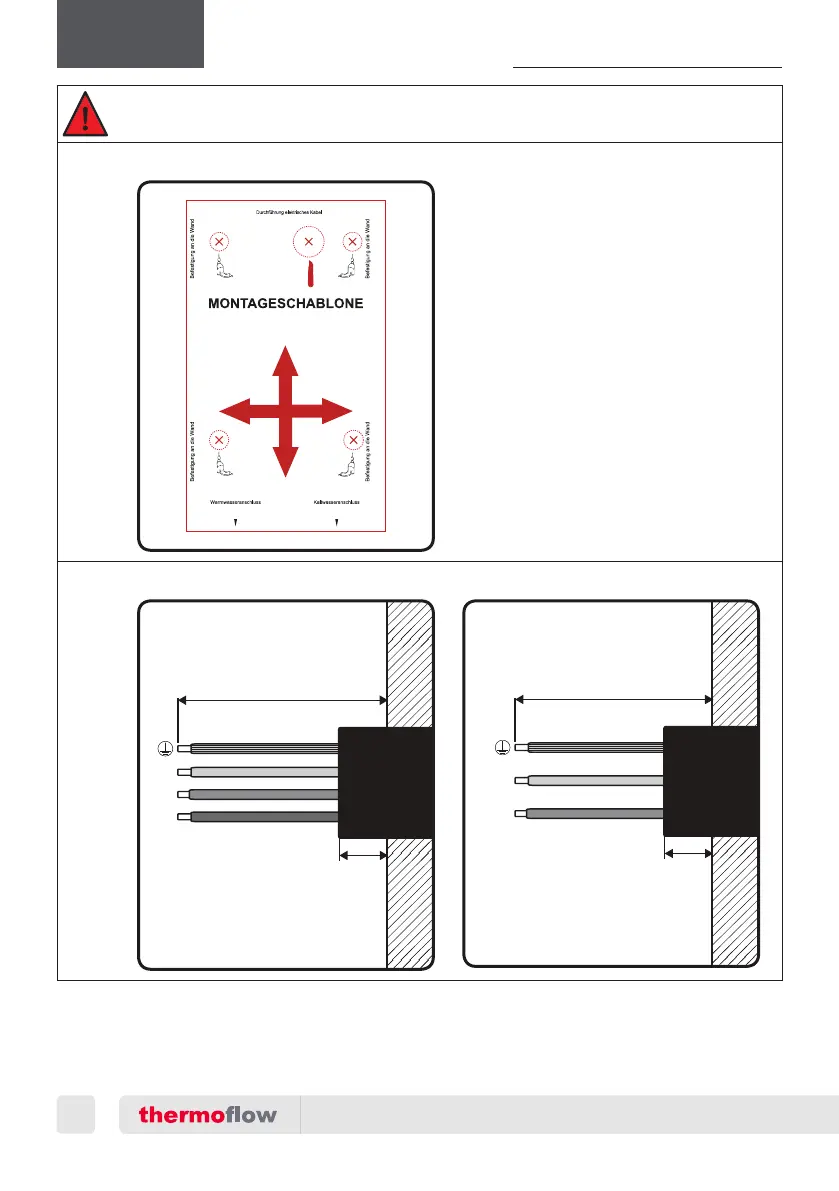

MOUNTING TEMPLATE
PLANTILLA DE MONTAJE
Connection to wall
Conexión a la pared
Warm water connection
Conexión de agua caliente
Cold water connection
Conexión de agua fría
Input electric cable
Cable de entrada eléctrico
Connection to wall
Conexión a la pared
Connection to wall
Conexión a la pared
Connection to wall
conexión a la pared
8mm / 5/16”8mm / 5/16” 8mm / 5/16”8mm / 5/16”
Mindestabstand zur Decke Minimum distance to the ceiling Distancia mínima al techo
10 cm
4”
10 cm
4”
10 cm
4”
20 cm
8”
Mindestabstand zur Wand
Minimum distance to the wall
Distancia mínima a la pared
Mindestabstand zur Wand
Minimum distance to the wall
Distancia mínima a la pared
Mindestabstand zum Boden
Minimum distance to the ground
Distancia mínima al suelo
A4.a.
3-Phase
25mm
(1”)
150mm (6”)
L1
L2
L3
A4.b.
Single-Phase
25mm
(1”)
150mm (6”)
L/L1
220-240V AC
N/L2
