Technical Manual
© 2006 by Thermoplan, Subject to change
Tiger REV-8
SECTION 3Menu navigation
By the delivery, the combination of keys are closed.
In order to reach into the programming evel, is a Tiger service master card necessary.
The technician can decide itself, whether he the combination of keys in the menu „6-3 Kbd. Menu Access “ would like to free-switch.
Combination of keys for the technican:
Press keys 2, 5 and 6 simultaneously to access the SL Technician Mode.
FUNCTION OF „STEP-
LEVERS“
In the programming mode you can step with the two levers.
Step backwards
turn left lever (Steam-/Milk) 1/4
Step forwards
turn right lever (neutral) 1/4
FUNCTION-
KEYS
In the programming mode the Standby/Stop key is used as an exit-key. You always get one step back
if you press this key (leaving the menu).
The cleaning key is used as an enter-key. By pressing this key you enter the next level (e.g. from menu
„1 Product statistics“ in submenu „1-1 Powder Cake“).

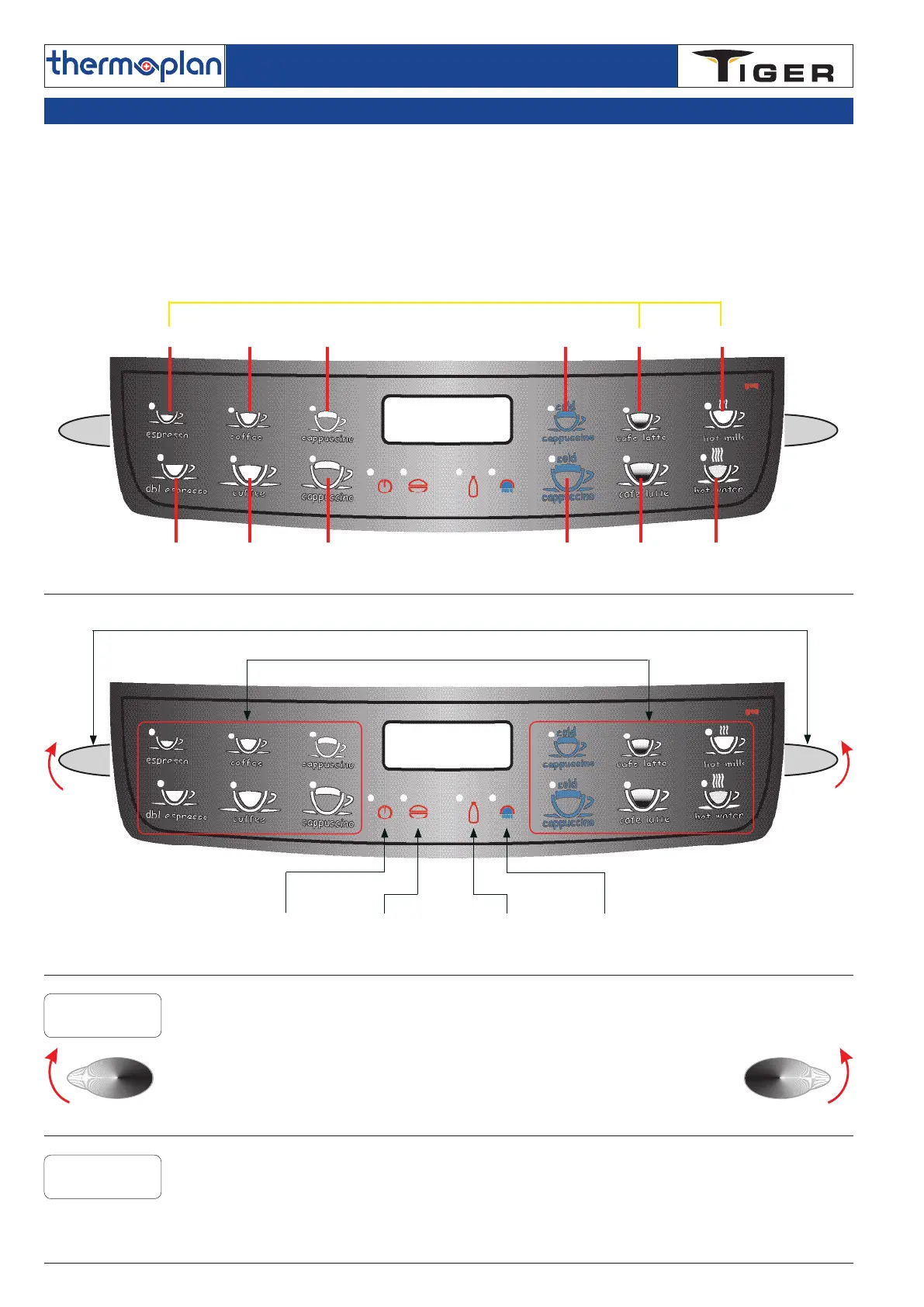

Key combination
Product-Keys
forwards
(+)
backwards
(-)
Stop/Exit
Key
Cleaning/Enter
Key
Mill change
Key
Milk change
Key
Key 1
Key 2
Key 3
Key 4
Key 5
Key 6
Key 7
Key 8 Key 9 Key 10 Key 11 Key 12
Levers
