Technical Manual
© 2006 by Thermoplan, Subject to change
Tiger REV-8
SECTION 3
Menu navigation
Key combination
Step-levers
forwards
(+)
backwards
(-)
exit-key
enter-key

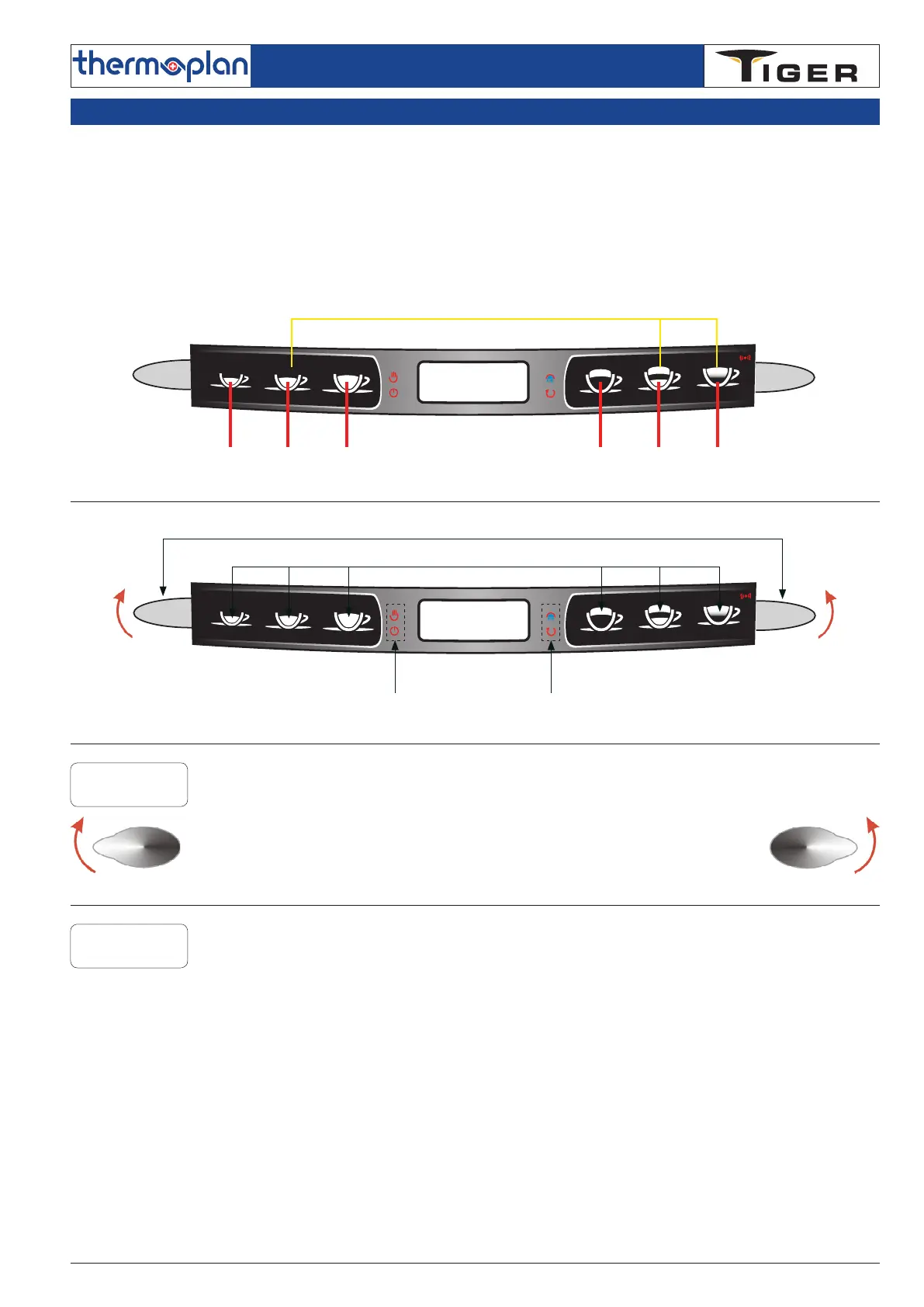

FUNCTION OF „STEP-
LEVERS“
In the programming mode you can step with the two levers.
Step backward
turn left lever (Steam-/Milk) 1/4
Step forward
turn right lever (hot water) 1/4
FUNCTION-
KEYS
In the programming mode the Standby/Stop key is used as an exit-key. You always go one step back
if you press this key (leaving the menu).
The cleaning key is used as an enter-key. By pressing this key you enter the next level (e.g. from menu
„3 Coffee Parameters“ in submenu „3-1 Powder Cake“).
Button 1
Button 2 Button 3
Button 4
Button 5
Button 6
By the delivery, the combination of keys are closed.
In order to reach into the programming evel, is a Tiger service master card necessary.
The technician can decide itself, whether he the combination of keys in the menu „6-3 Kbd. Menu Access “ would like to free-switch.
Combination of keys for the technican:
Press keys 2, 5 and 6 simultaneously to access the SL Technician Mode.
