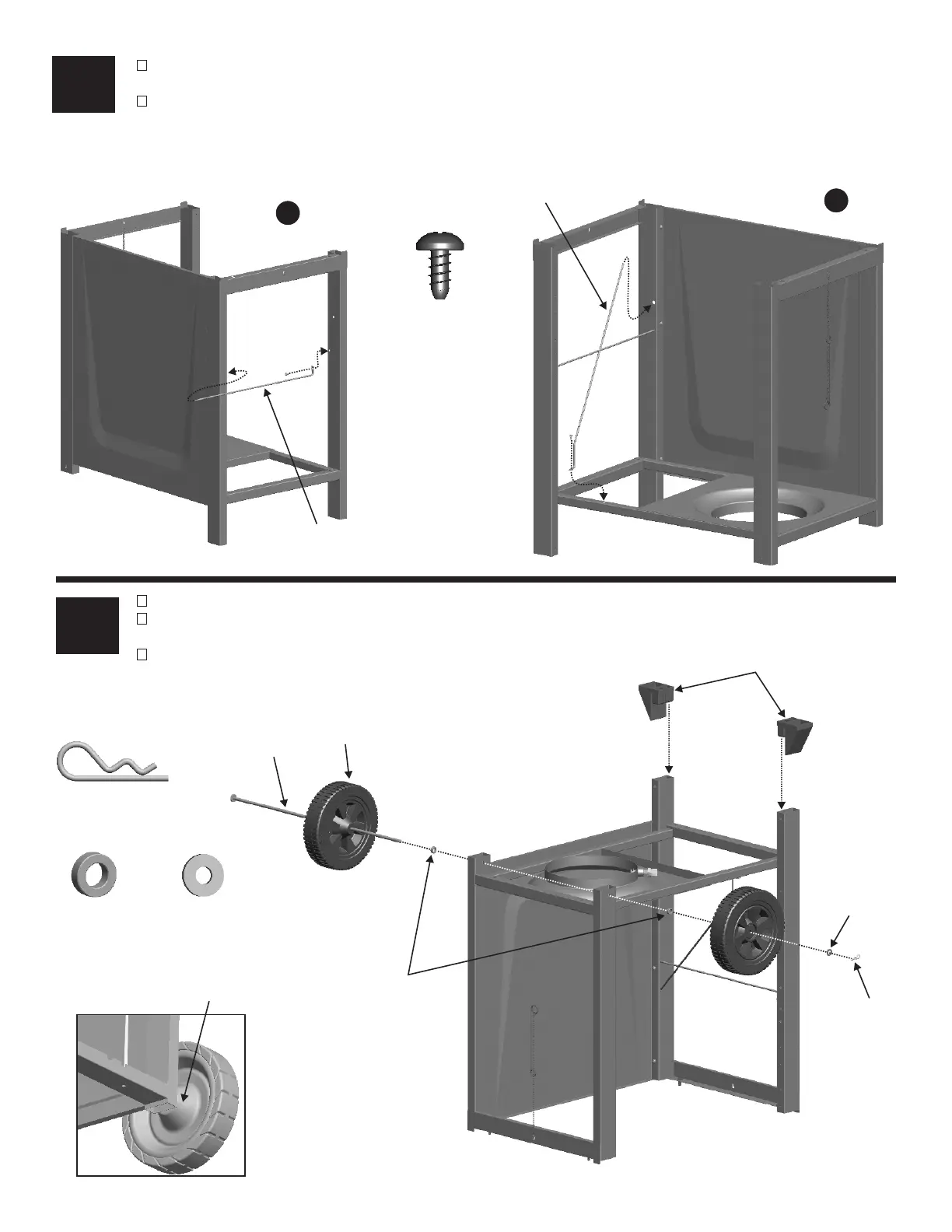

ASSEMBLY
Insert the straight end (without hole) of the long tank exclusion wire into the hole on right front leg. Attach the other end
(with hole) to bottom shelf with #8x3/8" sheet metal screw, as shown (B).
Insert the straight end (without hole) of the short tank exclusion wire into the hole on right front leg. Attach the other end
(with hole) to right rear leg with #8x3/8" sheet metal screw, as shown (A).
3
4
18
"Cone" side of wheel against leg
Axle Spacer
Qty: 2
Axle Washer
Qty: 1
1” Hitch Pin
Qty. 1
Axle Spacer
Hitch Pin
Axle Washer
Tank Exclusion Wire, Long
Turn assembly upside down.
Insert axle rod through wheel, legs and other axle Attach with (1) 8mm flat washer and
hitch pin.
Push leg extenders into right legs.
axle spacer, spacer and wheel.
Wheel
Axle Rod
Sheet Metal Screw
Qty. 2
#8x3/8"
Leg Extender
Tank Exclusion Wire, Short
B
A
