7X15
Fiber Washer
Qty: 4
1/4 -20x1/2"
Machine Screw
"
Qty: 4
1/4 -20
Flange Nut
"
Qty: 4

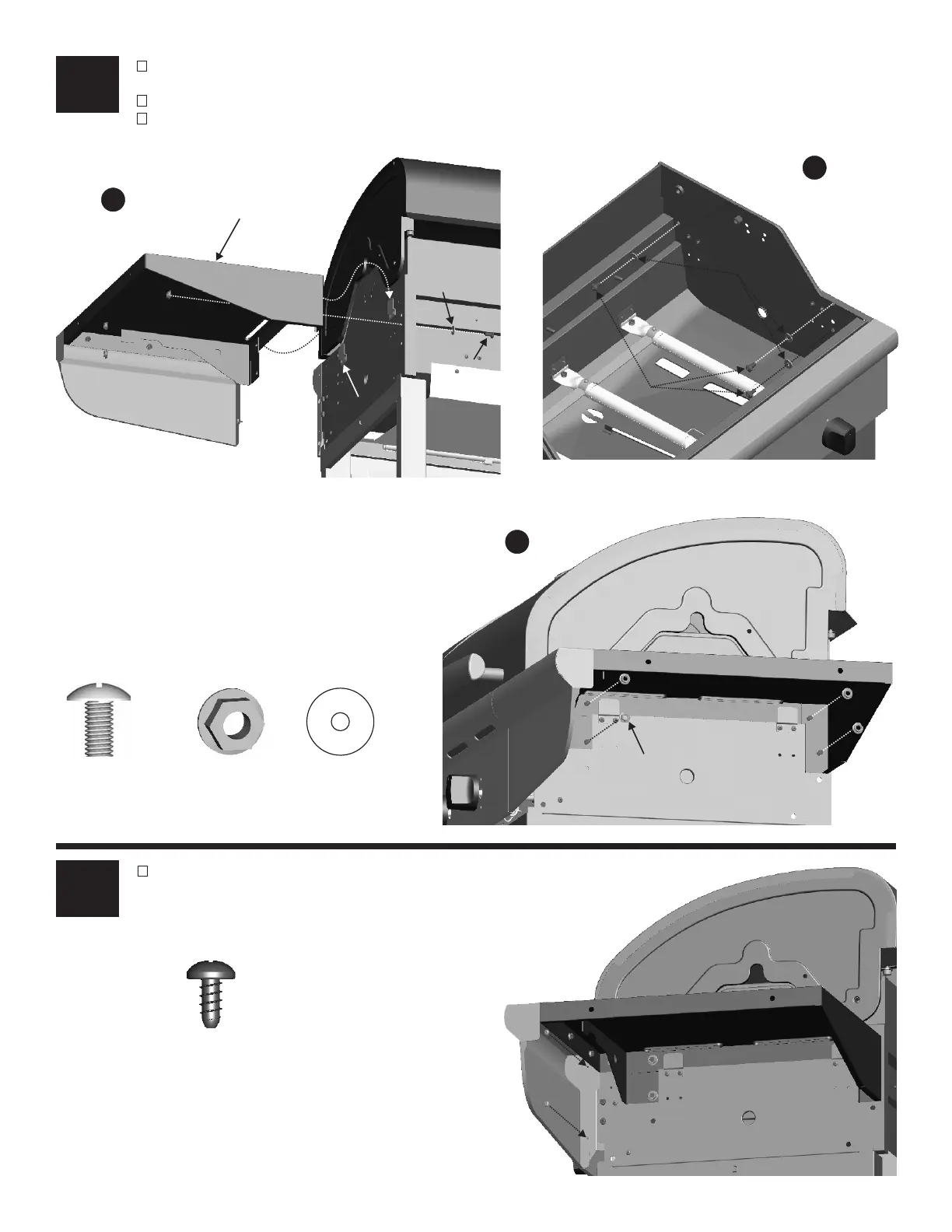

Hook side wall of shelf over support brackets on side of firebox. At back of firebox, insert (1) 7x15 fiber washer and
(1) (A).
Inside firebox insert (3) 7x15 fiber washers and (3) 1/4 -20x1/2" machine screws as shown (B).
Attach shelf with flange nuts on each side (C).
1/4"-20x1/2" machine screw as shown
"
1/4"-20
Attach fascia to firebox with #8x3/8" sheet metal screws.
6
7
Bracket
Right Side Shelf
C
20
Sheet Metal Screw
Qty. 2
#8x3/8"
B
A
Back of firebox
7mm
Fiber Washer
1/4-20x1/2"
Screw
1/4-20x1/2"
Screw
7mm
Fiber Washer
1/4 -20
Flange Nut
"
