16

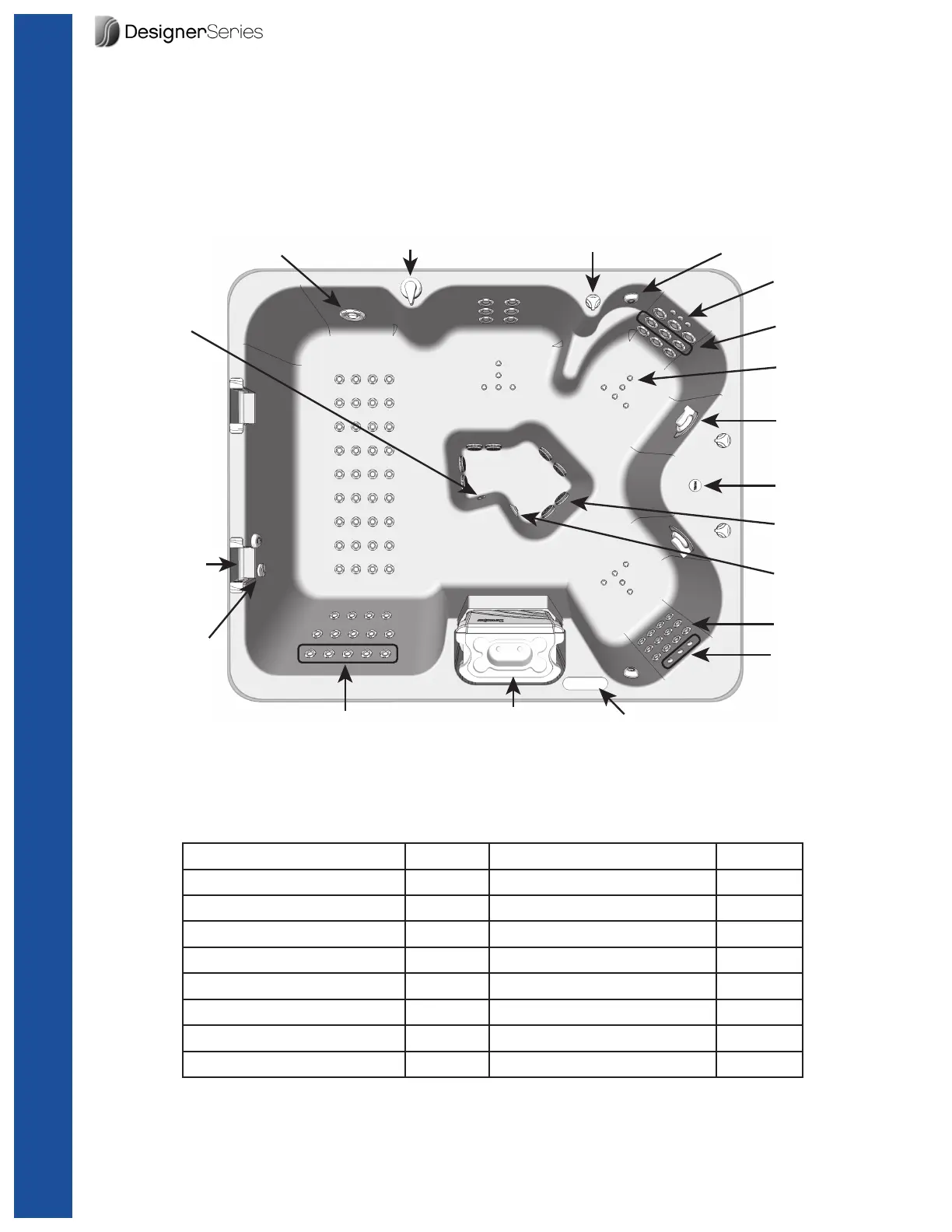

Spa Diagram
The illustration below shows a typical 5 person spa with multiple jet styles, a bubbling system, an
ozone system upgrade and an independent circulation/filtration pump system. If your spa was not
ordered with any of these features, the system components will not be found in your spa. These
illustrations are designed to help you identify key components. Use the legend to locate a partic-
ular component’s page number to see more details.
Blower Air Jets
Throttle
Control Valve
Aux. Pump
Control Panel
Laser Jets
Filter
Cover
Pulsator Jets
Grab Bar
Blower
Control Valve
Whirlpool Jet Diverter Valve
Therapy Control Valve
Suction Fitting
Ozone Ready Jet
Circulation Fitting
Pillow Jet Control Valve
Therapy Jets
Swirl Jets
Pillow Jets
(pillows removed)
Topside Control Panel
Part Page Part Page
Auxiliary Button 19 Pillow Jet Control Valve 21
Blower Air Jets 21 Pulsator Jet 23
Blower Control Valve 21 Swirl Jet 22
Diverter Valve 21 Therapy Jet 22
Filter Cover 36 Therapy Control Valve 21
Grab Bar 40 Throttle Control Valve 21
Laser Jet 23 Topside Control Panel 18
Ozone Ready Jet N/A Whirlpool Jet 24
