22

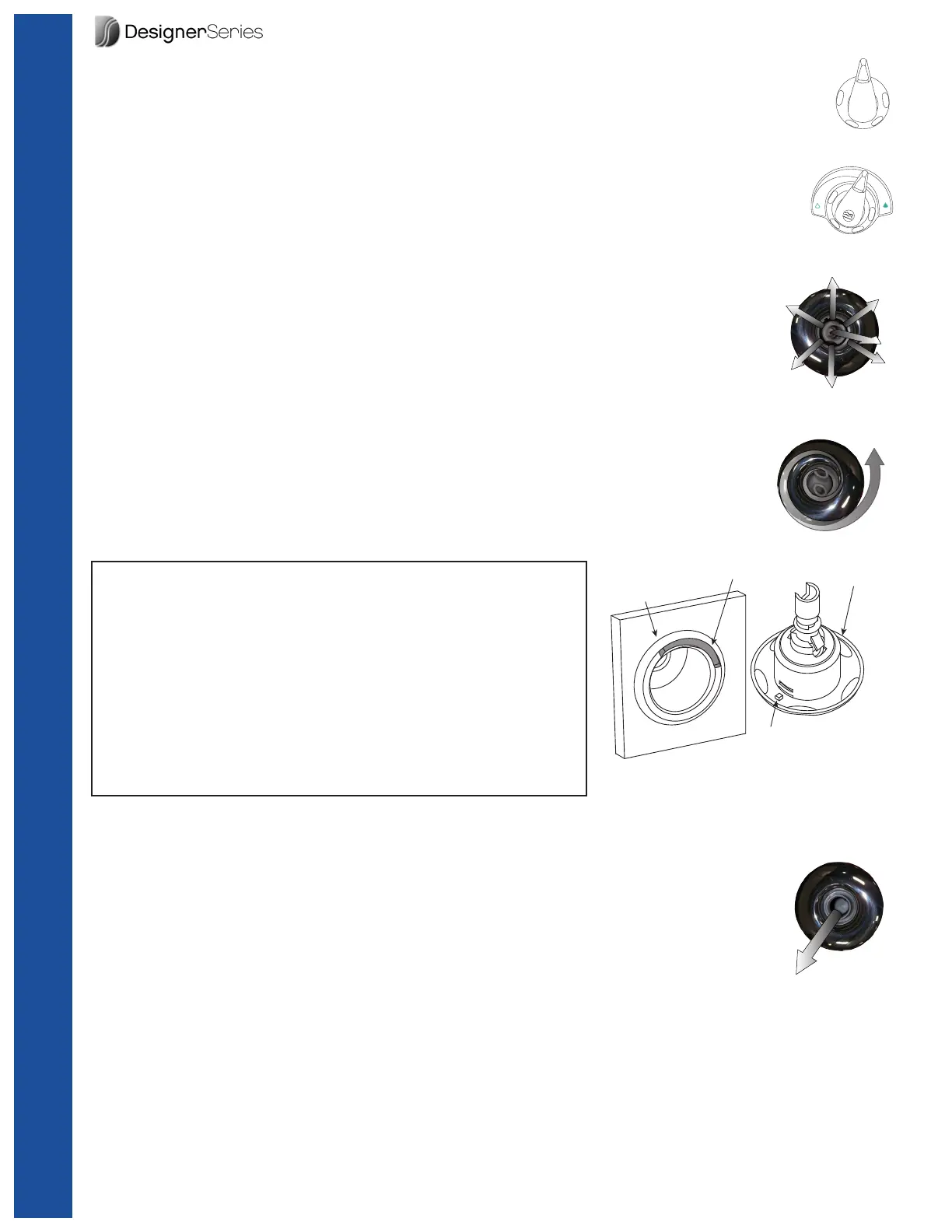

4. Diverter Valve (Figure 11)
Rotate valve to divert ow to specic sections of the spa.
5. Throttle Control Valve (Figure 12)
The Throttle Control Valve controls the jet intensity of an entire seat without
affecting others areas.
Jets
Therapy Jets
Popular spa jets with powerful directional streams. These are easily
controllable to give you just the right amount of massage. Turn the outer ring to
open or close the jet to control the power. The nozzle can be adjusted by simply
touching it and pointing it to the desired location on your body.
Swirl Jets
Pamper you with a swirling massage. The nozzle design swirls the water around
in a circular pattern, giving you an overall massage in a wide area. Power from
the jet is also controlled by turning the outer ring to open or close the jet stream.
NOTE: The Swirl Jet and Therapy Jet are interchange-
able and allow you to customize the feel of your water
therapy. To remove the Jet from the Jet Body, turn the
Jet counter-clockwise until you feel resistance. Continue
turning counter-clockwise and pull until the Jet pops out.
When inserting the Jet into the Jet Body, you must align
the On/Off Stop with the middle of the On/Off Stop Track
to insure proper seating of the Jet. Simply push the Jet
into the Jet Body until you hear it snap into place.
Diverting Whirlpool Jets
The same size and functionality as the standard whirlpool jet, but with the addition
of a diverting mechanism that permits you to direct the water ow to other jets in
the spa. The outer ring turns to open the jet all the way for maximum whirlpool
ow, or turn it to additional settings to divert water to different sections of the spa.
Figure 11
Low
High
T
OTA
L
C
O
N
T
R
O
L
T
H
ER
AP
Y
Figure 12
Therapy Jet
Swirl Jet
Jetback
in spa
On/Off
Stop Track
Jetface
On/Off Stop
Interchangeable Swirl
and Therapy Jets
Diverting Whirlpool Jet
Operating Instructions
