Getting Started
01
0,&
0,&
0,&
0,&
No. Name Description
1 Camera Lens Front facing camera for video recording
2 Mount Connector Connects to the windshield mount (refer to installation)
3 Security LED
Operation indicator lights that are used to visually indicate that the vehi-
cle is equipped with a dash cam
4 DC-IN Connects to power cable
5 Microphone Records audio along with video
6 Speaker Outputs voice guidance and alert/notication sounds
7 GPS Receiver Socket
Connects to external GPS receiver
(optional accessory that requires separate purchase)
8 REC Button
Short Press : Starts manual recording
Press and hold for 3 seconds : Audio recording ON/OFF
Press and hold for 5 seconds : Memory card format
9 Operation Status LED Indicates the device operating status
10 Memory Card Slot Location for the MicroSD memory card

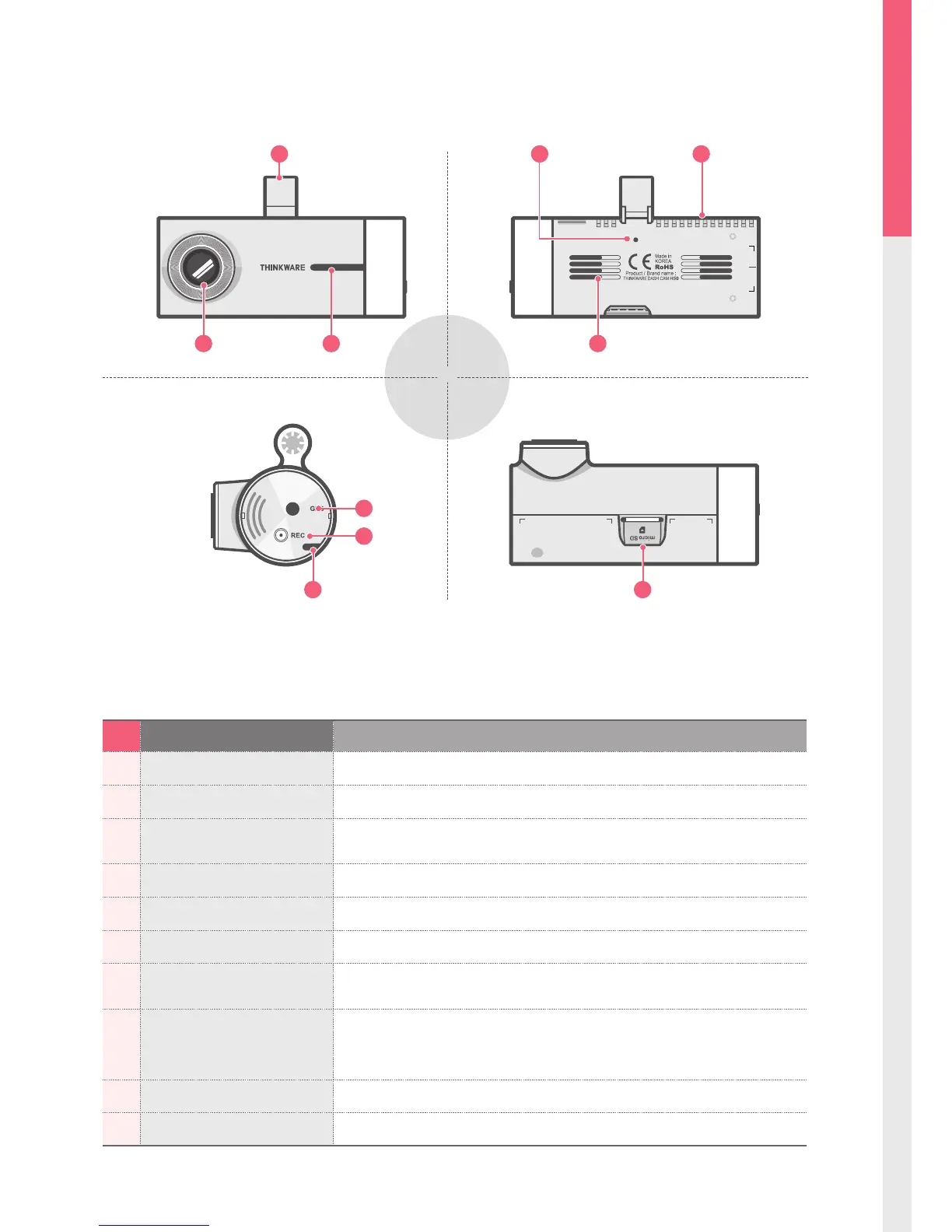

1-3. Product Overview
Front view
Left view
Rear view
Under view
42
3
9 10
1 6
7
8
5
