THK SHS-LE - Product Specifications

4-2
4. About Product
4. About Product
4-2

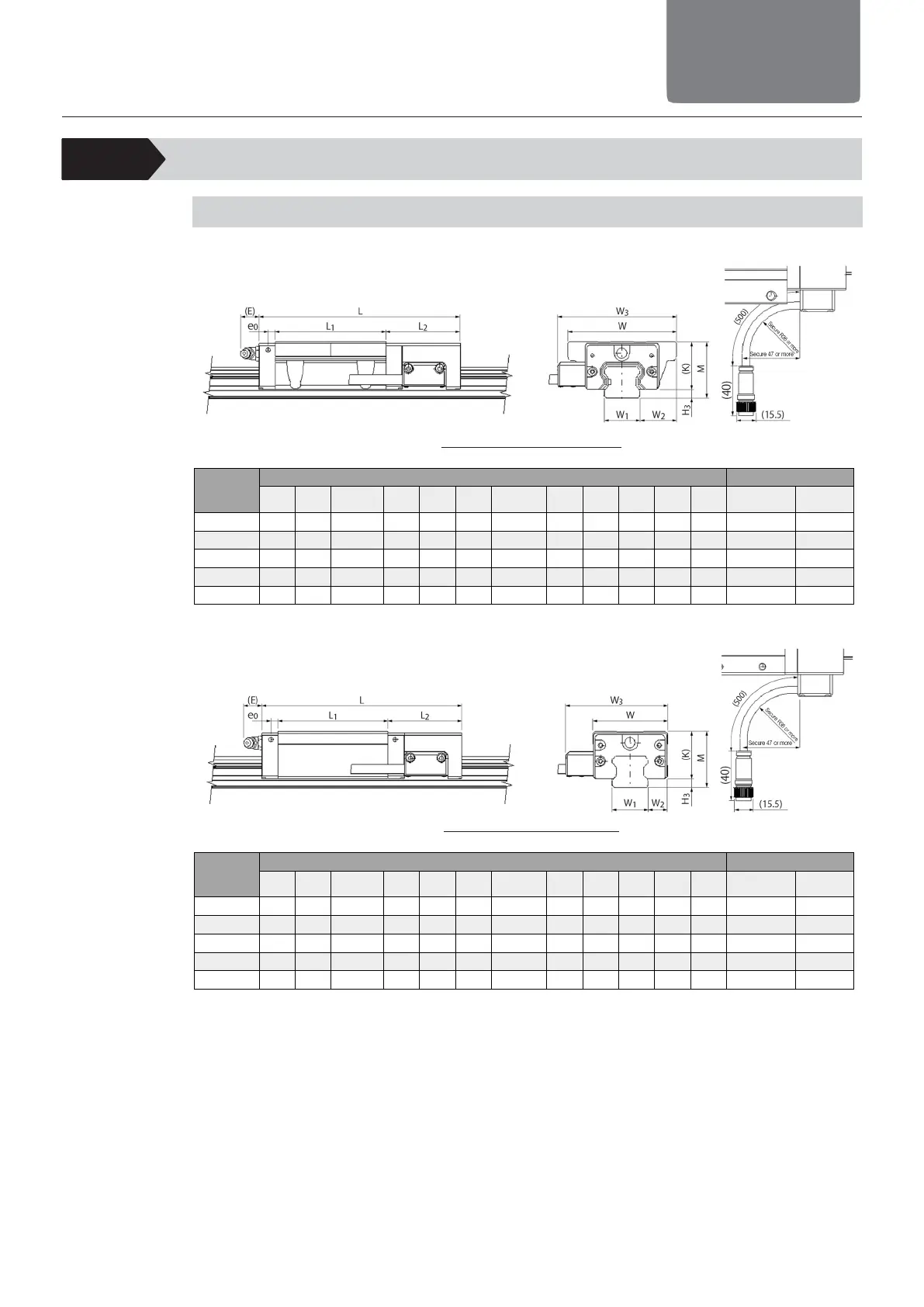

Product Specifications
4-2-1
Dimensions/Lineup
●Block type: C/LC
Fig. 4-3 Block type C/LC
Model No.
Dimension [mm] Mass
M W L W1 W2 W3 L1 L2 K H3 E e0
LM Block
[kg]
LM Rail
[kg/m]
SHS20C/LC
30 63 115 (134) 20 21.5 72 59 (78) 46 25.4 4.6 12 4.3 0.61 (0.76) 2.3
SHS25C/LC
36 70 129 (146) 23 23.5 76.3 71 (88) 47.5 30.2 5.8 12 4.5 0.89 (1.06) 3.2
SHS30C/LC
42 90 143 (168) 28 31 88.3 80 (105) 50 35 7 12 5.8 1.56 (1.88) 4.5
SHS35C/LC
48 100 162 (192) 34 33 96 93 (123) 54.5 40.5 7.5 12 6.5 2.18 (2.82) 6.2
SHS45C/LC
60 120 180 (214) 45 37.5 111.3 106 (140) 57 51.1 8.9 16 8 3.64 (4.59) 10.4
●Block type: V/LV
Fig. 4-4 Block type V/LV
Model No.
Dimension [mm] Mass
M W L W
1
W
2
W
3
L
1
L
2
K H
3
E e
0
LM Block
[kg]
LM Rail
[kg/m]
SHS20V/LV
30 44 115 (134)
20 12 62.5 59 (78) 46 25.4 4.6 12 4.3 0.5 (0.61) 2.3
SHS25V/LV
36 48 129 (146) 23 12.5 65.3 71 (88) 47.5 30.2 5.8 12 4.5 0.71 (0.84) 3.2
SHS30V/LV
42 60 143 (168)
28 16 73.3 80 (105) 50 35 7 12 5.8 1.16 (1.38) 4.5
SHS35V/LV
48 70 162 (192) 34 18 81 93 (123) 54.5 40.5 7.5 12 6.5 1.68 (2.12) 6.2
SHS45V/LV
60 86 180 (214)
45 20.5 94.3 106 (140) 57 51.1 8.9 16 8 2.94 (3.59) 10.4
*1 Values in brackets ( ) describe those for L Type
*2 The diameter of the attachment holes and attachment hole pitch on the rail should be the
same as those on SHS Type
Cable dimensions [mm]
Cable dimensions [mm]
