7-2
7. Cables and
Wiring
7. Cables and Wiring
7-2
Minimum bending radius
Handling of Encoder Cable
The encoder cable is a bending resistant type with the minimum bending radius R36. Pay
attention to the following points when installing.
Note) If the installation is inappropriate, it may cause earlier line breakage.
●Cable Twist
Cables should be wired straightly without any twist.
Fixing or bending of cable while twisted may cause earlier line breakage.
●Fixation of Cable
Do not attempt to fix a cable where it moves.
Load will be concentrated at the fixed part, which may cause earlier line breakage. Fixing
points should be as minimum as possible.

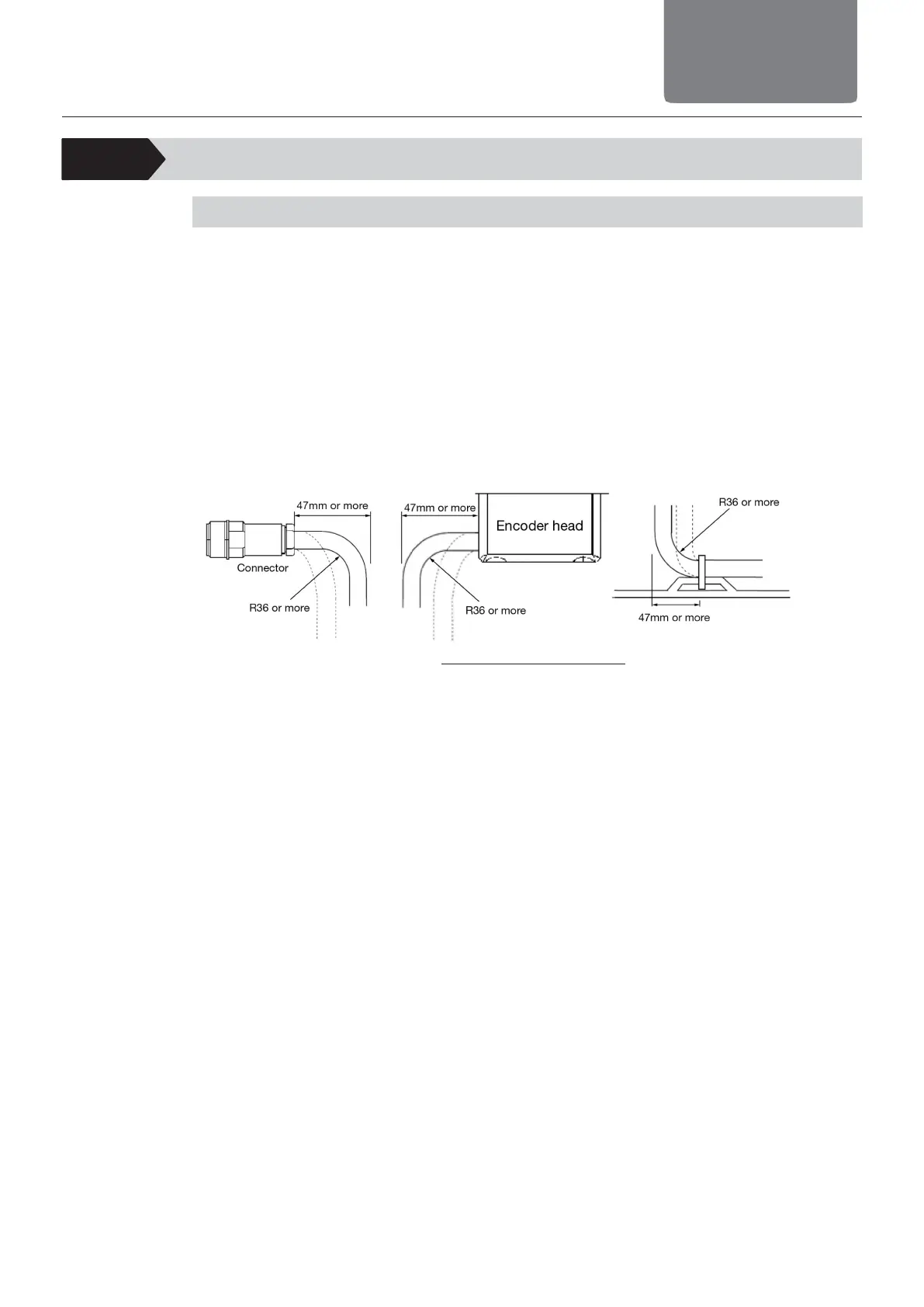

Fig. 7-2 Fixation of Cable
Cable condition shown with dotted lines in the figure above could cause earlier line breakage
of a cable.
Consider wiring in the way that the solid lines show.
