7. Cables and Wiring
7-1
Wiring

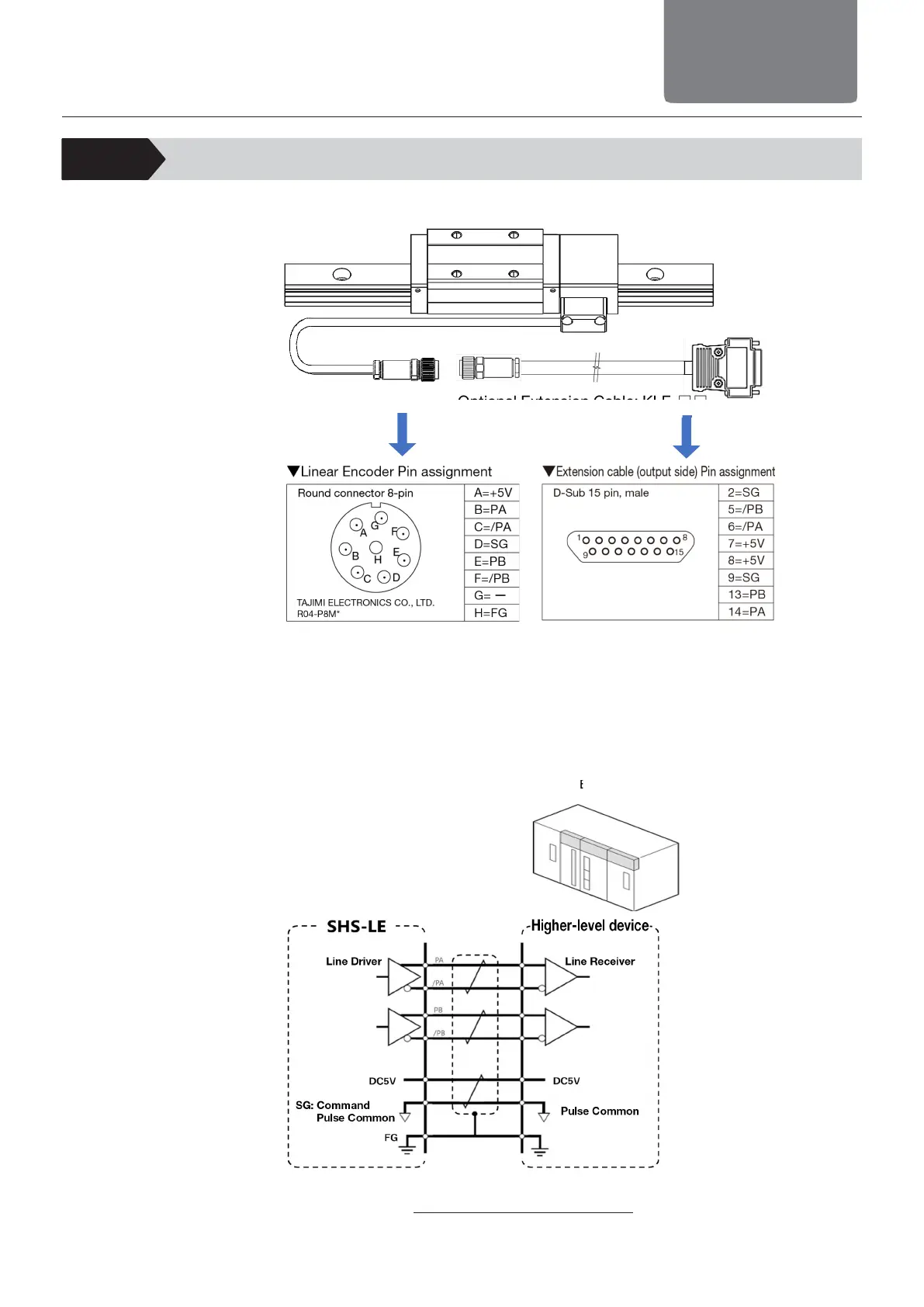

Fig. 7-1 Wiring Specifications
* Because R04-P8M is a discontinued
product it will be replaced with its next
generation model ER04-P8M as the
stock ends.
There should be no change to
appearance dimensions, pin assignments
and communication configurations.
* Make sure to connect the
connector hood as it works as
the frame grounding (FG).
SHS-LE
Optional Extension Cable: KLE-□□
Example) Counter,
digital display,
motor driver etc.
To be Prepared by User
Higher-level device
