thomann Millenium MPS-100 Assembly Instructions

Kick drum pedal and pad

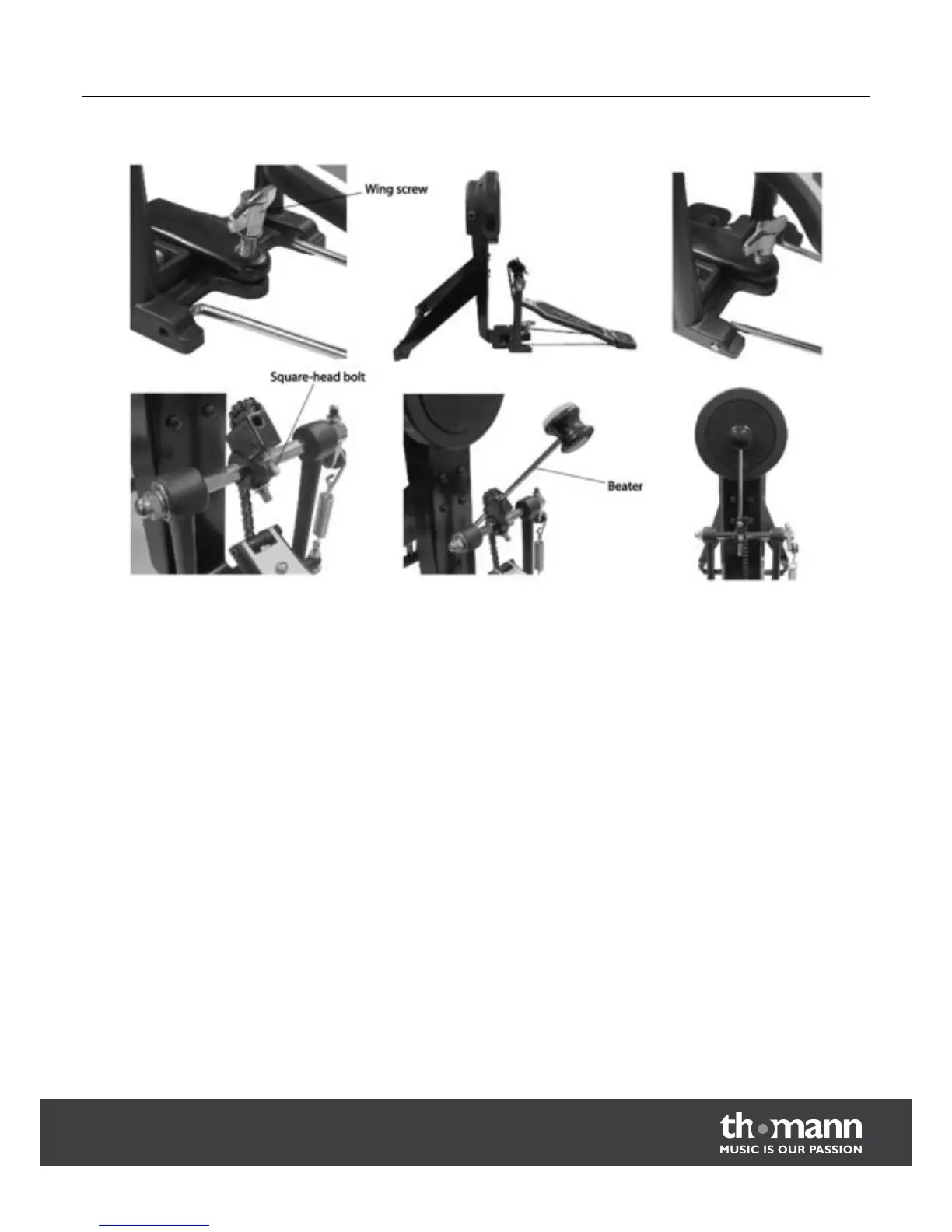

Snap the two metal rods into the holes provided on the frame of the kick drum pedal. Place the beater into the hole provided on
the rotary head of the pedal and tighten the terminal.
Attach the drum pedal with the two screws on the bass drum pad and attach the beater to the pedal (see figure).
Then mount the support device and place the bass drum pad centred under the rack. Position the pedal centred in front of the
pad.
Setting up and wiring
Set up the rack, the pads and the cymbals according to your needs. As a final step, all triggers need to be wired to the drum
module. Note the labelling on the drum module and the colour markings of each cable.
Assembly
MPS-100
11
