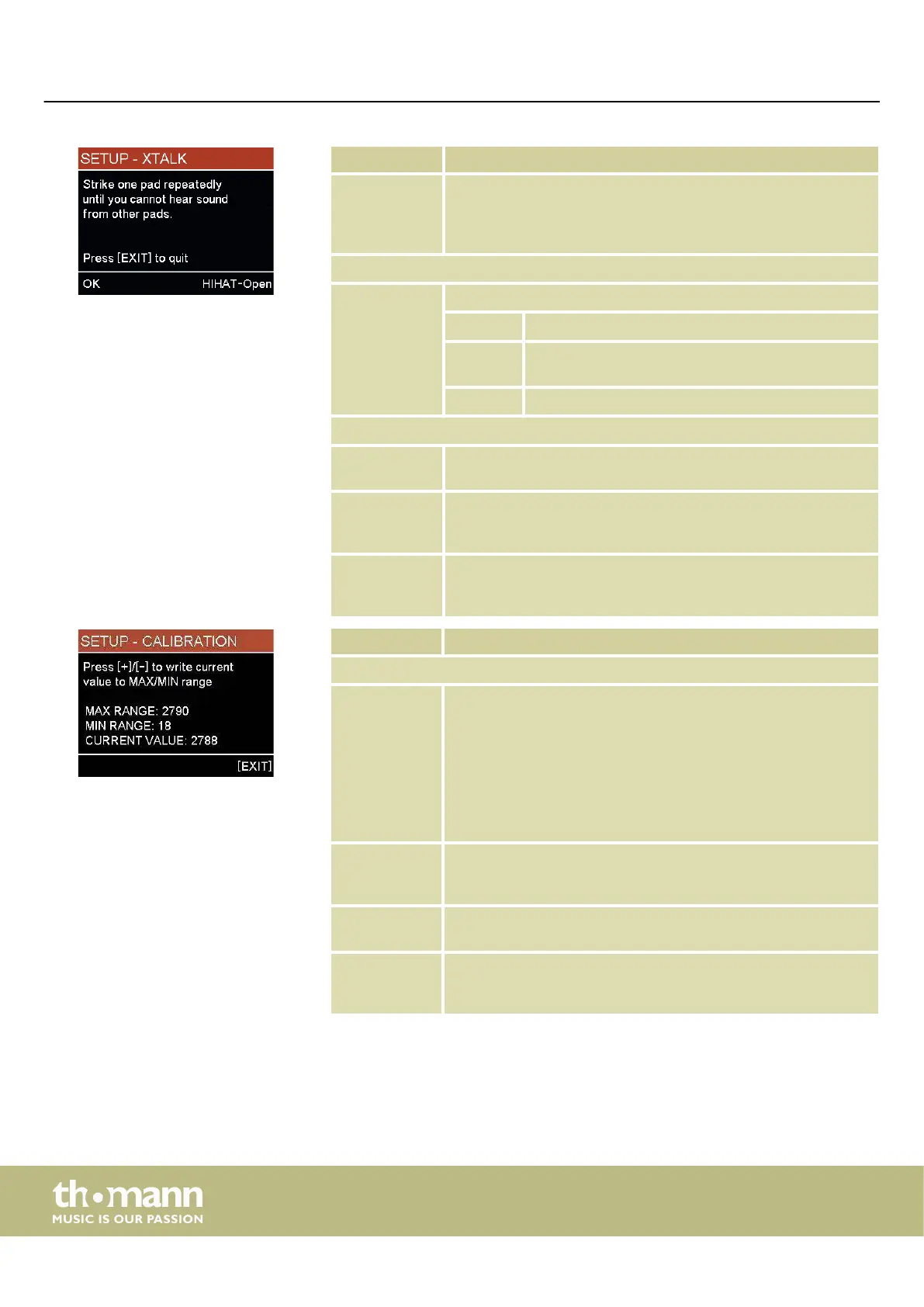

Parameter Function
‘XTALK’ Press [ENTER] to enter the crosstalk setting menu. Hit the selected
pad until no other pads can be heard or until ‘OK’ is shown in the
lower left corner of the display. This also automatically eliminates
the crosstalk from other pads. Press [EXIT] to exit the menu.
Parameters for an external pad only (EXT, EXT-Rim)
‘TRIGGER TYPE’ Type of external pad (factory setting: Mesh-Tom-Pad)
Mesh Double trigger mesh drum pad
Normal Normal non-mesh drum pad (without cymbals) and
single trigger pad
Cymbal Cymbal pad
Parameter only when Rim or Edge is selected
‘RIM VELOCITY’ Volume correction value. A positive value increases the volume, a
negative value decreases the volume.
‘RIM MODIFIER’ Rim compensation value Increase the value if the head is trig‐
gered while triggering the rim. Decrease the value if the rim is
triggered while triggering the head.
‘SPLIT POINT’ Setting the rim trigger response value of the snare. If you play the
Rim trigger of the snare softly you hear the Cross Stick sound.
Above the response value you hear the Rim Shot sound.
Parameter Function
Parameter only when Pedal Chick or Pedal Splash is selected
‘CALIBRATION’ Touch range of the hi-hat pedal. The set range is shown on the
display.
Press [ENTER] to enter the submenu. Press the pedal down to the
oor and press [–] to set the minimum. Release the pedal slowly
and press [+] to set the maximum. The value range is stored in the
module and allows a more precise strike. It is recommended not
to set extreme values to allow easy playing. Press [EXIT] to exit the
menu.
‘CHICK TIME’ Setting the time period how long after triggering the pedal no
other signal is accepted. This setting avoids unintentionally trig‐
gering caused by physical contact.
‘SPLASH TIME’ Setting the level of diculty for triggering the pedal splash. The
lower the value, the easier it is to hit.
‘PEDAL
VELOCITY’
Correction value for the volume of the hi-hat pedal. Increase the
value to make the pedal stroke louder (pedal chick and pedal
splash)
Operating
e-drum module
22
