What is MIDI
MIDI IN/OUT
Terminals
MIDI Connection
Connection rule
In midi connection, the equipment which controls another equipment is called Host Equipment.
Another equipment is called Affiliated Equipment.
The host equipment's MIDI OUT connect with affiliated equipment's MIDI IN.
Do not connect MIDI OUT with MIDI IN on the same equipment.

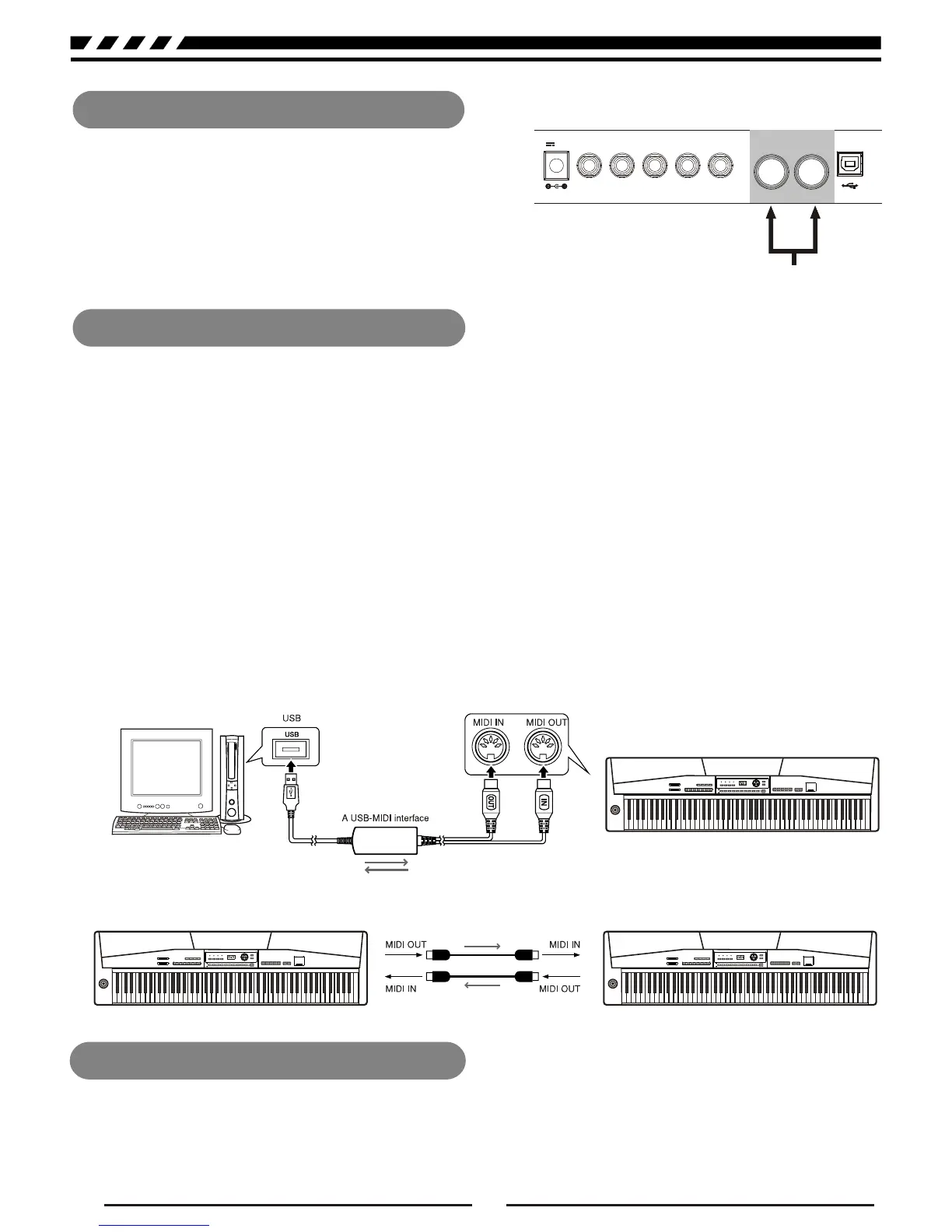

Sample Connection Method
Connect the MIDI interface with your PC.
The piano can control other equipments or electronic instruments.
Some equipments can be used to control the piano.
PC recorded data (MIDI) can be played on the piano.
Connect the MIDI interface with other digital music instruments.
Major Application
Musical Instrument Digital Interface. The standard
interface between PC and Electronic instrument.
It is equipped with standard MIDI interface, including 1
MIDI IN and 1 MIDI OUT.
Connection
It can connect with PC or other MIDI equipment.
MIDI IN
You can use a MIDI cable to connect the MIDI IN terminal of system to another MIDI OUT terminal of compatible MIDI
electronic instrument. Use MIDI IN, system can receive midi data such as note, program and touch etc. in order to be
handled by another MIDI instrument.
MIDI OUT
You can use a MIDI cable to connect the MIDI OUT terminal of system to another MIDI IN terminal of compatible MIDI
electronic instrument. Midi data of system can be sent by MIDI OUT, when a note is generated, the relative message will
be transmitted. System can control other midi instrument by sending program change messages
1¡
1¡
1¡
3¡
3¡
3¡
¡
2¡
2¡
2¡
¡
24
L/MONO
R
SOFTSUSTAIN
12V
AUX OUT
AUX IN PEDAL MIDI IN
MIDI OUT USB
