When an optional set of stereo headphones is
connected with the headphones jack 2, the sound from
speakers will switch off automatically resulting in only
the sound from headphone to be heard.
When jack 1 is connected with the stereo headphones,
the sound can be heard from both headphones and
speakers of the piano.
Headphones
Jack 1
Headphones
Jack 2
1¡
2¡
Headphones Jack
Never use the headphone with high volume, as it may hurt your sense of hearing.
To prevent the damage of the speakers, ensure that the volume is set to the minimum
level before connecting the power and other devices.
AUX OUT Jack
7

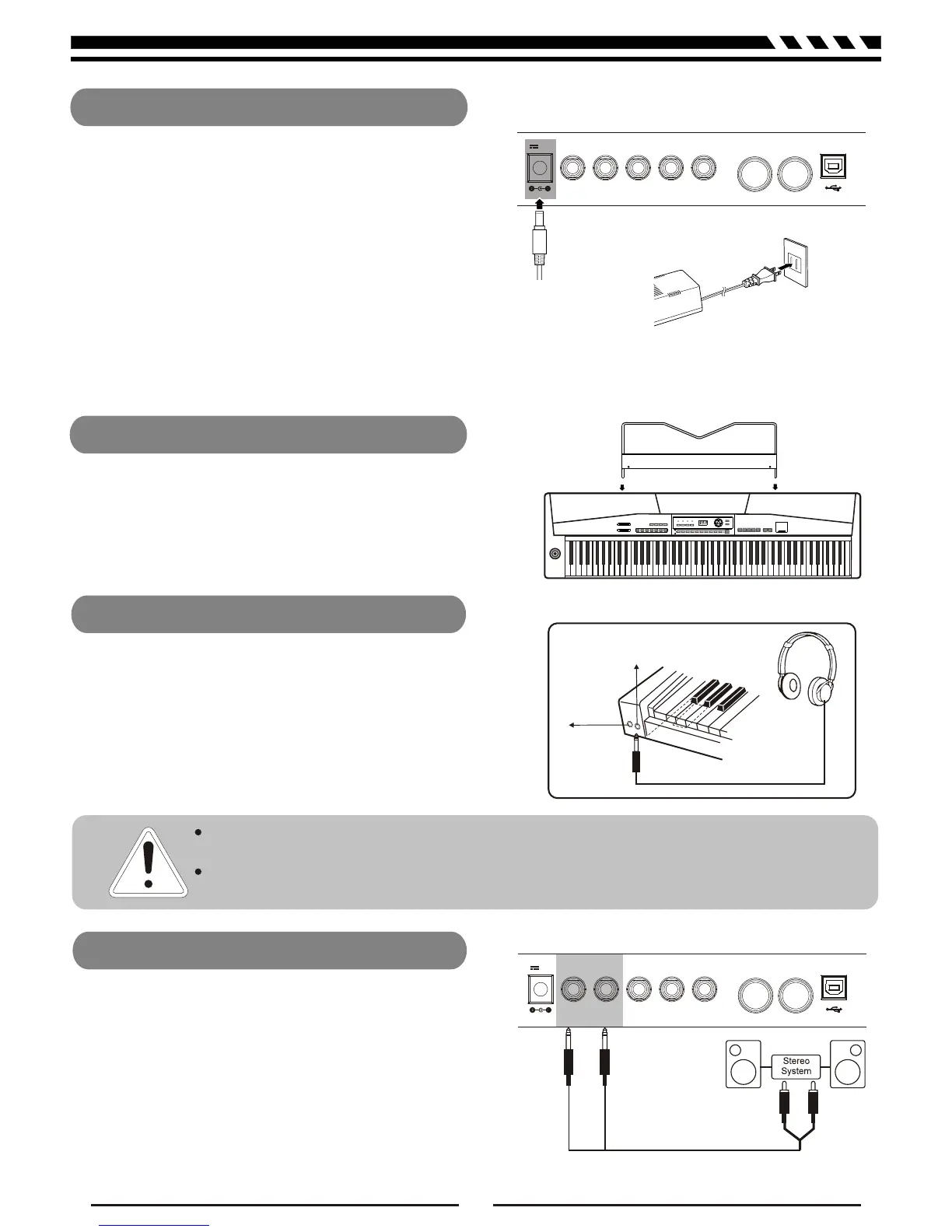

Power Jack
This piano can be powered from a standard household
wall outlet by using the specified AC adaptor.
The power jack is located on the rear panel of the piano
body.
Make sure that only the AC adaptor specified for this
piano is used.
The adaptor shall be 12V DC output, and center positive
type.Make sure to turn off the piano before you connect
the adaptor into the AC wall outlet and the cord into the
unit.
The piano is supplied with a music rest that can be
attached to the instrument by inserting it into slot at the
rear of the control panel.
Please set up the music rest as shown.
Cautions£
Use of another type of adaptor creates a danger of fire
and electrical shock.For safety sake, make sure to unplug
the AC adaptor from the wall outlet whenever leaving the
piano unattended for a long time or during a thunderstorm.
Setting Music Rest
To avoid damaging the speakers, please ensure that
volume has set to the minimum level before connecting
the power and other devices.
When you want to listen to the voice with an amplifier,
connect amplifiers to the AUX OUT L/MONO and R jacks
on the rear panel. The volume is adjusted with the
VOLUME button. (For monaural playback, use the L/
MONO jack. For stereo playback, connect both L/
MONO and R jacks.)
L/MONO
R
SOFTSUSTAIN
AUX OUT
AUX IN PEDAL MIDI IN
MIDI OUT
12V
USB
L/MONO
R
SOFTSUSTAIN
AUX OUT
AUX IN PEDAL MIDI IN
MIDI OUT
12V
USB
To Next Page
