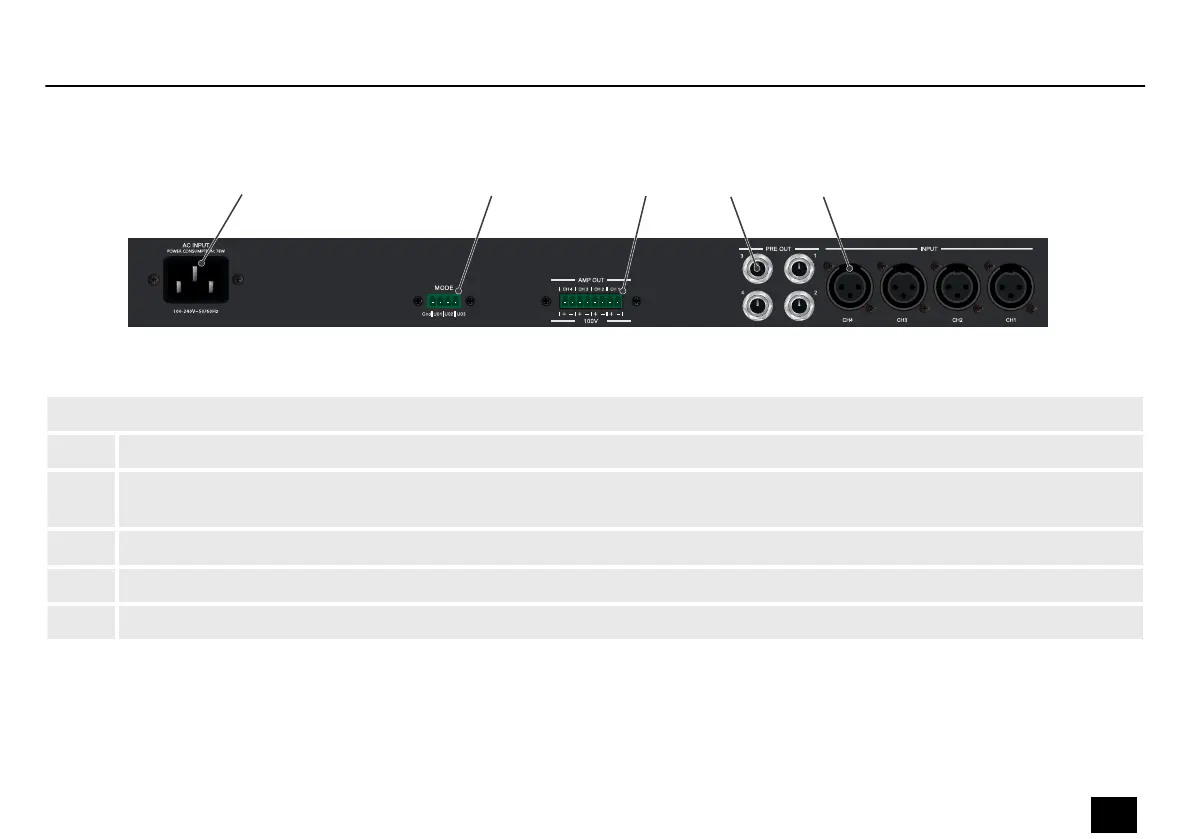

DSP 4×4 Amp100V
8 Connection for the power cable
9 [MODE] | Screw terminal strip for switching the presets. The relevant preset is called up through potential-free bridging of
pins [Gnd] and [U01]…[U03].
10 [AMP OUT] | 100 V outputs [CH 1]…[CH 4], designed as screw terminal strip
11 [PRE OUT] | Outputs [1]…[4], designed as 6.35 mm (1/4-inch) jack sockets (mono, balanced)
12 [INPUT] | Inputs [CH1]…[CH4], designed as XLR (mono, balanced)
Connections and controls
DSP 4x4 Amp 4.250, DSP 4x4 Amp100V
15
