Thomas 300 SUPER CUT - CHAPTER 4: Machine Dimensions - Transport - Installation - Dismantling; 4.5 Instructions for Electrical Connection

5
SUPER CUTSUPER CUT
SUPER CUTSUPER CUT
SUPER CUT
0° 90 75 100 x 65
45° DX - SX 80 70 80 x 60
0° 85 70 95 x 60
45° DX - SX 72 65 75 x 60
1050
1100
520
310
1000
1800 CON PIEDISTALLO
170
1080
1100
1800 CON PIEDISTALLO
TECHNICAL
CHARACTERISTICS

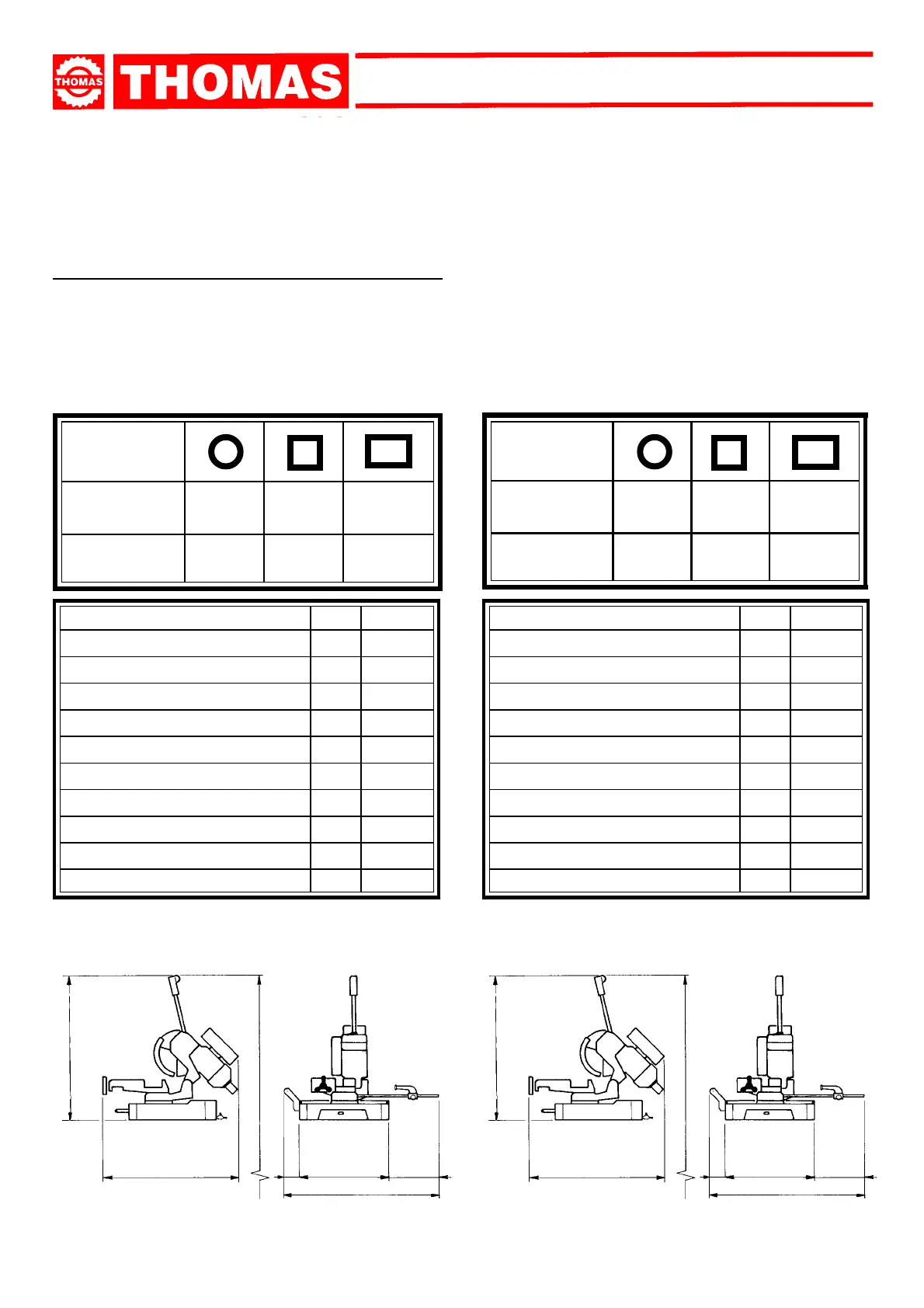

3.1 - Table of cutting capacity and technical details
3
275 SUPER CUT
300 SUPER CUT
2-speed three-phase electric motor KW 1,1 ÷ 1,5
1-speed single-phase electric motor KW 1,5
Max. electric absorption KW 1,55
Oil-bath reduction unit i 34 : 1
Max. blade diameter mm 275
Min. blade diameter mm 250
Blade rotation speed rpm 41 ÷ 82
Vice opening mm 120
Machine Weight KG 123
Coolant liquid L 5
Working table height with base mm 980
2-speed three-phase electric motor KW 1,2 ÷ 1,6
1-speed single-phase electric motor KW 1,5
Max. electric absorption KW 1,55
Oil-bath reduction unit i 34 : 1
Max. blade diameter mm 300
Min. blade diameter mm 250
Blade rotation speed rpm 41 ÷ 82
Vice opening mm 120
Machine Weight KG 125
Coolant liquid L 5
Working table height with base mm 980
520
310
1000
170
