Thomas T-617HDN - Compressor Parts List; Exploded View & Parts List

COMPRESSOR PARTS LIST
10

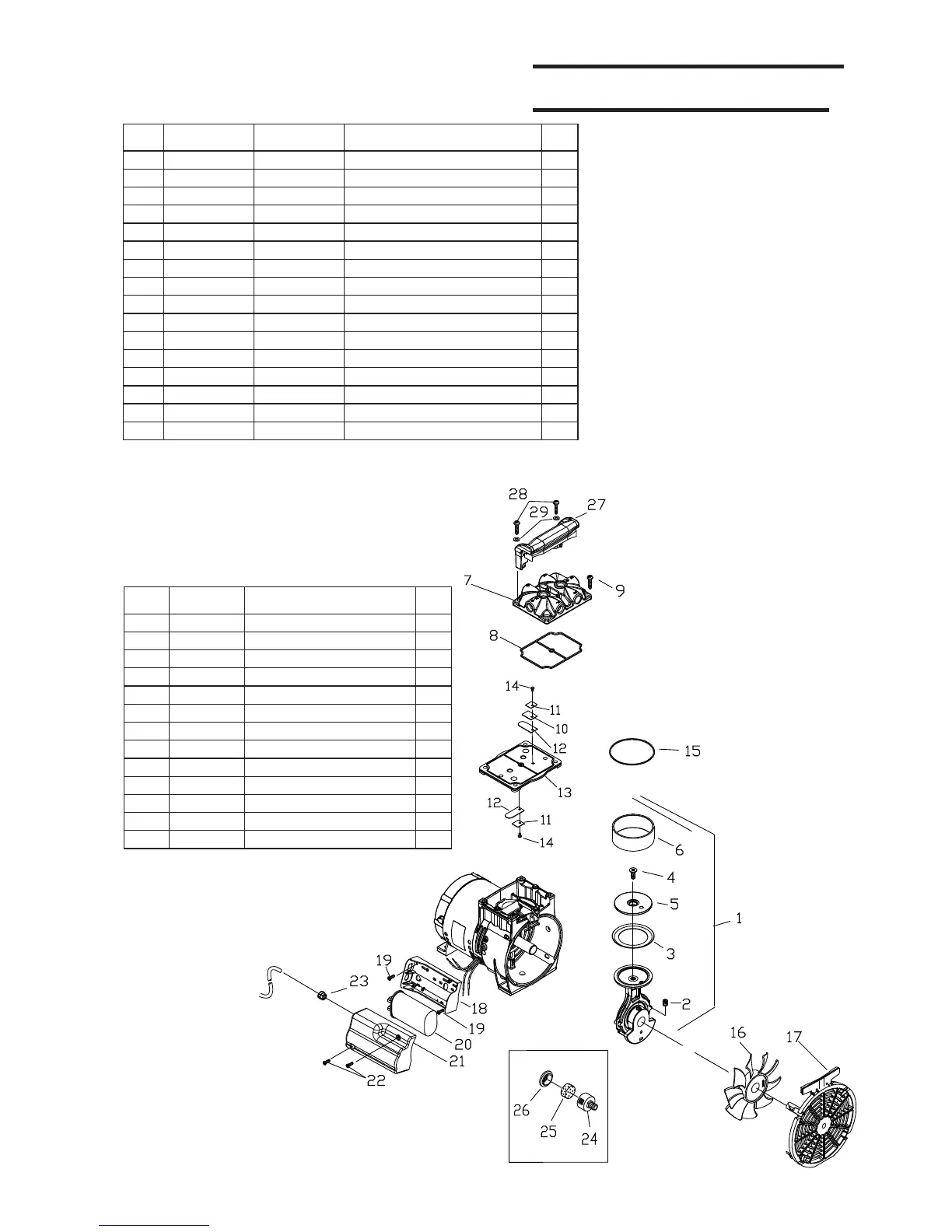

EXPLODED VIEW
AND PARTS LIST
Item
No.
Part No. Description Qty
17 647076 Fan Guard 1
18 603178 Capacitor Bracket 1
19 625434 Screw 8/16” x 3/8 Torx 2
20 603025 Capacitor 8mfd/450V 1
21 603167 Capacitor Cover 1
22 625449 Screw 8/32” x 3/8 Torx 2
23 633160 Strain Relief Bushing 1
24 660710 Filter Body 1
25 641034 Filter-Foam 1
26 660767 Filter-Body Cap 1
27 629081 Handle 1
28 625379 Screw-Handle 2
29 626014 Washer-Handle 2
Item
No.
Part No.
Component
Part
Description Qty
1 666459-S Conn. Rod Ass’y-Service 1
2* 625088 Eccentric Set Screw 1
3* 624396 Piston Cup 1
4 625180 Screw-Cup Retainer 1
5* 626397 Piston Cup Retainer 1
6* 670031 Cylinder Sleeve 1
7 610869-500 Head 1
8* 623143 O-Ring Head Gasket 1
9 625175 Screw-Head 4
10* 621647 Valve Backer 1
11* 617562 Valve Keeper Strip 2
12* 621485 Valve Flapper-Int. & Exh. 2
13 621632-540 Valve Plate 1
14* 625094 Screw-Valve Plate 2
15* 623071 O-ring-Valve Plate 1
16 638281 Fan-Black 1
